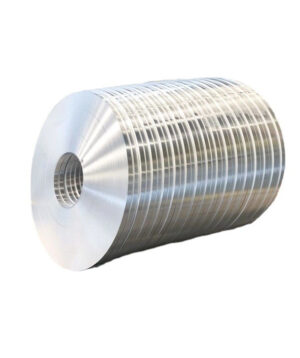

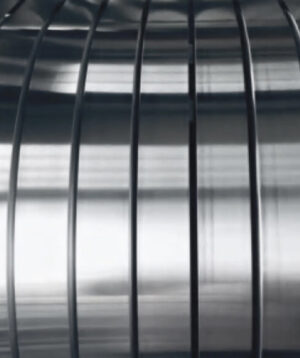

Aluminum foil is widely used in electrolytic capacitor material; Insulation materials for buildings, vehicles, ships, houses, etc.; It can also be used as decorative gold and silver thread
1.Material: aluminum
2.Color: Sliver
3.Form: roll,schistose
4.State:Hard foil, semi-hard foil and soft foil
Alloy No.
1060、1070
Application
low, medium, high voltage transformer
Thickness
0.1~3mm
Width
15~1650mm
Purity Cu
99.5~99.67%
Resistivity at 20℃
(Conductivity)
61%(%IACS)
Property
straight and flat strip…
The amorphous metal annealing furnace is used for annealing amorphous iron cores and nano-materials. The annealing furnace’s structural and functional requirements are as follows:
I. Basic Equipment Structure
This equipment consists of a furnace housing, heating system, insulation system, air blast system, and electrical control system.
II. Equipment Appearance
1. Based on user requirements: The effective inner dimensions of the furnace are 1600 x 1600 x 1800mm (D x W x H); the outer dimensions …

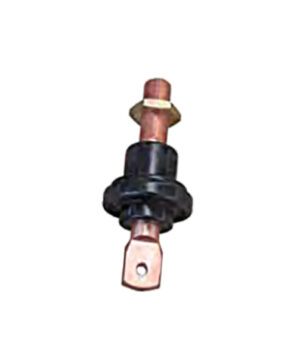

hzgiantway bushings have high application temperature. All hzgiantway made bushings have the working temperature range from-40~130ºC.It isvery important for the transformers which served in very cold area and very hot area. It is also very important especially to the solar/wind generation transformers which usually withstand heavy current in sunshine hot noon and suffer very cold weather in the cold night In those extreme environment, hzgiantway epoxy bushing had put up very good records.
hzgian…
Product Introduction:
This is a fully cured reinforced cellulose fiber / nitrile butadiene gasket material with excellent crush resistance at high flange pressures. This material has superior sealing properties with fuel, oil and water.This material has a short duration maximum temperature limit of 230oC (455F).Some common applications include automotive, small engine and compressor ,engine and transmission pan, water pump, and environmental sealing.
Features:
Excellent water and oil resistance,…
High quality gasket material sheets, composed of aramid, glass, in organic, or carbon fibers, NBR rubber as a binder and different fillers. Fiber gasket sheets with different chemical,thermal and mechanical resistance are made to endure at different loadings, even the most demanding conditions.
Features:
High resistance to seating stress.
Low creep relaxation.
Wide range of operating temperatures and pressures.
Resistance to an extensive range of chemical products.
Sealpilot NO.
Pressure
Tempera…
The transformer comprehensive test system, which is completely controlled by computer, is designed and produced by our company according to the test items and requirements proposed by the purchaser. It uses PLC as the control core and industrial control computer as the human-computer interaction interface. It is a special equipment that meets the requirements of routine transformer tests, partial type tests and special tests.
Technical requirements:
It can meet the test of power transformers wit…
Features:
1.The multi-frequency induced withstand voltage test device is mainly used for induced withstand voltage tests on transformers and instrument transformers. It can perform induced withstand voltage tests on the longitudinal insulation between turns, layers, sections, and phases of instrument transformers and transformer windings.
2.This device employs power electronics technology, with a frequency converter as its core component. It includes parameter presets, protection settings, frequ…
A silicon steel strip slitting line is a production and processing equipment that slits coiled silicon steel strip into strips of a specific width and then winds them into coils at a specific winding tension. It is widely used in metal sheet processing industries such as food, packaging, building materials, and electrical engineering.
Production Line Equipment Components:
1) Electric loading trolley;
2) Hydraulically expanding and retracting unwinder;
3) Buffer pit guide;
4) Material receiving d…
The precision automatic dielectric loss tester for insulating oil is used to measure the dielectric loss factor and DC resistivity of liquid insulating media such as insulating oil. It features an integrated structure, incorporating a dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high-resistance meter, and DC high-voltage source.
Features:
• Used for measuring the dielectric loss factor and DC resistivi…
