Can meet the oil-immersed transformers of 63000kva, 110kv and below
Can meet the dry-type transformers of 31500kva, 35kv and below
Can meet the mining transformers of 6300kva, 10kv and below
Special transformer (detailed capacity and voltage level must be provided when ordering)
Can customized
Test items:
Transformer winding resistance test
Transformer voltage ratio measurement and connection group number test
Transformer no-load current (%) and no-load loss test
Transformer short-circu…
1. Suitable for Cutting amorphous alloy with different widths of 140-213mm
2. The whole machine is designed in an integrated manner, with the electronic control system and main modules installed inside the machine body, and the operation screen installed on the left side in a rocker arm manner
3. Amorphous core online weighing technology
Production line function
The production line is used for automatic shearing and automatic stacking of amorphous alloys
Production line composition
It consists o…
Application
AM1L series earth leakage circuit breaker is one of the new type earth leakage breakerswhich has been developed by the company using international advanceddesign and manufacturing technology.Suitable for a line of AC50/60Hz,rated voltage up to 400V,rated current 16Ato 630A.and is acted asinfrequently changeover of circuit or infrequent starting of motor.The breaker has overload,short-circuit and undervoltage protective function,which can protect the circuit and the power equipment ag…
Three-phase pad-mounted transformers is oil-filled,three-phase,commercial pad mounteddistribution transformer specifically designed for outdoor installation on a concrete pad and provideunderground power distribution to commercial,industrial and institutional loads.It is availablein both livefront and dead front construction,for radial feed and loop feed applications,with or without taps,thetransformer uses aluminum or copper winding and is optimized to maximize efficiency and footprint.It hasma…
The high-voltage DC standard resistance divider is composed of precision high-voltage non-inductive resistors. Internally filled with high-grade insulating oil, it can be used as a DC high-voltage standard or directly paired with a dedicated display instrument to measure 10kV DC high voltage.
The DC voltage divider is a general-purpose high-voltage measuring instrument used in power systems, electrical and electronic equipment manufacturing departments to measure DC high voltage. The divider con…

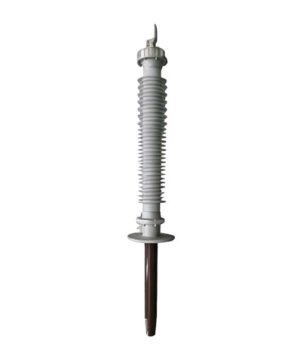

RIP bushing is an oil-free, resin-impregnated paper condenser bushing with excellent insulation,high safety, low maintenance, and reliable performance for high-voltage transformers.
Technical Standards
GB/T 4109 IEC 60137 Ed.6.0
Rated Voltage
72.5kV
252kV
363kV
550kV
Rated Current
630-3150A
1250-3150A
1250A
1250A
1-minute Power-Frequency Dry(Wet)withstand
155kV
505kV
625kV
750kV
Full Lightning Impulse Withstand Voltage
325kV
1050kV
1175kV
1675kV
tan8 at 1.05 Times the Maximum Phase Voltage
s0.00…
RIP bushing is an oil-free, resin-impregnated paper condenser bushing with excellent insulation,high safety, low maintenance, and reliable performance for high-voltage transformers.
Technical Standards
GB/T 4109 IEC 60137 Ed.6.0
Rated Voltage
72.5kV
126kV
252kV
550kV
Rated Current
630-3150A
630-3150A
1250-3150A
1600-2500A
1-minute Power-Frequency Dry(Wet)Withstand
155kV
255kV
505kV
750kV
Full Lightning Impulse Withstand Voltage
325kV
550kV
1050kV
1675kV
tanδ at 1.05 Times the Maximum Phase Volta…
Impulse Voltage Test System can produce a wide range of voltage and energy to simulate waveform such as lightning impulse, lighting chopped wave,switching impulse,to carry out impulse test for high voltage power equipment.When using steep device,it can make steep wave test for insulators(insulator string).
1. Spring pressure type for the connector,easy to plug when adjusting wave.
2. Unified connector is used for connecting rod of the main body,easy connection.
3. Optical fiber solated ethernet …
