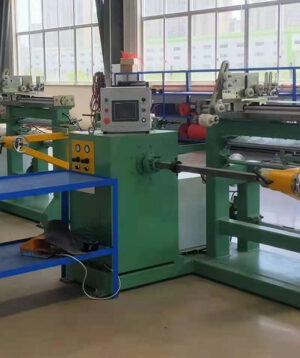

ZBR-600/800/1000/1200 High Pressure Wiring Machine
① Our high voltage wiring machine constantly puts forward various technical requirements in the case of customer use, our company constantly upgrading technology update, winding coil after unloading coil. Tailframe 90° rotation directly pull out, at present high voltage wire winding machine, at present in the transformer winding machine industry only Jiangxi Hongjun, 240 RPM, ￠0.2-￠4.0 electromagnetic wire all realized, in the winding of wire se…

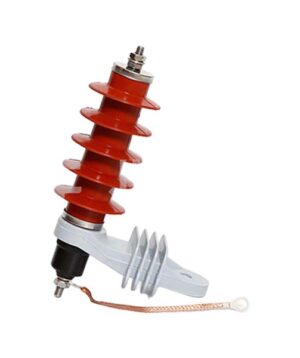

This zinc oxide surge arrester is used to protect transformers and electrical equipment from lightning surge and switching overvoltage. It features fast response, low leakage current, stable protection performance and reliable insulation strength. The product is suitable for power transformers, distribution transformers, compact substations, switchgear and power distribution systems.
Voltage class
Service scope
Virtual value of arrester rated voltage (kV)
Gapless arrester
Virtual value of contin…

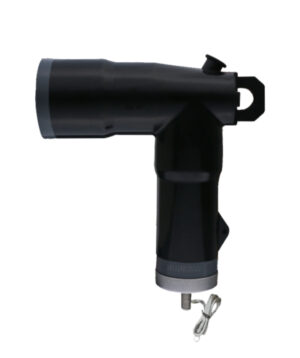

17/50kV elbow arrester is widely used in American distribution box transformer, branch box, buried transformer, switchgear and other equipment. The loaded plug-in interface effectively prolongs the service life of the equipment.
product structure：
Insulation
Outer semiconducting layer
Arrester core
Copper bottom cover
Ground wire
order number
Cable cross-sectional area/mm
2
Conductor diameter/mm
Cable insulation outer diameter/mm
NRZQ-YH5WS/Z-15/200-35
35
7.0-7.5
17.0-19.0
NRZQ-YH5WS/Z-15/200-5…

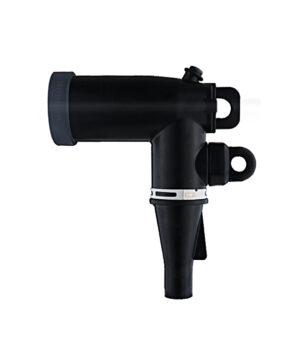

15kV / 200A elbow type cable connector is widely used in the connection of American box transformer, ring main cabinet, cable branch box, buried transformer and other electrical equipment. It is applicable to cross-linked polyethylene cables with 15kV cable section of 35mm
2
~ 150mm
2
.
product structure：
Operating ring
Insulation
Inner semiconductor layer
Voltage test point
Outer Semiconducting Layer
Arc suppression insertion rod
Crimping terminal
order number
Cable cross-sectional area/mm
…

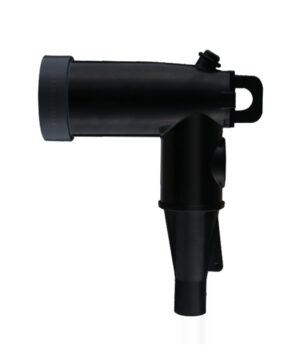

15kV/200A elbow PT connector is used to provide operating power supply for electric operating mechanism. It is applicable to the cable section of 35mm 2 . It is a fully shielded and fully sealed product. The plug connection is very simple, and there is a reliable anti loosening device.
product structure：
Operating ring
Insulation
Inner semiconducting layer
Voltage test point
Outer semiconducting layer
Arc suppression insert rod
Crimp terminal
order number
Cable cross-sectional area/mm²
Conduct…

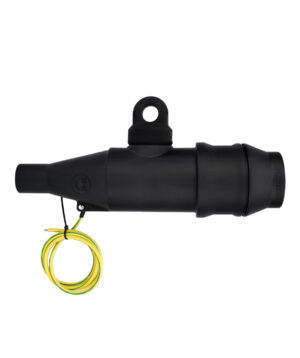

15kV 250A straight cable joint is applied to the connection of ring main cabinet and high-voltage outgoing cable.Applicable cable section: 35 ~ 150mm
2
.
product structure：
Conductive rod
Inner and Outer Semiconducting Layer
Insulating layer
Voltage test point
Crimping terminal
Grounding point
Annular groove
Stress release
order number
Cable cross-sectional area/mm²
Conductor diameter/mm
Cable insulation outer diameter/mm
NRZX-15/200-35
35
7.0-7.5
17.0-19.0
NRZX-15/200-50
50
8.0-8.5
18.0-20.0
…
