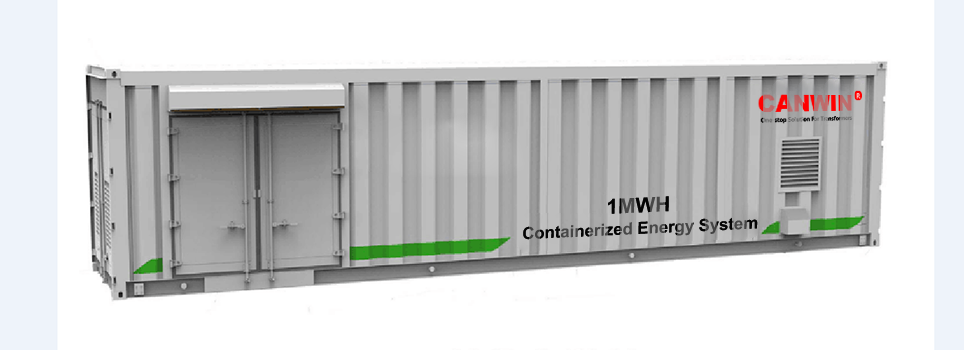

Description
| Operating Voltage Range | 675V~821V DC | |
| Maximum DC Power | 110KW | |
| Maximum DC Current | 163A | |
| AC Side | ||
| Rated Power | 100KW | |
| Rated Current | 144A | |
| Overload Capacity | 1.1times?(long-term operation) | |
| Maximum Total Harmonic Distortion | ??3%(at rated power) | |
| Rated Grid Voltage | AC400V(??3%) | |
| Rated Frequency | 50HZ | |
| Allowable Grid Frequency Range | 47~51.5HZ | |
| Power Factor | >0.99 | |
| Power Factor Adjustable Range | -1~1 Four-quadrant allowable | |
| Independent Inverter Voltage Range | 400V??3%(Three-phase four-wire) | |
| Independent Inverter Output Voltage Loss | ??3%(linear load) | |
| Maximum Efficiency | 97.3% | |
| Charge & Discharge Conversion Time | ??100ms | |
| Parallel Off Network Switching Time | 20ms | |
| General Parameters | ||
| Dimension(W??D??H) | 4877*2438*2650 mm | |
| Cooling System | Temperature controlled forced air cooling | |
| Fire Fighting System | HFC-227eaFire Extinguishing system | |
| Container Protection Class | IP54 | |
| Communication Interface | RS485, Ethernet, CAN | |
| Communication Protocol | Modbus RTU??Modbus TCP??IEC104 | |
| Human Computer Interaction(HCI)Mode | Local: touch screen, remote:clous management platform and, mobile terminal work | |
| Operating Ambient?Conditions?Relative Function & Grounding |
Temperature Range | -30??~60??(>55???De-rating is required) |
| Humidity | ??95%?? No Condensation No Corrosive Gas |
|
| Altitude | ??2000m | |
FAQ
1.What can we do for you ?
We can provide you with power transformer manufacturing equipment and technical services for you to create a strong competitive transformer factory. We can provide you with special transformer OEM/ODM services. Even if you do not have the ability to produce, you can also go to pick up your order. We can provide you with all the high quality raw materials you need for your transformer plant production. Of course, the price must be very attractive!
2.How many years have your company made this kind of equipment?
We have 20 years of marketing experience and a 200,000 square foot modern manufacturing center.
3.Which certificate do you have for your equipment?
We have owned 56 patents in fields of the international invention. ISO9001 / SO14001/ STL / ASTA / KEMA
4.Can you send your staff to install the equipment for us?
After – sales free to provide engineers on-site installation and debugging and professional technical training.Answer your technical or technical questions by phone or in writing.
5.Do you have any agent in our country?
CANWIN transform and upgrade traditional industries as an opportunity to deepen the ” one belt and one road” strategic layout, deepen cooperation with foreign markets. in the form of cooperation and mutual benefit, set up the transformer manufacturing center and core processing base in the Middle East, India. Dubai. Vietnam. Thailand. etc.In the future, CANWIN will move towards the direction of intelligent equipment leader, making China a global reputation!
