Electrical composite polyester film is composite polyester film is mainly used as the insulator between high-low voltage coils in the dry type transformers, and can also be used as turn or backing insulating in the motor or other high voltage electrical equipment.
Tecommended width:
1000mm??1200mm??1400mm??1500mm,Tailor-made width is available.
Storage
The product should be stored in dry,clean and well-ventilated warehouse under 30??.The fire,heat sources and direct sunshine should be avoided.
No.
P…
Electrical AFA insulation paper is composited by insulation paper EM film.Then coated with the special modified epoxy resin in diamond shape,solidified to phase Bto be the High mechanical strength new material diamond dotted AFA insulating paper.It’s widely used in wind power inverter,solar inverter, transformer of 35kV and below.
Product Solidification Conditions
First of all,to cure under ttemperature 90???5Cfor 3 hours,and then risetemperature to 125???5Cand keep 6 hour…
Electrical insulating crepe paper is wet lapped the 100%sulfate wood pulp,then wrinkle the base insulating paper which hasn’t dried.The electrical insulating paper is flexible,with high elongation and high oil absorption properties.It’s widely used as turn insulation,CTC and layer insulation in transformers,reactors and mutual inductors.
Recommended width:
700mm??1100mm;we can also slit it to be belts .Tailor-made by customers’requirements is available.
Storage
The product should be stored in dry…
The base paper of thermal DDP is the highly polymerized(DP value)cellulose paper produced from the nitrogenous Finland insulating wood pulp,and diamond coated with special modified epoxy resin on the surface,then cured by phase B.So the thermal DDP has good heat stability,mechanical and electrical properties.It is mainly used for natural ester new energy such as high ignition point vegetable oil and high overload oil-immersed transformers.
Product Solidification Conditions
Electrical heat-resisant Grade Creped Insulation Paper is wet lapped the 100% sulfate wood pulp after nitriding,then wrinkled paper.After nitriding,the thermal stability temperature of the fiber can reaches 130??.The electrical insulating paper is flexible,with high elongation and highoil absorption properties.It’s widely used as turn insulation,CTC and layer insulation in transformers,reactors and mutual inductors.
Storage
The product should be stored in dry,clean and well-ventilated warehouse,t…
Product Introduction:
We fabricate electrical insulators, such as; gaskets, seals, washers, strips, and custom designed intricate shapes. Electrical insulation materials are available in a broad range of thicknesses, hardness, densities and colour. Most insulating materials are available with or without pressure sensitive adhesive (PSA) backing.
Features:
Fish paper is extremely durable and commonly used for electrical insulation. It is typically die cut to create unique components for specific …
The base paper of this product is a high-strength insulating paper made of Finland’s unique insulating pulp with high softness and toughness through super calender process.,and diamond coated with special modified epoxy resin on the surface,then cured by phase B.It is mainly used for trapezoidal insulation of oil-immersed transformer high voltage coil wound by high speed automatic winding machine.
First of all,to cure under temperature 90???5
??
for 3 hours,and then rise temperature to 125???5
??
an…
Electrical Semiconductor creped insulation paper is a new kind of special shielding material.Mainly used for high voltage transformer,new energy transformer lead wrapping,interlayer insulation foil winding,ultra high voltage power cable,high voltage electrical equipment lead and coil insulation wrapping.It can replace metallized paper and other surface type semiconductor materials.It has excellent wettability,lowconductivity,shielding static electricity,also can solving partial discharge and bal…
Electrical crepe paper tube is made of electrical insulation crepe paper.It’s used as insulating wrapping of naked wires in the oil immersed transformers.It has reliable flexibility.
Notes:
made by customers’requirements is available.
Storage??
The product should be stored in dry,clean and well-ventilated warehouse.The fire,heat sources and direct sunshine should be avoided.
No.
Name
Specification
Specification
1
Electrical crepe paper tube
??4mm*??8mm
1000mm
2
Electrical crepe paper tube
??6mm*??8mm…

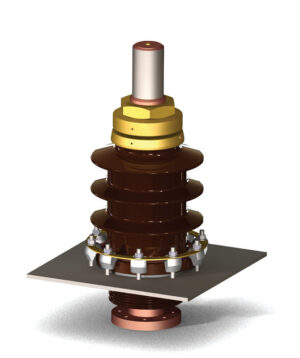

12-36kV 5000A 8000A Porcelain Bushing
The Threaded Bushings for voltage of 12-36kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. …
EN 1kV 1000A 1250A Bushing
The Threaded Bushings for voltage of 1kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
Low-voltage transformers with separate leads normally have solid porcelain bushings. These bushings consist of high-grade porcelain cylinders through which the connections pass. The outside surface may be plain or have a series of corrugations or s…
