The transformer comprehensive test system, which is completely controlled by computer, is designed and produced by our company according to the test items and requirements proposed by the purchaser. It uses PLC as the control core and industrial control computer as the human-computer interaction interface. It is a special equipment that meets the requirements of routine transformer tests, partial type tests and special tests.
Technical requirements:
It can meet the test of power transformers wit…

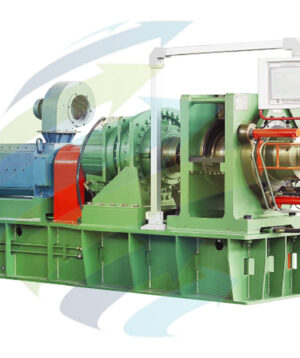

Copper Aluminum Continuous Extruding Production Line
This production line is composed of pay-off stand for copper rods,straightener,continuous extruder,oxidation preventive cooling system,spooling machine and electrical controlling unit.Use pure copper rod without oxygen produced with pulling method as stock,different kinds of copper alloy rod can be used also.Copper rod cleaning system can not be used when the surface of the copper rod is clean.The stock wire is first given out from pay-off sta…
Application:

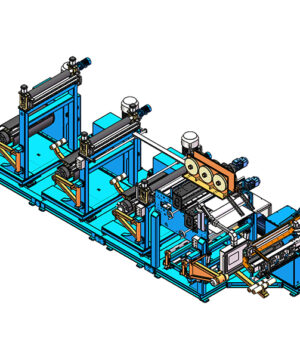

BRJ-1200-3 digital foil winding machine is a special production equipment for winding low voltage foil coils for dry and oil transformers.
Features:
The equipment uses compressed air and a large number of cylinders, the whole machine has no hydraulic system, no vulnerable and consumable parts, fewer failure points, reduced maintenance and repair costs, fewer mechanical adjustment points, improved production efficiency, no hydraulic pollution, and environmentally friendly.
Item
Param…

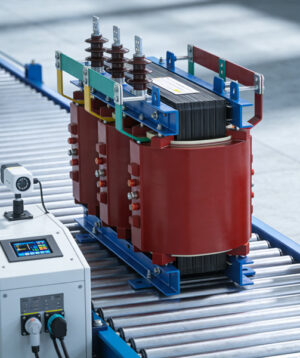

The conveyor belt within a transformer inspection system serves as the core transport component of an automated transformer inspection line. It is responsible for the smooth conveyance of transformers awaiting inspection-along with their associated testing fixtures-and acts as the critical link connecting various inspection stations (such as those for insulation, performance characteristics, and visual appearance).Consequently, it directly impacts inspection efficiency, measurement accuracy, and…

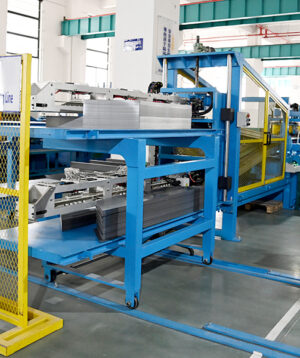

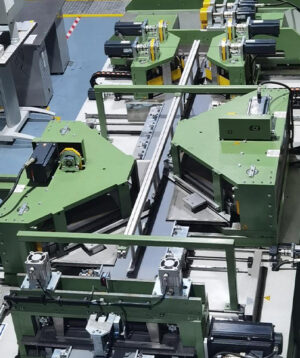

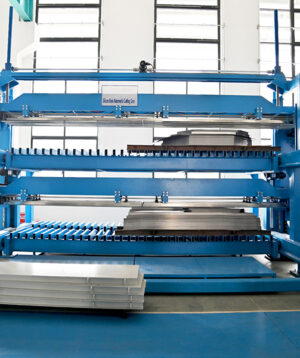

The shear-to-length line is a fully electric shearing line that can process the side pieces, yoke pieces and center column pieces of the transformer core safely, efficiently and accurately.
item
XE-X-300
XE-X-400
X-X-600
Cutting thickness (mm)
0.23-0.35
0.23-0.35
0.23-0.35
Cutting width (mm)
40-300
40-400
60-600
Cutting length (mm)
350-2500
350-2500
500-3500
Total motor power (kw)
10.5
10.5
12
The shear-to-length line is a fully electric shearing line that can process the side pieces, yoke pieces and center column pieces of the transformer core safely, efficiently and accurately.
item
XE-X-300
XE-X-400
X-X-600
Cutting thickness (mm)
0.23-0.35
0.23-0.35
0.23-0.35
Cutting width (mm)
40-300
40-400
60-600
Cutting length (mm)
350-2500
350-2500
500-3500
Total motor power (kw)
10.5
10.5
12
This cutting machine adopts all-steel welded structure, simple structure, easy operation, beautiful appearance, low energy consumption, suitable for processing and cutting in metallurgy, light industry, machinery, transformer and other industries. The high alloy tool knife has a durable blade.
Shearable plate thickness
Shearable plate width
Shearing angle (°)
Number of strokes
Motor power
Dimensions
Weight
2
1300
2°-14°
30
4
1670*690*980
449
1.5
1600
2°-14°
30
4
1970*690*980
496
2
2000
2°-14°
30…
The fully automatic power frequency withstand voltage tester is designed according to the latest national industry testing standards. It is safe, reliable, powerful, easy to use, and simple to maintain. It is primarily used to perform dielectric strength tests on various electrical products, components, and insulation materials at specified voltages. This ensures the insulation level of the products, identifies insulation defects, and measures overvoltage resistance. It is the preferred choice f…

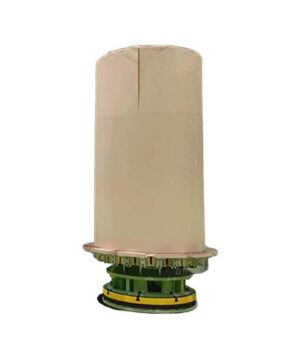

1.This machine is chuck elevation type (pit type), and the height of the winding coil can be arbitrarily adjusted according to the needs of the coil, the position of the operating platform is not changed, and
the operation is simple and convenient.
2.This machine is VF control speed, the speed start is smooth and the braking is reliable. The number of windings can be freely set, with a positive and reverse count and the power-off memory function. The pit cover can be freely expanded or shrunken …

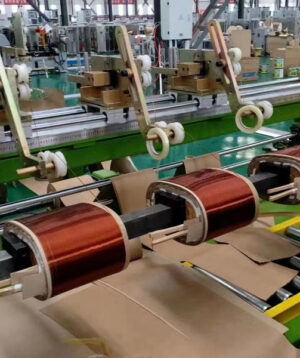

HJ-600-3 High Pressure Triple Cabling Machine
At the same time can be wound 3 coil of oil variable high pressure coil manufacturing, winding speed of 250 RPM, the main motor power of
7.5KW, coil radius of Φ350mm, wiring distance 600mm, and can meet the wire diameter in (Φ0.2- Φ3.5) enamelled copper or aluminum wire, (including flat wire 5*10) enamelled flat copper or aluminum wire, Paper film coated copper or aluminum flat wire with an area of 50 square meters or less, suitable for oil high pres…
