The amorphous metal annealing furnace is used for annealing amorphous iron cores and nano-materials. The annealing furnace’s structural and functional requirements are as follows:
I. Basic Equipment Structure
This equipment consists of a furnace housing, heating system, insulation system, air blast system, and electrical control system.
II. Equipment Appearance
1. Based on user requirements: The effective inner dimensions of the furnace are 1600 x 1600 x 1800mm (D x W x H); the outer dimensions …
The transformer comprehensive test system, which is completely controlled by computer, is designed and produced by our company according to the test items and requirements proposed by the purchaser. It uses PLC as the control core and industrial control computer as the human-computer interaction interface. It is a special equipment that meets the requirements of routine transformer tests, partial type tests and special tests.
Technical requirements:
It can meet the test of power transformers wit…
Features:
1.The multi-frequency induced withstand voltage test device is mainly used for induced withstand voltage tests on transformers and instrument transformers. It can perform induced withstand voltage tests on the longitudinal insulation between turns, layers, sections, and phases of instrument transformers and transformer windings.
2.This device employs power electronics technology, with a frequency converter as its core component. It includes parameter presets, protection settings, frequ…

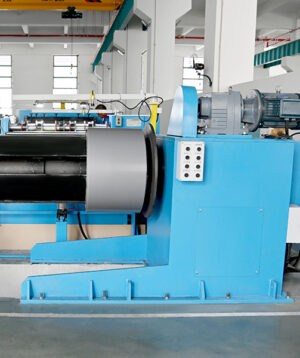

A silicon steel strip slitting line is a production and processing equipment that slits coiled silicon steel strip into strips of a specific width and then winds them into coils at a specific winding tension. It is widely used in metal sheet processing industries such as food, packaging, building materials, and electrical engineering.
Production Line Equipment Components:
1) Electric loading trolley;
2) Hydraulically expanding and retracting unwinder;
3) Buffer pit guide;
4) Material receiving d…

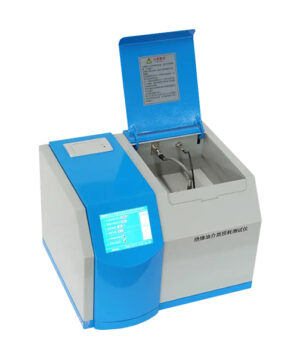

The precision automatic dielectric loss tester for insulating oil is used to measure the dielectric loss factor and DC resistivity of liquid insulating media such as insulating oil. It features an integrated structure, incorporating a dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high-resistance meter, and DC high-voltage source.
Features:
• Used for measuring the dielectric loss factor and DC resistivi…

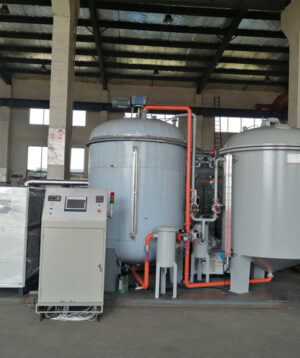

The original product in a vacuum,dipping,because the product itself has some flaws lead to non-vacuum impregnation or dipping completely,or linked to the uniformity of stain is not high,uneven product quality,for this particular situation,our company specially developed a vacuum pressure combined with the vacuum pressure dipping equipment,motors,chemical,manufacturing industry has been favorable comments.
Product dewatering performance is good;
Dipping completely uniform,aesthetic appearance;
Ea…

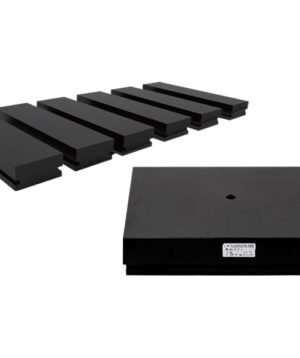

Characteristics
1.The surface of the spring is treated with Ed and paint, and the rust resistance is excellent. It has passed the salt spray test of ASTM B-117 and 8886.
2.
After heat treatment and stress elimination, the springs have good fatigue resistance.
3.The spring diameter is greater than 0.8 times of the height of the rated disturbance,and the maximum pressure under the spring compression is greater than 50% of the rated disturbance.
4.Internal use of seismic anti-vibration device, high…
Coil Curing Ovens: Our meticulously designed coil curing ovens are a culmination of innovation and precision, specifically designed for curing coils. They are critical components in industries such as aerospace, automotive parts, and shipbuilding. Our ovens provide uniform temperature distribution, ensuring flawless heating and curing of parts as they rotate. We offer customizable ovens in various sizes to meet your needs, with multiple ways to load and unload parts. Superior thermal insulation …
