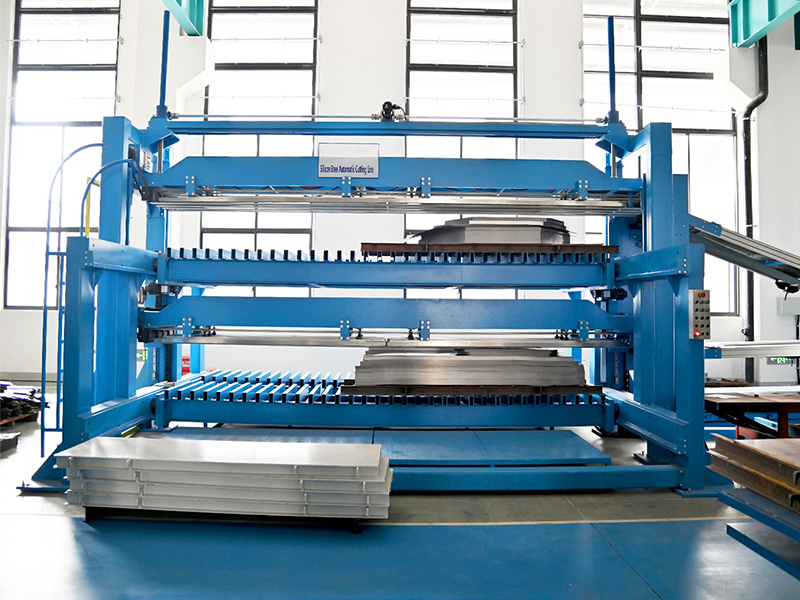

Cut to Length Line for Transformer Core

Cut to Length Line for Transformer Core

The shear-to-length line is a fully electric shearing line that can process the side pieces, yoke pieces and center column pieces of the transformer core safely, efficiently and accurately.
item
XE-X-300
XE-X-400
X-X-600
Cutting thickness (mm)
0.23-0.35
0.23-0.35
0.23-0.35
Cutting width (mm)
40-300
40-400
60-600
Cutting length (mm)
350-2500
350-2500
500-3500
Total motor power (kw)
10.5
10.5
12

Category:
SKU: CTLLF-109

Description

The shear-to-length line is a fully electric shearing line that can process the side pieces, yoke pieces and center column pieces of the transformer core safely, efficiently and accurately.

item XE-X-300 XE-X-400 X-X-600
Cutting thickness (mm) 0.23-0.35 0.23-0.35 0.23-0.35
Cutting width (mm) 40-300 40-400 60-600
Cutting length (mm) 350-2500 350-2500 500-3500
Total motor power (kw) 10.5 10.5 12
