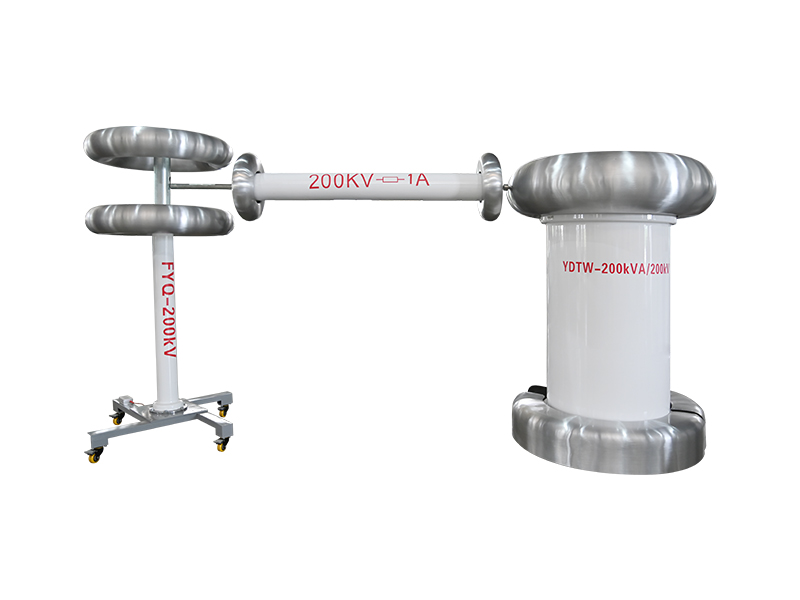

Full Automatic Transformer Power Frequency Withstang Voltage Test Equipment

SKU: FATPF-089

Description
Additional information

Description

The fully automatic power frequency withstand voltage tester is designed according to the latest national industry testing standards. It is safe, reliable, powerful, easy to use, and simple to maintain. It is primarily used to perform dielectric strength tests on various electrical products, components, and insulation materials at specified voltages. This ensures the insulation level of the products, identifies insulation defects, and measures overvoltage resistance. It is the preferred choice for power operation departments, electrical and appliance manufacturers, metallurgical, coal mining, electrified railway departments, scientific research institutions, and universities requiring withstand voltage testing equipment.

Alternative Names: Power Frequency Withstand Voltage Tester, AC Withstand Voltage Tester, Power Frequency Withstand Voltage Tester, Power Frequency Withstand Voltage Tester, Power Frequency Withstand Voltage Tester, Power Frequency Withstand Voltage Tester, Power Frequency Withstand Voltage Tester.

Power supply voltage	AC 220V/380V ±10%, 50Hz ±1Hz;
Insulation voltage	AC 100V/200V
Output voltage	AC 250V/450V
Output voltage	AC/DC 0-1000kV (customizable integrated AC/DC)
Output capacity	AC 3-1000kVA
Timer duration	0-9999 seconds
Insulation medium	Oil-immersed/air-filled/dry/partial discharge-free
Note: The capacity, voltage level and insulation medium of the entire test system can be customized according to the actual requirements of the customer;
