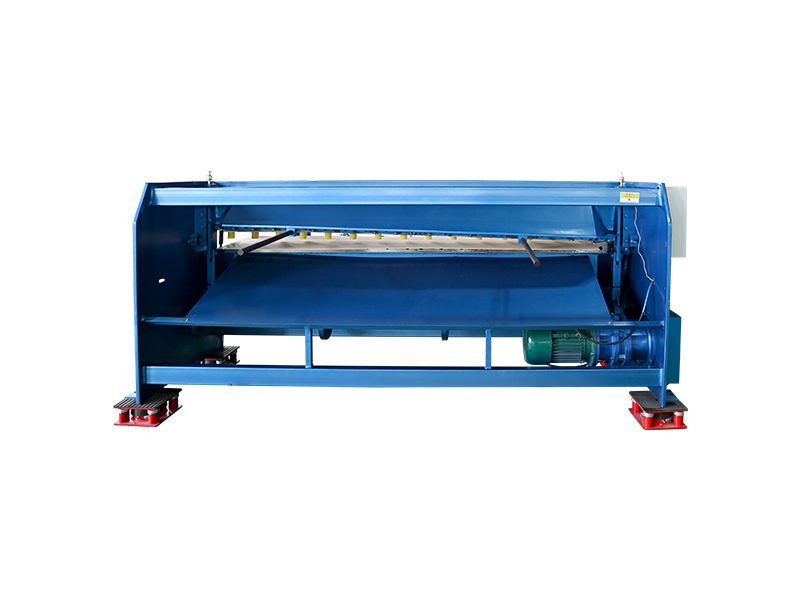

Electric Controlled Precision Cutting Machine

This cutting machine adopts all-steel welded structure, simple structure, easy operation, beautiful appearance, low energy consumption, suitable for processing and cutting in metallurgy, light industry, machinery, transformer and other industries. The high alloy tool knife has a durable blade.
Shearable plate thickness
Shearable plate width
Shearing angle (°)
Number of strokes
Motor power
Dimensions
Weight
2
1300
2°-14°
30
4
1670*690*980
449
1.5
1600
2°-14°
30
4
1970*690*980
496
2
2000
2°-14°
30…

Category: Transformer Active Part

SKU: ECPCM-102

Description
Additional information

Description

xq_01

Shearable plate thickness	Shearable plate width	Shearing angle (°)	Number of strokes	Motor power	Dimensions	Weight
2	1300	2°-14°	30	4	1670690980	449
1.5	1600	2°-14°	30	4	1970690980	496
2	2000	2°-14°	30	4	2320690980	566
1	2500	2°-14°	30	4	2850690980	640

xq_04
