Description

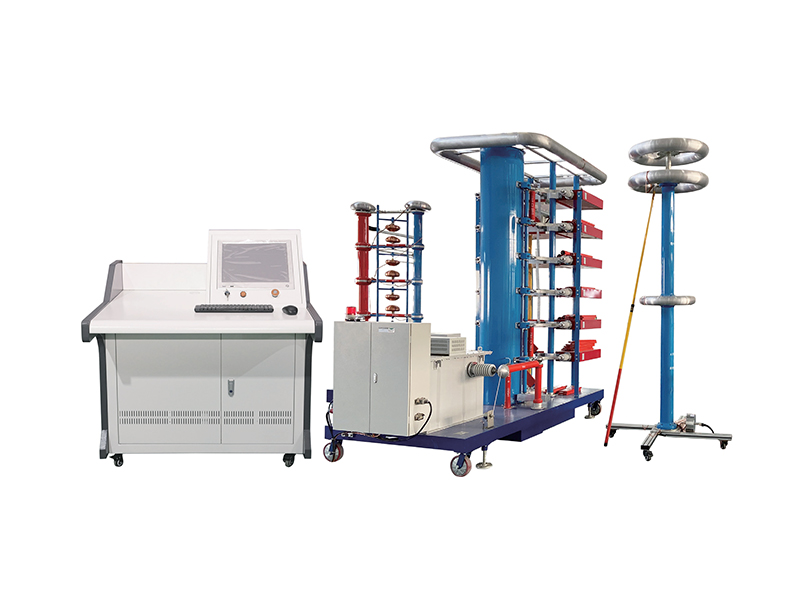

Impulse Voltage Test System can produce a wide range of voltage and energy to simulate waveform such as lightning impulse, lighting chopped wave,switching impulse,to carry out impulse test for high voltage power equipment.When using steep device,it can make steep wave test for insulators(insulator string).
1. Spring pressure type for the connector,easy to plug when adjusting wave.
2. Unified connector is used for connecting rod of the main body,easy connection.
3. Optical fiber solated ethernet port communication between the computer control system and the main body.
4. Full wave and chopped wave are electronic circuit,to adjust delaying ignition triggering.
5. Trigger mode of three-gaps ball discharge,to ensure the reliability of the trigger.
6. Plate structure for adjustable wave resistor, non-inductive winding.
| Impulse voltage | 100kV-7200kV |
| Standard lightning wave | 1.2±30%/50±20%μS |
| Peak oscillation | <5% |
| Standard switching wave | 250±20%/2500±60%μS |
| Wave front time of oscillating lightning wave | ≤15μS |
| Wave front time of oscillating switching wave and front time of oscillating switching impulse wave |
15μS-1mS |
| Min.output voltage | ≥10%Un |
| Charging voltage instability | <±1% |
| Synchronizing range | ≥20% |
| Synchronous discharge error rate | <2% |
| gnition range | 10%~100% |
| Working time | ≥70%Un Discontinuous work(charge-discharge 300s/time) <70%Un Continuous work(charge-discharge 120s/time) |
| Generator efficiency:lightning wave(no load) | ≥90% |
| Chopping time | 2~5μS |
