Description

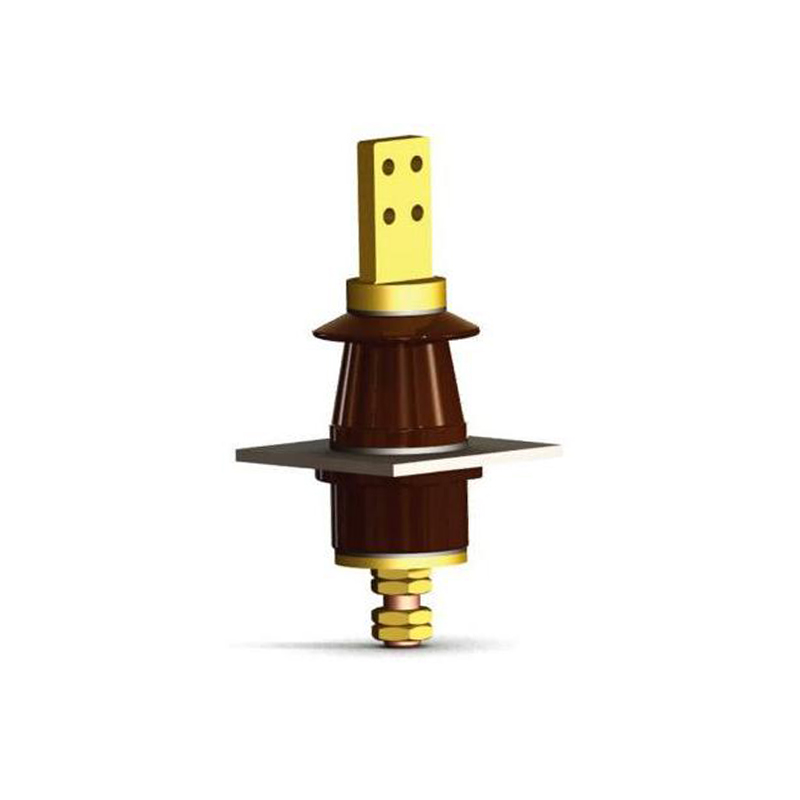

The Threaded Bushings for voltage of 3kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The barriers and spacers are enclosed in a skirted porcelain shell that is filled with oil. Condenser bushings are similar except that the central rod is wound with alternating layers of insulation and foil. This results in a path from the conductor to the case consisting of a series of condensers. The layers are designed to provide an approximately equal voltage drop between each condenser. In some condenser bushings, the whole bushing is enclosed in a skirted porcelain shell. Other types have only the exposed part of the bushing enclosed in the porcelain shell.
1.Material: porcelain insulator
2.Glaze color: Brown
3.Rated voltage: 3KV
4.Rated current: 1600A
5.Standard: BS
Our Advantage
* High voltage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched

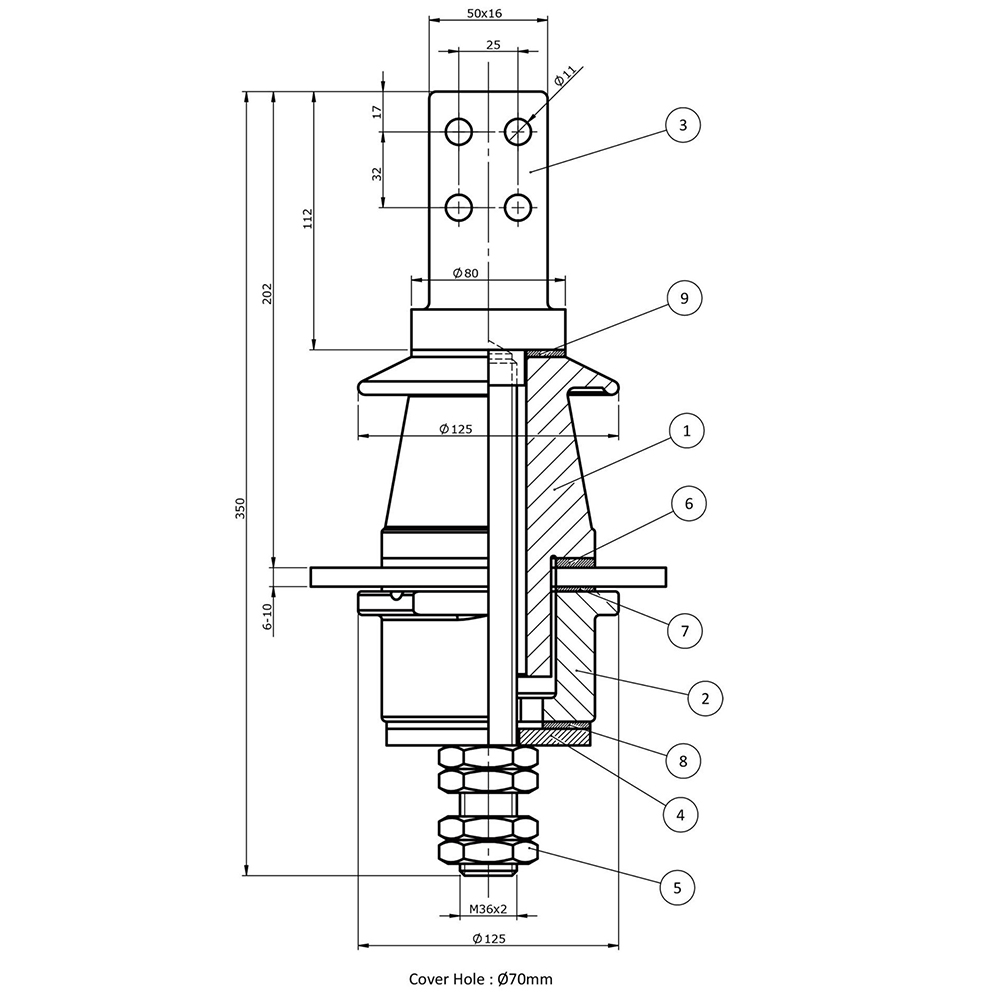

| Pos.
No. |
Description | Material | Pcs. |
| 1 | porcelain A(A-2000 DIN 42539) | C110 | 1 |
| 2 | porcelain B(B-200042539) | C110 | 1 |
| 3 | Flag | CuZn40Pb2 | 1 |
| 4 | Stem | Cu-ETP | 1 |
| 5 | Brass Washer E | CuZn40Pb2 | 1 |
| 6 | Brass Nut M36 DIN 936 | CuZn40Pb2 | 4 |
| 7 | Flange Gasket N(DT 2000 DIN 42539) | NBR | 1 |
| 8 | Internal Gasket O(DT 2000 DIN 42539 | NBR | 1 |
| 9 | Internal Gasket P(DT 2000 DIN 42539) | NBR | 1 |
| 10 | Plain Gasket M(DT 2000 DIN 42539) | NBR | 1 |
