This plug-in bushing can be used as a fixed section for the entry of medium voltage on switch gears or transformers.
Indoors for vertical or horizontal mounting; outdoors both with and without tension making use of the fitting rubber connector, for vertical or horizontal mounting.
Product name
Rated voltag
Rated current
JYTG-35/630
35KV
630A

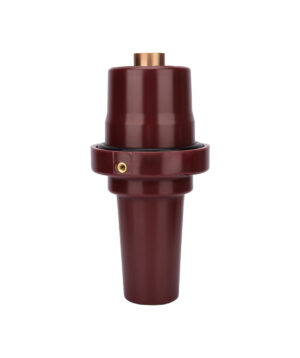

The combination of the bushing well and bushing insert perform the same function as a one piece integral loadbreak bushing, while providing the flexibility to change the bushing insert in the field, without taking the transformer or other apparatus out of service. The bushing insert and loadbreak elbows are the primary components in all ANSI/IEEE loadbreak connections. No special tools are required for installation. The bushing insert can be installed by hand or with the assistance of a torque t…
Under Oil MOV Surge Arrester
The under oil MOV arrester is designed in accordance with IEEE Std C62.1, and for either horizontal or vertical mounting inside the distribution transformer tank to eliminate the
difficulties associated with externally mounted arresters.
When placed under oil the MOV arrester benefits from the cooling effect of the circulating oil. In addition, under-oil mounting of the arrester eliminates the possibility of shortened arrester life due to high surface contamination,…

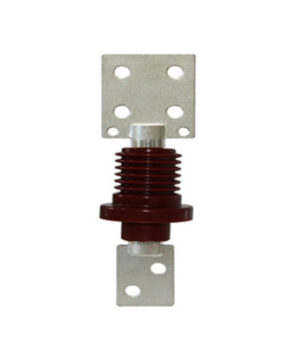

Dry Type Resin Bushing
The transformer bushing is the main insulating device outside the transformer box.The lead wire of the transformer winding must pass through the insulating bushing to insulate the leadwire and between the lead wire and the transformer housing,and at the same time play the role of fixing the lead wire.There are different types of casing according to different voltage levels.The company’s main resin dry casing is widely used in American box transformers,new energy wind power…
Impulse Voltage Test System can produce a wide range of voltage and energy to simulate waveform such as lightning impulse, lightning chopped wave,switching impulse,to carry out impulse test for high voltage power equipment.When using steep device,it can make steep wave test for insulators(insulator string).
1. Spring pressure type for the connector, easy to plug when adjusting wave.
2. Unified connector is used for connecting rod of the main body, easy connection.
3. Optical fiber isolated ether…

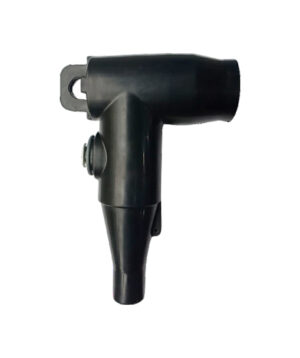

24kV/250A elbow cable connector can be installed horizontally and reduce the bending radius of current.Applicable cable section is between 35 mm
2
to 150mm
2
.
product structure：
Stud bolt
Inner and Outer Semiconducting Layer
Insulating layer
Voltage test point
Crimping terminal
Grounding point
Stress cone
order number
Cable cross-sectional area/mm
2
Conductor diameter/mm
Cable insulation outer diameter/mm
NRZT-15/200-35
35
7.0-7.5
17.0-19.0
NRZT-15/200-50
50
8.0-8.5
18.0-20.0
NRZT-15/200-70
70…

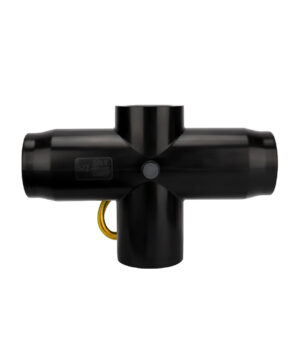

Bus-bar Connector is widely applicable for the combined connection of ring main units (RMU), gas insulated switchgear (GIS) to supply more branches for expansion, which electrically insulate and mechanically seal the connecting busbar and switchgear.
The interface designed to comply with EN 50180 / EN 50181 interface type C and HD 629.1, IEC 60502.4, GB/T 12706.4 etc.
Product name
Rated voltage
Rated current
Bus Cross Connector
20(24)KV
630A
