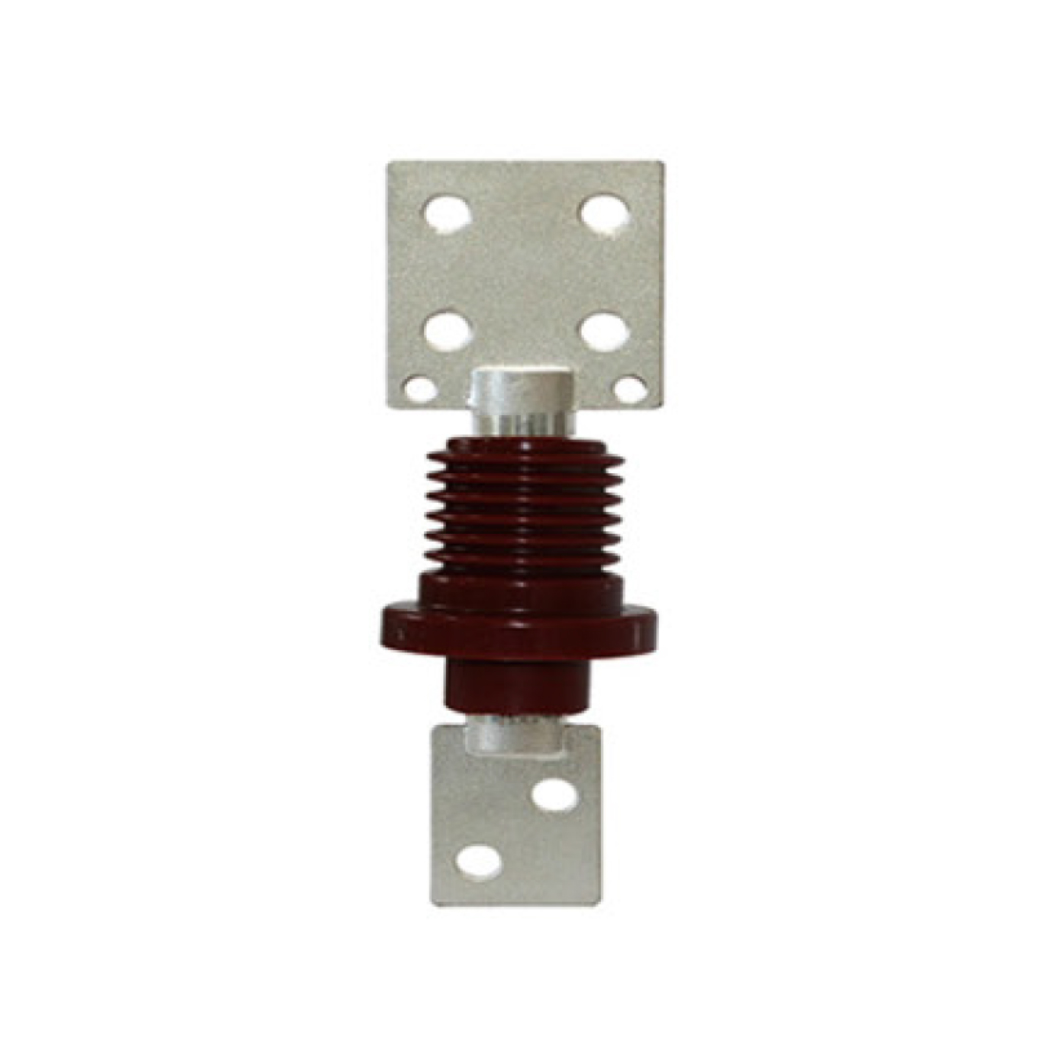

1kV 3kV 630A-5000A ANSI Dry Type Resin Bushing Shovel Connection

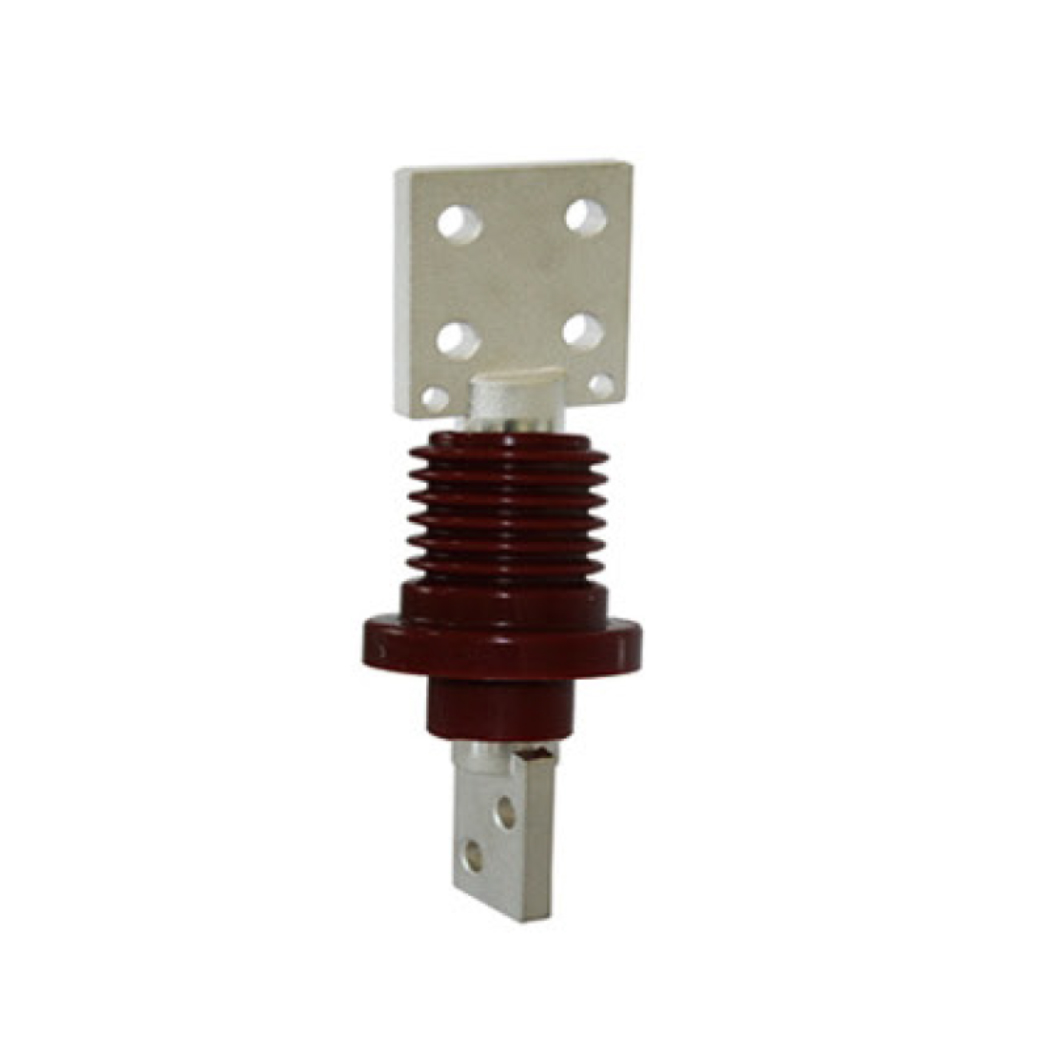

1kV 3kV 630A-5000A ANSI Dry Type Resin Bushing Shovel Connection - 图片 2

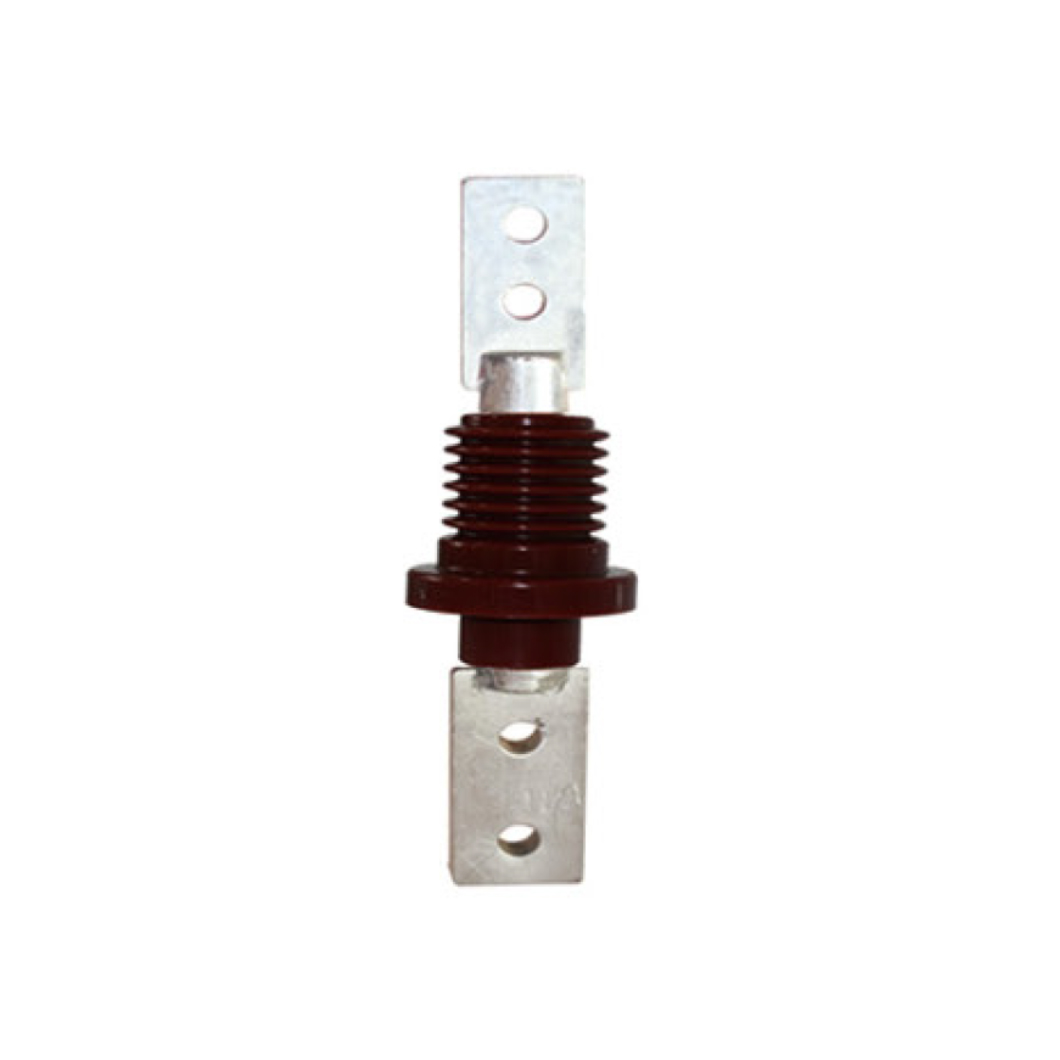

1kV 3kV 630A-5000A ANSI Dry Type Resin Bushing Shovel Connection - 图片 3

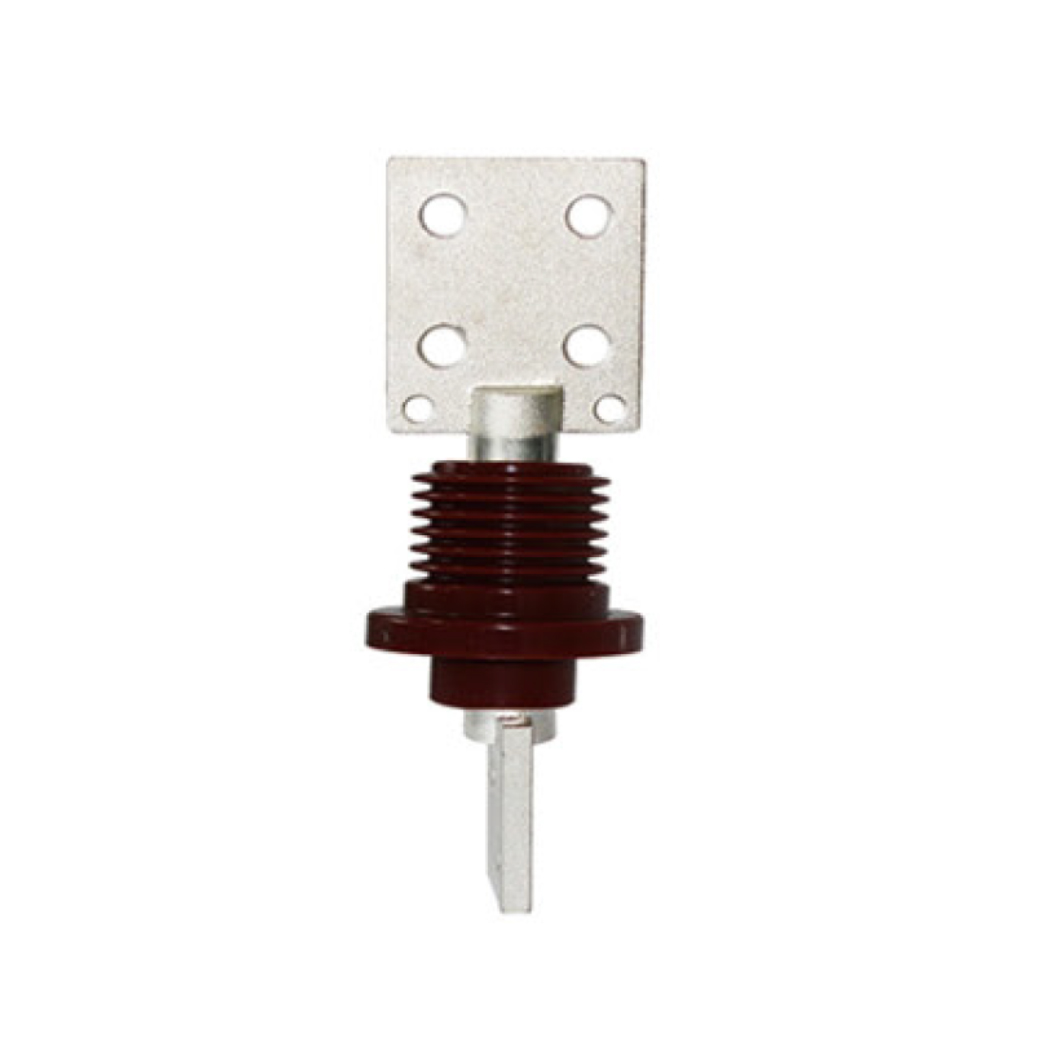

1kV 3kV 630A-5000A ANSI Dry Type Resin Bushing Shovel Connection - 图片 4

1kV 3kV 630A-5000A ANSI Dry Type Resin Bushing Shovel Connection

Dry Type Resin Bushing
The transformer bushing is the main insulating device outside the transformer box.The lead wire of the transformer winding must pass through the insulating bushing to insulate the leadwire and between the lead wire and the transformer housing,and at the same time play the role of fixing the lead wire.There are different types of casing according to different voltage levels.The company’s main resin dry casing is widely used in American box transformers,new energy wind power…

Category:
SKU: 1365A-079

Description

Dry Type Resin Bushing
  The transformer bushing is the main insulating device outside the transformer box.The lead wire of the transformer winding must pass through the insulating bushing to insulate the leadwire and between the lead wire and the transformer housing,and at the same time play the role of fixing the lead wire.There are different types of casing according to different voltage levels.The company’s main resin dry casing is widely used in American box transformers,new energy wind power box transformers,and new energy photovoltaic box transformers.The product has excellent performance and leading technical strength.Different specihcations of casing can be customized according to customer needs.
Conditions of use
1.Ambient temperature;-45ºC~+40ºC;
2.Altitude:The default is not more than 1000m,and the altitude of more than 1000m needs to be specihed.;
3.Installation angle:the default is vertical installation,horizontal installation needs to be specifred;
4.Pollution level:The ordinary type is suitable for light pollution areas,and the anti-fouling type is suitable for heavy pollution areas.

NO. Code Mode Size(Dimensions) Opening Creep
distance		 Teminal
angel
H h2 h3 d  d1 d3 B1×B2 b d2 t B3×B4 b3xb4 d4 t1 C1xc2 d0
1 1YM.1.0620.40 BFG-1/630 263 107 74 20  43 43 40×80 40 13 8 30×60 25 13 10 50×70 45 35 0/90
2 1YM.1.0824.40 BFG-1/800 263 107 74 24  43 43 40×80 40 13 10 30×60 25 13 10 50×70 45 35 0/90
3 1YM.1.1030.80 BFG-1/1000 267 111 78 30  55 55 80×80 45 13 10 50×60 22×26 13 10 80×80 57 35 0/90
4 1YM.1.1232.80 BFG-1/1250 267 111 78 32  55 55 80×80 45 13 10 50×60 22×26 13 10 80×80 30 0/90
5 1YM.1.1636.80 BFG-1/1600 267 111 78 36  70 70 80×80 45 13 12 50×60 22×26 13 12 80×80 72 35 0/90
6 1YM.1.2042.100 BFG-1/2000 287 111 78 42  70 70 100×100 45 14 12 50×60 22×26 14 14 80×80 72 35 0/90
7 1YM.1.2545.100 BFG-1/2500 287 111 78 45  70 70 100×100 45 14 14 50×60 22×26 14 14 80×80 72 30 0/90
8 1YM.1.3145.100 BFG-1/3150 287 111 78 45  70 70 100×100 45 14 15 50×60 22×26 14 20 80×80 72 30 0/90
9 1YM.1.3148.100 BFG-1/3150 287 111 78 48  70 70 100×100 45 14 15 50×60 22×26 14 20 80×80 72 30 0/90
10 1YM.1.4050.100 BFG-1/4000 297 116 83 50  70 70 100×100 45 14 20 50×60 22×26 14 20 80×80 72 30 0/90
11 1YM.1.4052.125 BFG-1/4000 347 141 108 52  80 80 125×125 60 18 20 75×85 40×45 14 20 130 82 40 0/90
12 1YM.1.5056.125 BFG-1/5000 347 141 108 56  80 80 125×125 60 18 20 75×85 40×45 14 20 130 82 40 0/90
NO. Code Mode Size(Dimensions) Opening Creep
distance		 Terminal
angel
 H h2 h3 d d1 d3 B1×B2 b d2 t B3xB4 b3xb4 d4 t1 C1×c2 do
1 2YM.3.1030.80 BFG-3/1000 327 111 78 30 78 55 80×80 45 13 10 50×60 22×26 13 10 130 57 175 0/90
2 2YM.3.1232.80 BFG-3/1250 327 11 78 32 78 55 80×80 45 13 10 50×60 22×26 13 10 130 57 175 0/90
3 2YM.3.1636.80 BFG-3/1600 327 111 78 36 86 70 80×80 45 13 12 50×60 22×26 13 12 140 72 165 0/90
4 2YM.3.2040.100 BFG-3/2000 347 111 78 40 86 70 100×100 45 14 12 50×60 22×26 14 14 140 72 165 0/90
5 2YM.3.2042.100 BFG-3/2000 347 11 78 42 86 70 100×100 45 14 12 50×60 22>26 14 14 140 72 165 0/90
6 2YM.3.2542.100 BFG-3/2500 347 111 78 42 86 70 100×100 45 14 14 50×60 22×26 14 14 140 72 165 0/90
7 2YM.3.2545.100 BFG-3/2500 347 11 78 45 86 70 100×100 45 14 15 50×60 14 14 140 72 160 0/90
8 2YM.3.3145.100 BFG-3/3150 347 111 78 45 86 70 100×100 45 14 15 50×60 22×26 14 20 140 72 160 0/90
9 2YM.3.3148.100 BFG-3/3150 347 111 78 48 86 70 100×100 45 14 15 50×60 22×26 14 20 140 72 155 0/90
