Description

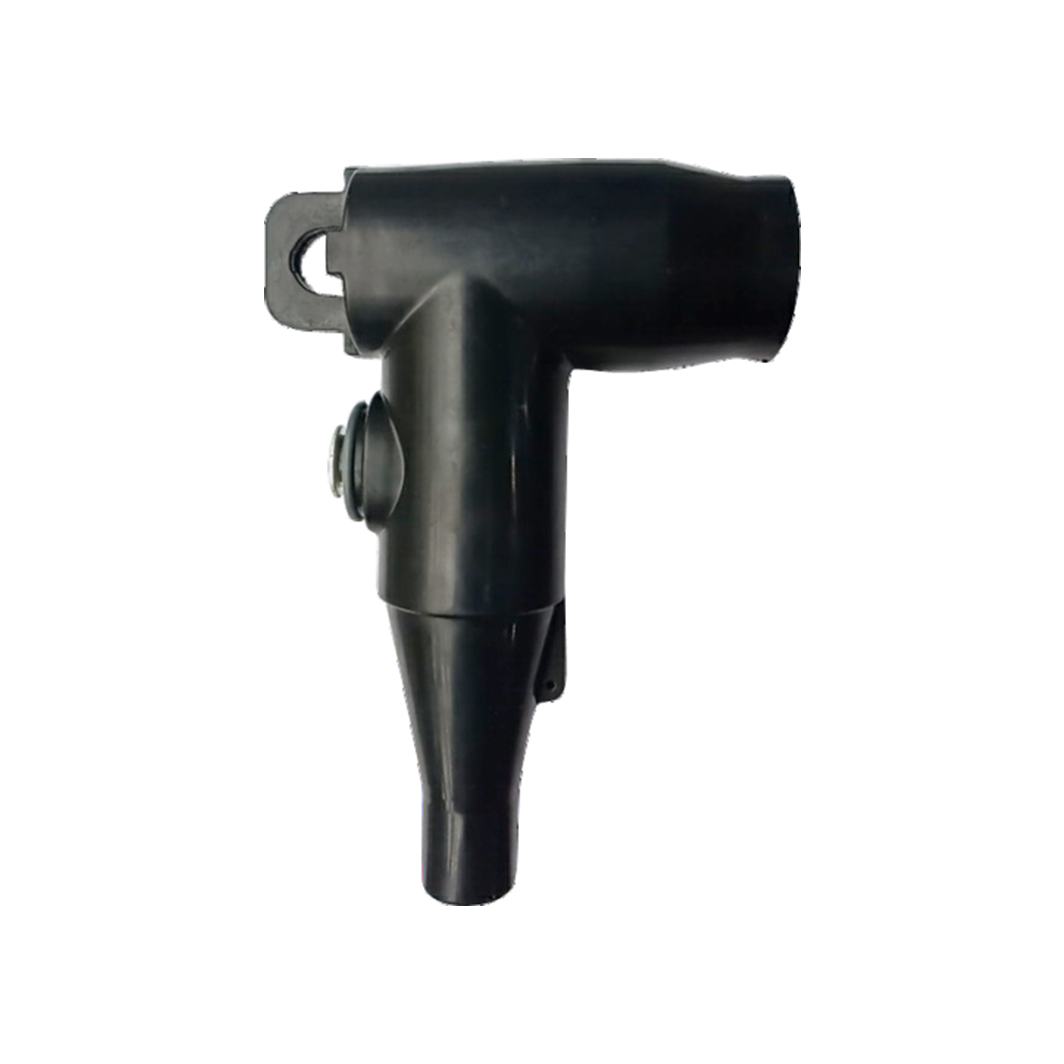

24kV/250A elbow cable connector can be installed horizontally and reduce the bending radius of current.Applicable cable section is between 35 mm2 to 150mm2 .

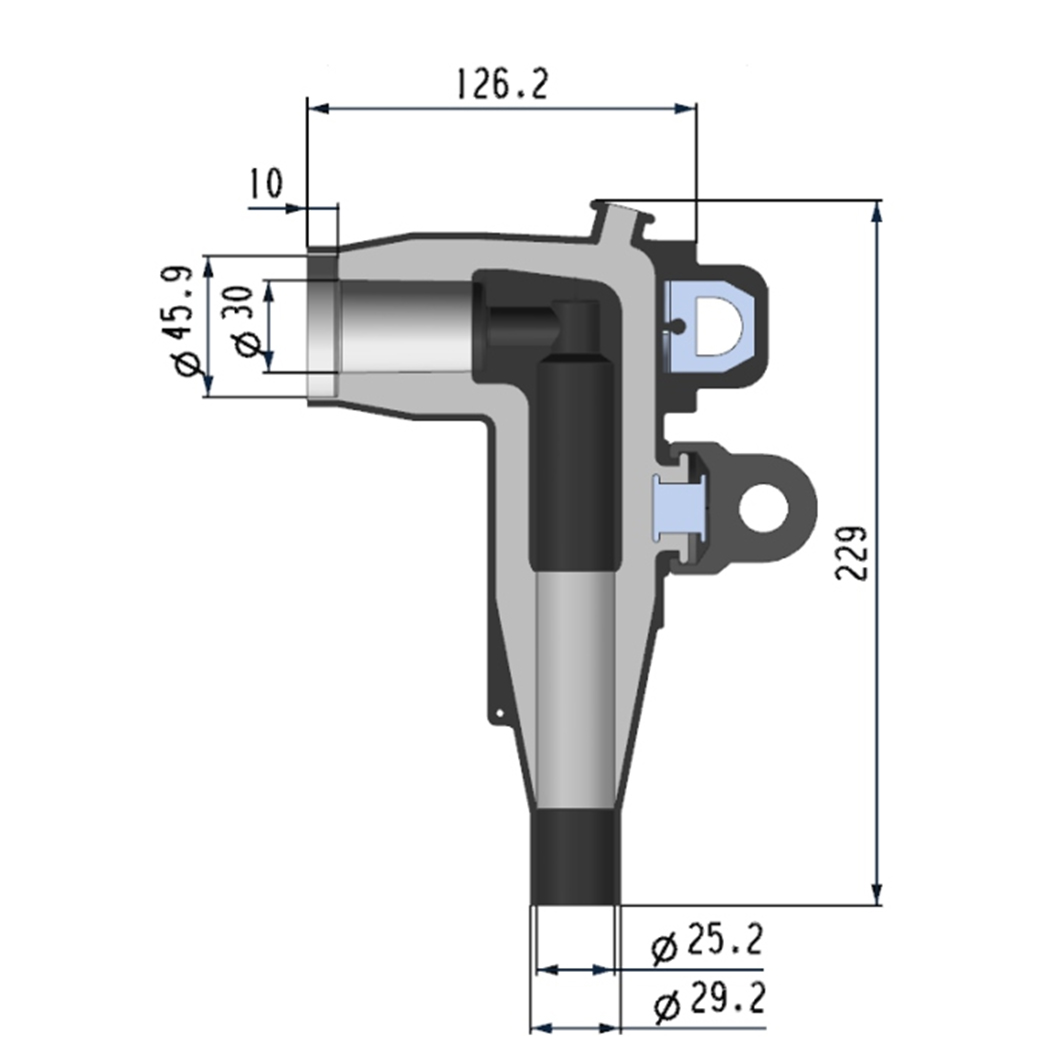

product structure：
Stud bolt
Inner and Outer Semiconducting Layer
Insulating layer
Voltage test point
Crimping terminal
Grounding point
Stress cone
| order number | Cable cross-sectional area/mm2 | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRZT-15/200-35 | 35 | 7.0-7.5 | 17.0-19.0 |
| NRZT-15/200-50 | 50 | 8.0-8.5 | 18.0-20.0 |
| NRZT-15/200-70 | 70 | 9.8-10.0 | 20.0-21.4 |
| NRZT-15/200-95 | 95 | 11.4-11.7 | 21.6-23.1 |
| NRZT-15/200-120 | 120 | 12.8-13.2 | 23.0-24.6 |
| NRZT-15/200-150 | 150 | 14.2-14.7 | 24.4-26.1 |
Packaging accessries：
250A Elbow connector 3 pcs
Test point cap 3 pcs
Common grounding wire 3 pcs
Conductive rod 3 pcs
Pull hook and nut 6 pcs
Pressing block 3 pcs
Crimping terminal 3 pcs
Cleaning paper 3 packs
Silicone grease 2 pcs
Elbow cable ruler 1 pcs
Installation tools 1 pcs
Packing box 1 set
Packing bag 1 set
Instructions 1 copy
Certificate 1 copy
Inspection report 1 copy
