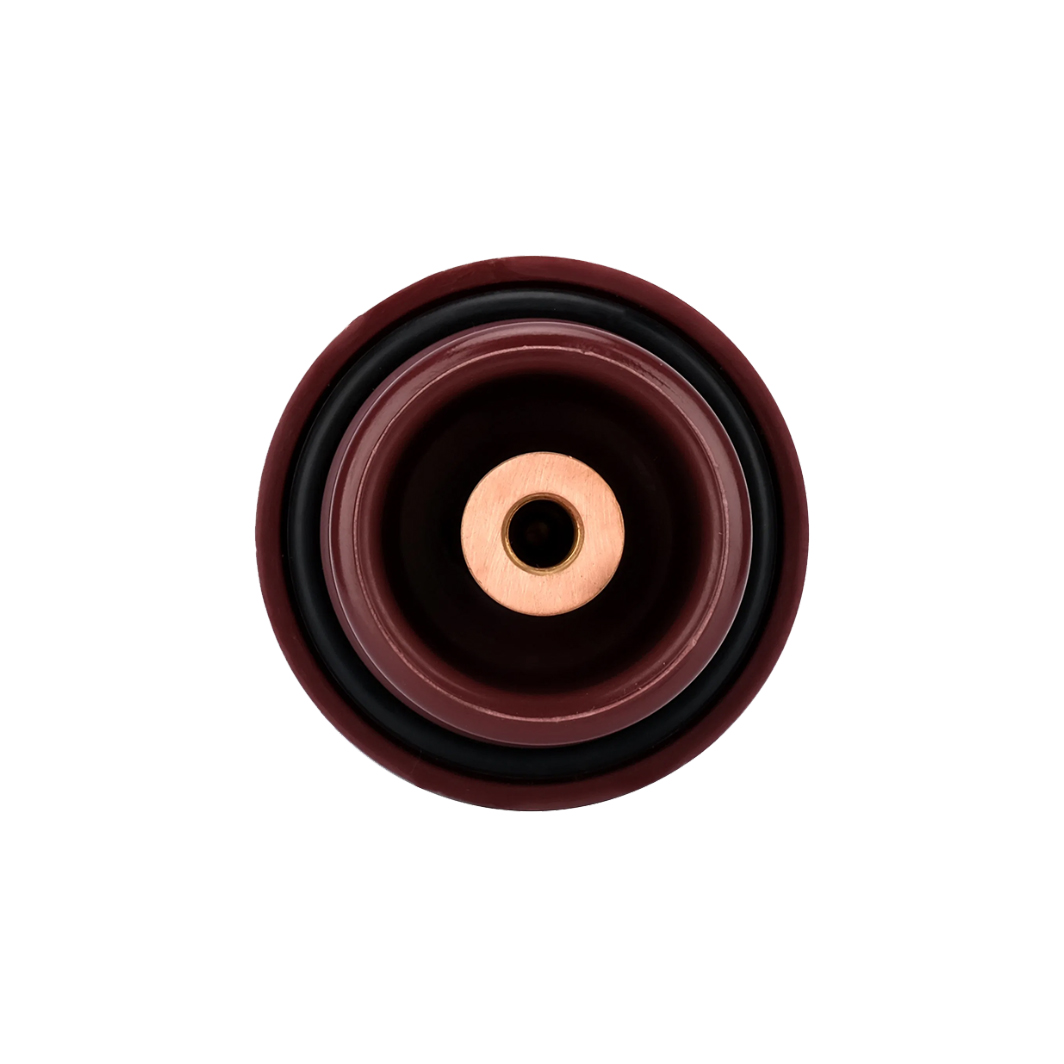

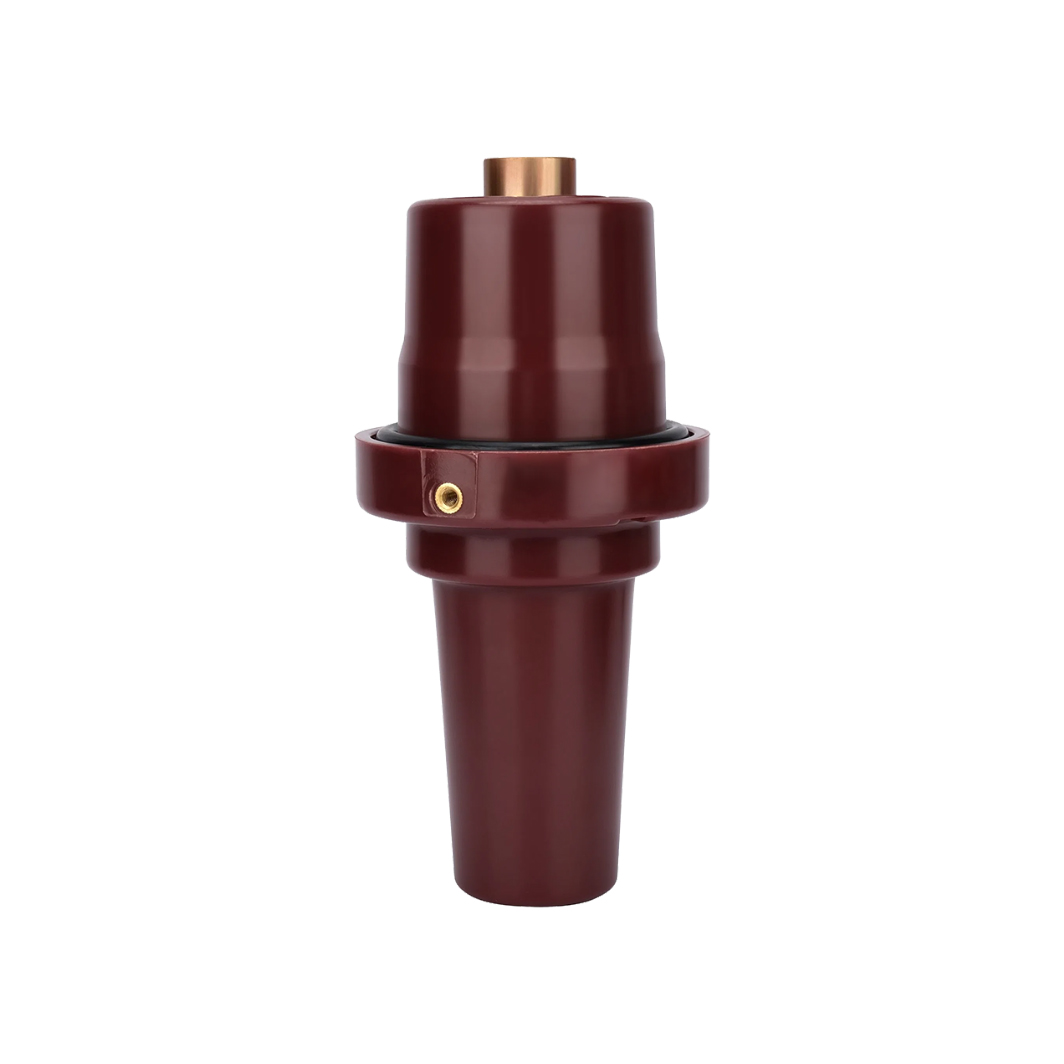

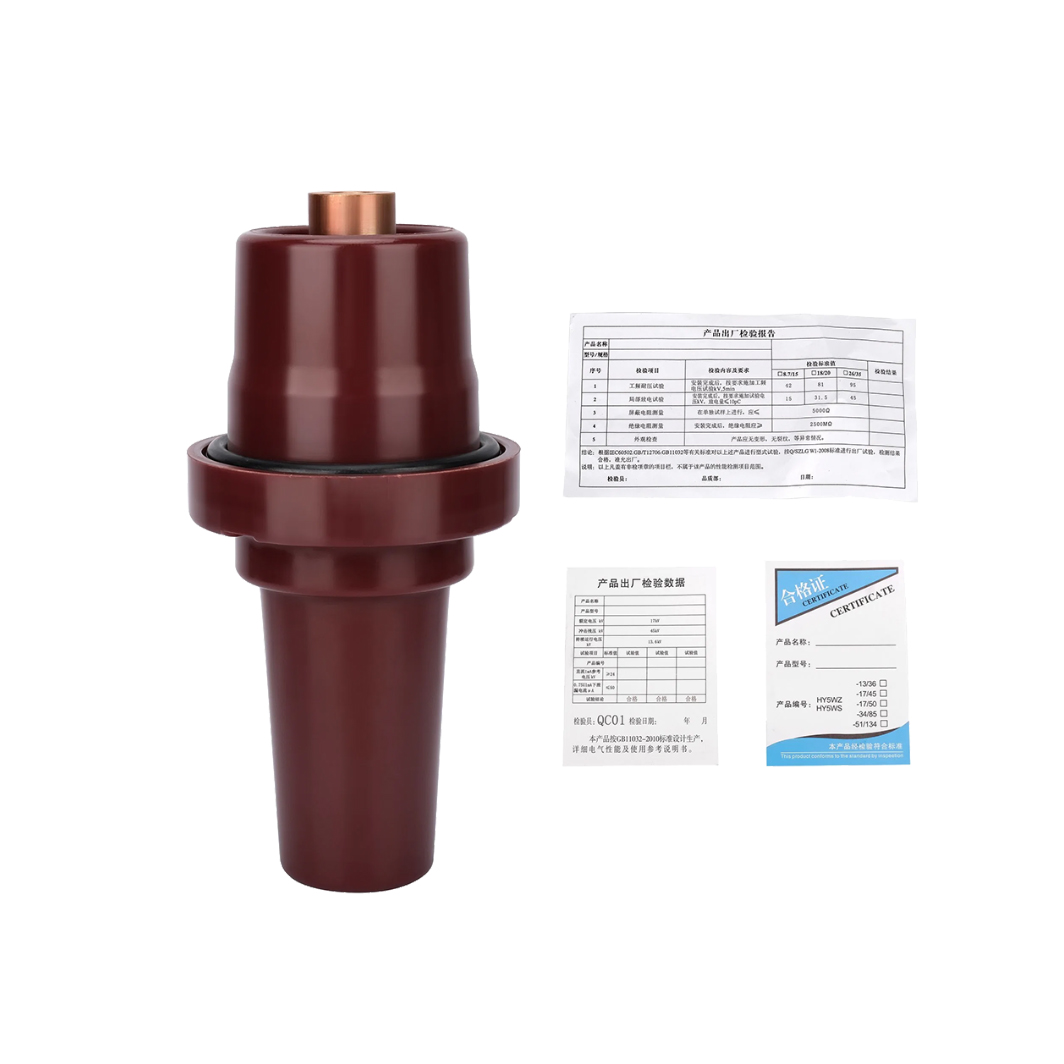

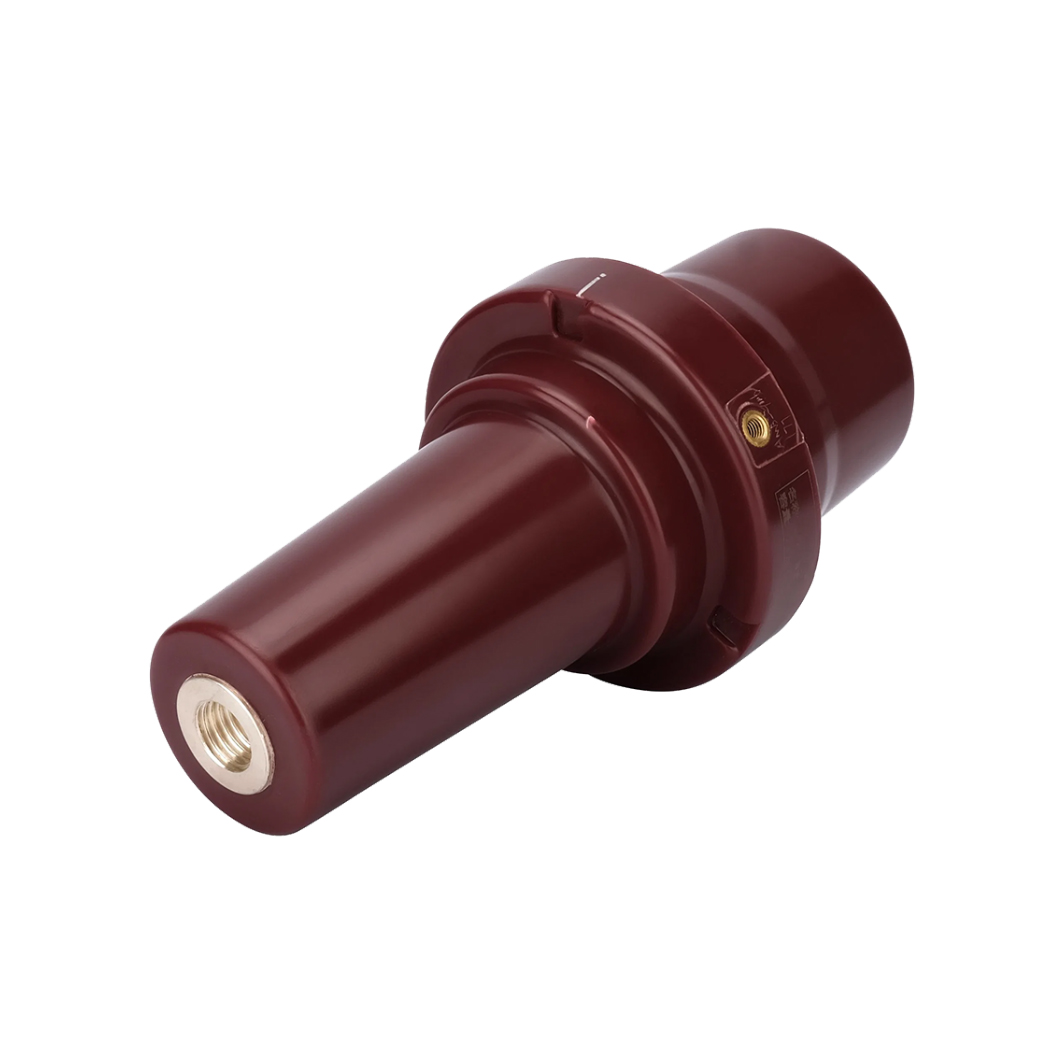

15kv 630A Sf6 Gas Epoxy Bushing Well Insert

15kv 630A Sf6 Gas Epoxy Bushing Well Insert - 图片 2

15kv 630A Sf6 Gas Epoxy Bushing Well Insert

This plug-in bushing can be used as a fixed section for the entry of medium voltage on switch gears or transformers.
Indoors for vertical or horizontal mounting; outdoors both with and without tension making use of the fitting rubber connector, for vertical or horizontal mounting.
Product name
Rated voltag
Rated current
JYTG-35/630
35KV
630A

Category: Pad-mounted Transformer and Accessories

SKU: 16SGE-174

Description
Additional information

Description

This plug-in bushing can be used as a fixed section for the entry of medium voltage on switch gears or transformers.

Indoors for vertical or horizontal mounting; outdoors both with and without tension making use of the fitting rubber connector, for vertical or horizontal mounting.

Product name	Rated voltag	Rated current
JYTG-35/630	35KV	630A
