Diamond dotted insulation paper(DDP)is made by coating special modified epoxy resin on the high-performance and low dielectric loss insulating paper.It is widely applied in inter-layer insulation and turn insulation of oil-immersed power transformers.It is able to prevent the displacement of coillayers after winding and curing,so as to ensure the steady mechanical and electrical performance of insulation structure.
No.
Property
Unit
Requirements
1
Base material thickness and tolerance
mm
0.08??0….
This product is to coat the modified epoxy resin on insulating PMP foils in diamond shape.The material is mainly used for insulation between coils of medium and low voltage transformer lines,at the mold temperature 90??,the foil can be bonded with the wire in 2 seconds;During winding process,the foil will protect the wired form any displacement,with the premises to guarantee the coils’electrical properties and the mechanical properties.This environmental friendly product will increase the yield a…

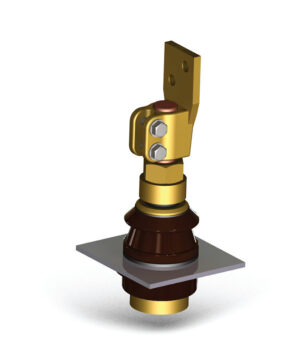

DIN 1kV 1000A 3150A Low Voltage Transformer Porcelain Bushing
The Threaded Bushings for voltage of 1kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
Low-voltage transformers with separate leads normally have solid porcelain bushings. These bushings consist of high-grade porcelain cylinders through which the connections pass. The outside surface may be plain or…

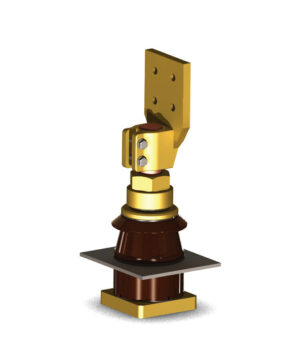

DIN High Voltage Porcelain Bushing
The Threaded Bushings for voltage of 3kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The bar…

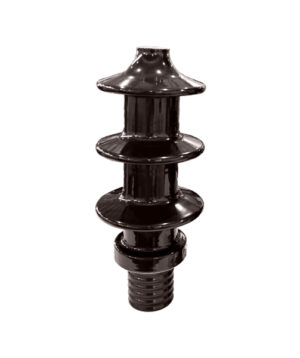

DIN Transformer Porcelain Bushing
The Threaded Bushings for voltage of 3kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The barr…

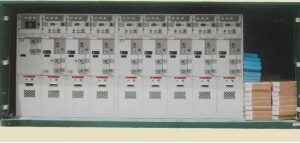

The box type gas insulated switchgear (hereinafter referred to as the aeration tank) to adopt modular design, with its perfect fixed and flexible extension one, in order to suit the requirements of the end user or network nodes, and satisfy all kinds of distribution by opening and closing, the needs of the box-type substation, cable branch box, with compact structure, safe and reliable, long life, maintenance-free, etc.
Molded copper row,copper-aluminum transition row series products are widely used in new energy substations,power transmission and distribution transformers,and reactors.The product technology is excellent,the series specifications are comprehensive,and it supports the different personalized customization needs of customers.
Product introduction
1.This series of copper-aluminum transition strips adopts internationally advanced flash welding equipment and adopts flash melting welding technology.Th…
Outline：
The iron-based amorphous alloy is composed of 80%fe and 20%siand b,the alloy of the metal element is rapidly solidified.Anamorphous material formed by the art,having an extremely highquality,superior physical and electrical.
Technical Characteristics：
1. High saturation magnetic induction intensity–reduce the number of winding turns,reduce thevolume of the product
2. High resistivity,low coercivity–improve product efficiency
3. Low loss(equivalent to 1/3-1/5 of silicon steel sheet)-…

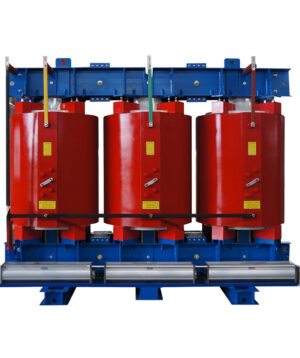

The high and low voltage winding is wound with epoxy resin in vacuum state. After high temperature curing, it forms a solid whole with good mechanical strength and small partial discharge.
Cast resin insulation guarantees secure performance of the transformer with no need for complicated and costly maintenance. Preventive maintenance of cast resin transformers consists in a simple visual check. Low operating costs Low losses in the magnetic core and in the windings reduce the costs of operation….
