Application

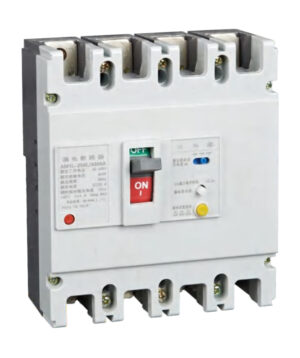

AM1L series earth leakage circuit breaker is one of the new type earth leakage breakerswhich has been developed by the company using international advanceddesign and manufacturing technology.Suitable for a line of AC50/60Hz,rated voltage up to 400V,rated current 16Ato 630A.and is acted asinfrequently changeover of circuit or infrequent starting of motor.The breaker has overload,short-circuit and undervoltage protective function,which can protect the circuit and the power equipment ag…
Product Introduction:

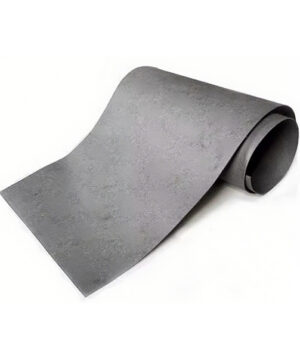

This is a fully cured reinforced cellulose fiber / nitrile butadiene gasket material with excellent crush resistance at high flange pressures. This material has superior sealing properties with fuel, oil and water.This material has a short duration maximum temperature limit of 230oC (455F).Some common applications include automotive, small engine and compressor ,engine and transmission pan, water pump, and environmental sealing.
Features:
Excellent water and oil resistance,…

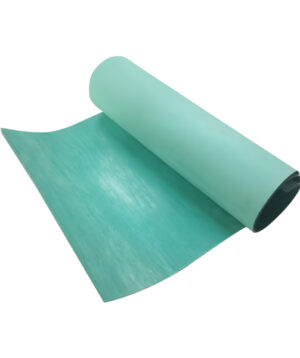

High quality gasket material sheets, composed of aramid, glass, in organic, or carbon fibers, NBR rubber as a binder and different fillers. Fiber gasket sheets with different chemical,thermal and mechanical resistance are made to endure at different loadings, even the most demanding conditions.
Features:
High resistance to seating stress.
Low creep relaxation.
Wide range of operating temperatures and pressures.
Resistance to an extensive range of chemical products.
Sealpilot NO.
Pressure
Tempera…

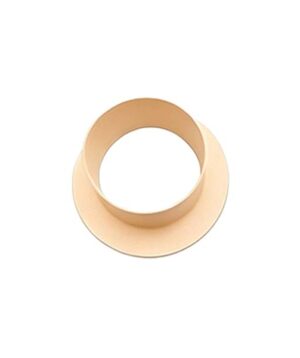

Wet Process Molded Insulation Parts for Transformers
are specially designed for oil-immersed power transformers and distribution transformers. They are manufactured from high-quality electrical insulation pressboard through wet molding, drying, pressing and precision processing.
These molded insulation components have excellent electrical insulation performance, high mechanical strength and good dimensional stability. They are widely used inside transformer active parts for winding support, coil…

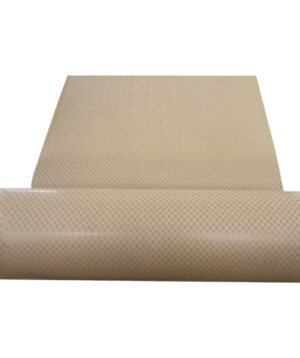

Diamond dotted insulation paper(DDP)is made by coating special modified epoxy resin on the high-performance and low dielectric loss insulating paper.It is widely applied in inter-layer insulation and turn insulation of oil-immersed power transformers.It is able to prevent the displacement of coillayers after winding and curing,so as to ensure the steady mechanical and electrical performance of insulation structure.
No.
Property
Unit
Requirements
1
Base material thickness and tolerance
mm
0.08??0….
This product is to coat the modified epoxy resin on insulating PMP foils in diamond shape.The material is mainly used for insulation between coils of medium and low voltage transformer lines,at the mold temperature 90??,the foil can be bonded with the wire in 2 seconds;During winding process,the foil will protect the wired form any displacement,with the premises to guarantee the coils’electrical properties and the mechanical properties.This environmental friendly product will increase the yield a…

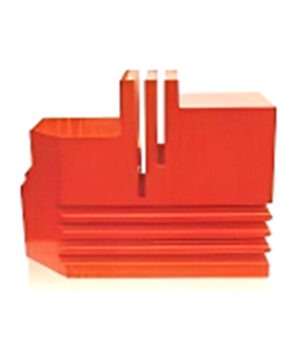

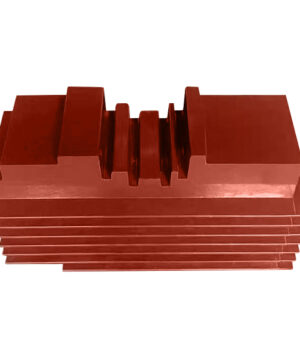

Product Description
Common Name: Dry-Type Transformer Resin Insulation Support pad
Material: SMC, BMC
Dimensions: Various
Colors: Various
Application: For use on epoxy drums in dry-type transformers! Features high strength, excellent insulation, and superior mechanical properties. Production Range: 30kV/10kVA – 20,000kV/35kVA. Suitable for insulating spacers for dry-type transformers with a maximum capacity of 110kVA.
We produce electrical composite coaming board by multilayer composite of polyester film and non-woven fabric,special heat resistant adhesive as the bonding material.And then surface treatment with special resin.The product has very high mechanical and electrical properties.The shrinkage and humidity absorption is low.And the thermal endurance property is very reliable.Electrical composite coaming board is mainly used for the winding of the low voltage coils in dry-typetransformers.It can replace…
Electrical composite polyester film is composite polyester film is mainly used as the insulator between high-low voltage coils in the dry type transformers, and can also be used as turn or backing insulating in the motor or other high voltage electrical equipment.
Tecommended width:
1000mm??1200mm??1400mm??1500mm,Tailor-made width is available.
Storage
The product should be stored in dry,clean and well-ventilated warehouse under 30??.The fire,heat sources and direct sunshine should be avoided.
No.
P…
Electrical AFA insulation paper is composited by insulation paper EM film.Then coated with the special modified epoxy resin in diamond shape,solidified to phase Bto be the High mechanical strength new material diamond dotted AFA insulating paper.It’s widely used in wind power inverter,solar inverter, transformer of 35kV and below.
Product Solidification Conditions
First of all,to cure under ttemperature 90???5Cfor 3 hours,and then risetemperature to 125???5Cand keep 6 hour…
Electrical insulating crepe paper is wet lapped the 100%sulfate wood pulp,then wrinkle the base insulating paper which hasn’t dried.The electrical insulating paper is flexible,with high elongation and high oil absorption properties.It’s widely used as turn insulation,CTC and layer insulation in transformers,reactors and mutual inductors.
Recommended width:
700mm??1100mm;we can also slit it to be belts .Tailor-made by customers’requirements is available.
Storage
The product should be stored in dry…
