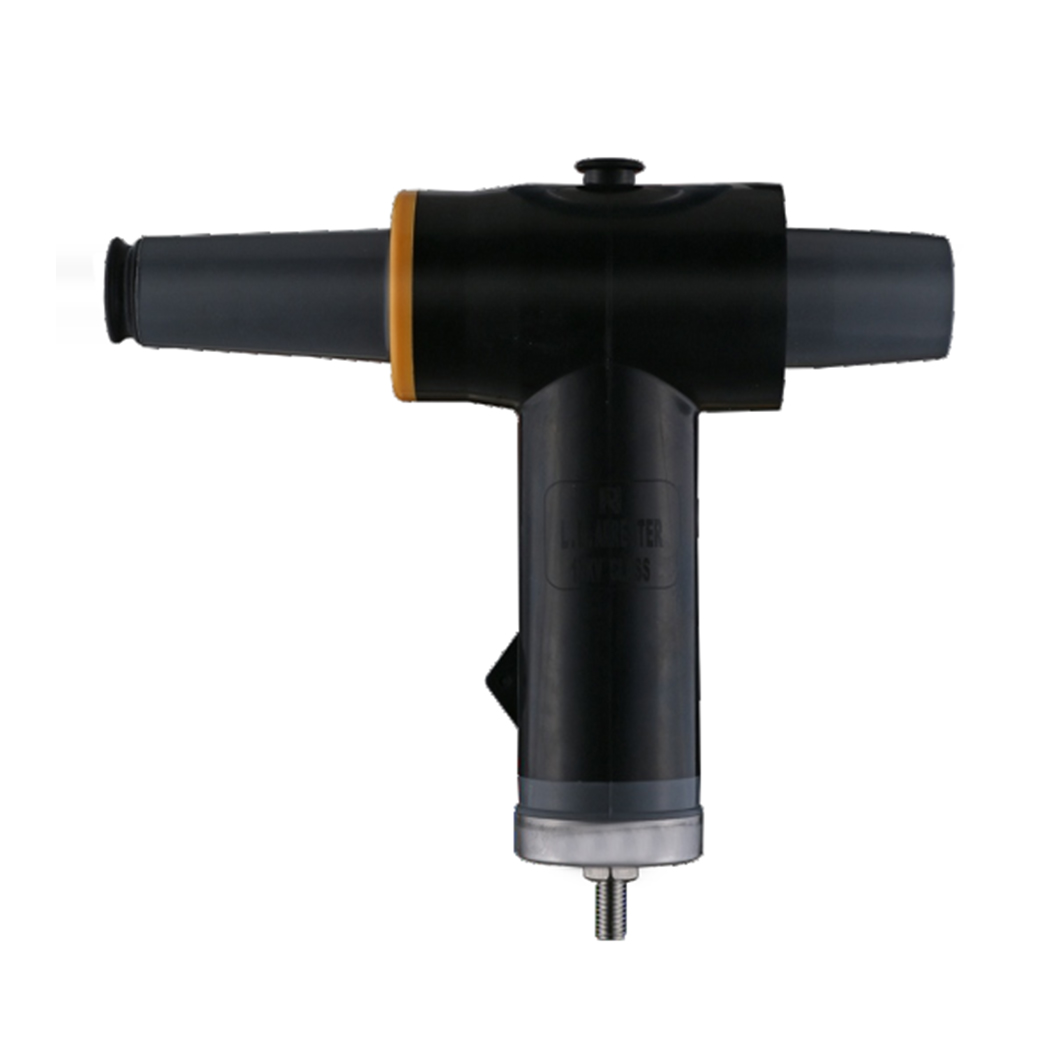

DTBLQ-HY5WS(Z)-17/50 Single-pass Elbow Connector

15kV/200A double elbow lightning arrester is widely used in American box transformer and branch box, buried transformer, switchgear and other equipment. The product increases more space for box transformer, and has the characteristics of simple operation and compact structure.

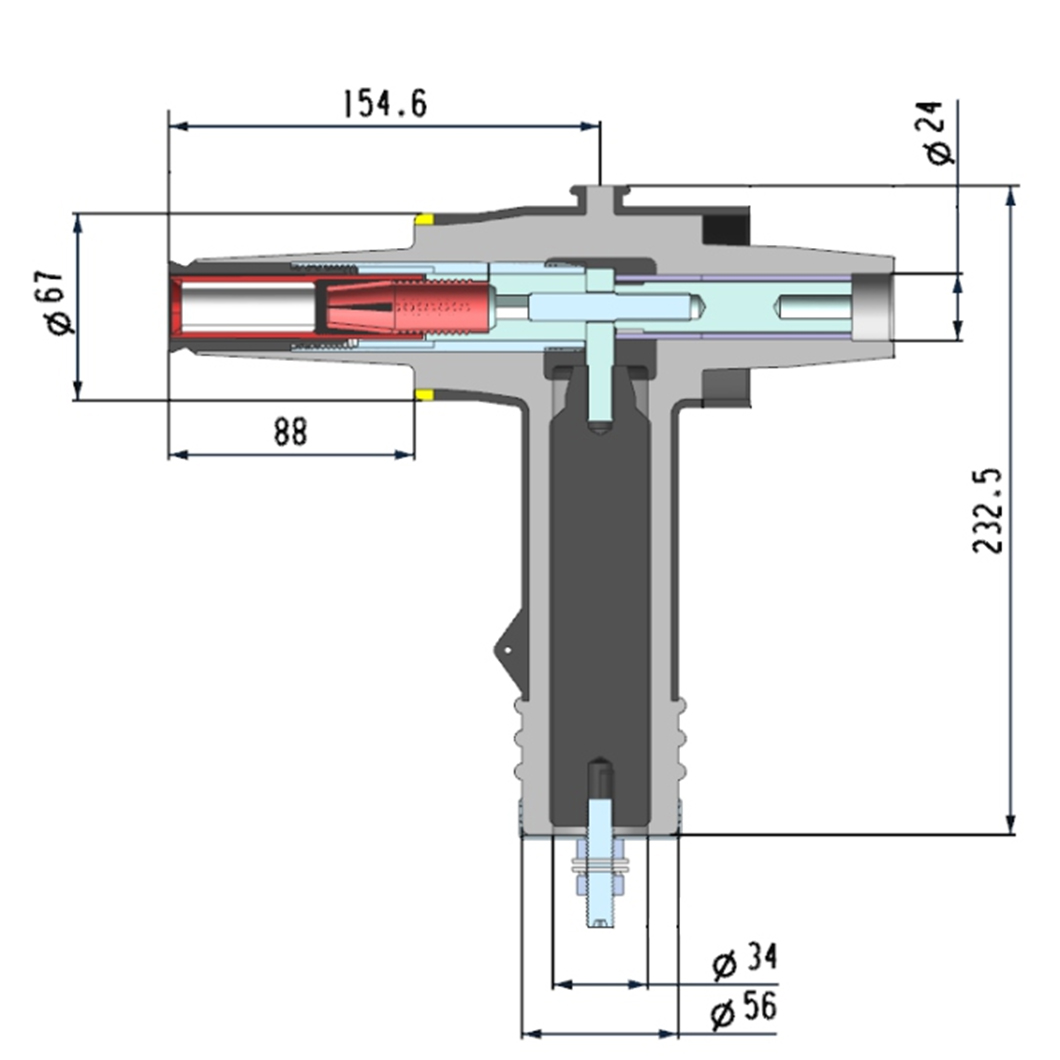

product structure：
Insulation
Arc suppression chamber
Outer semiconducting layer
Arrester core
Copper bottom cover
Ground wire
order number
Cable cross-sectional area/mm²
Conductor diameter/mm
Cable insulation outer diamet…

Category: Pad-mounted Transformer and Accessories

SKU: DHZ15-156

Description
Additional information

Description

product structure：

Insulation

Arc suppression chamber

Outer semiconducting layer

Arrester core

Copper bottom cover

Ground wire

order number	Cable cross-sectional area/mm²	Conductor diameter/mm	Cable insulation outer diameter/mm
NRDTBLQ-HY5WS(Z)- 15/200-35	35	7.0-7.5	17.0-19.0
NRDTBLQ-HY5WS(Z)- 15/200-50	50	8.0-8.5	18.0-20.0
NRDTBLQ-HY5WS(Z)- 15/200-70	70	9.8-10.0	20.0-21.4
NRDTBLQ-HY5WS(Z)- 15/200-95	95	11.4-11.7	21.6-23.1
NRDTBLQ-HY5WS(Z)- 15/200-120	120	12.8-13.2	23.0-24.6
NRDTBLQ-HY5WS(Z)-15/ 200-150	150	14.2-14.7	24.4-26.1

Packaging accessries：

Single-pass Elbow arrester 3 pcs

Main grounding wire 3 pcs

Short circuit ground wire 3 pcs

Elbow connetor back cover 3 sets

Dust cover 3 pcs

Connecting rod II combination 3 pcs

Metal part II combination 1 pc

Cleaning paper 6 packs

Silicone grease 2 pcs

Special hexagon wrench 1 pc

Internal valve body 3 pcs

Electrode head 3 pcs

Packing box 1 sheet

Packing bag 1 copy

Instructions 1 copy

Certificate 1 copy

Read more

18kV 60A Pad-mounted Transformer Under Oil MOV Surge Arrester

Under Oil MOV Surge Arrester
The under oil MOV arrester is designed in accordance with IEEE Std C62.1, and for either horizontal or vertical mounting inside the distribution transformer tank to eliminate the
difficulties associated with externally mounted arresters.
When placed under oil the MOV arrester benefits from the cooling effect of the circulating oil. In addition, under-oil mounting of the arrester eliminates the possibility of shortened arrester life due to high surface contamination,…
Read more

Ymp 15kv 200A 600A Specific Junction

200A/600A Specific Junction provide two,three or four 200A loadbreak and600A deadbreak,15kV mixed interfaces on one side that are internally busedtogether and meet all requirements of ANSI/IEEE 386-Separable InsulatedConnector Systems.When mated with a comparably rated product,the junctionprovides a fully shielded, fully insulated,separable connection for loadbreak ordeadbreak operation.
It is available with an adjustable bracket for mounting at various operatingangles on flat or cured surfaces.
Read more

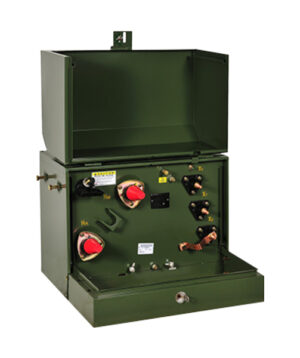

Single Phase 34.5kv Pad Mounted Transformer 167kVA 250kVA Pad-Mounted Transformer
