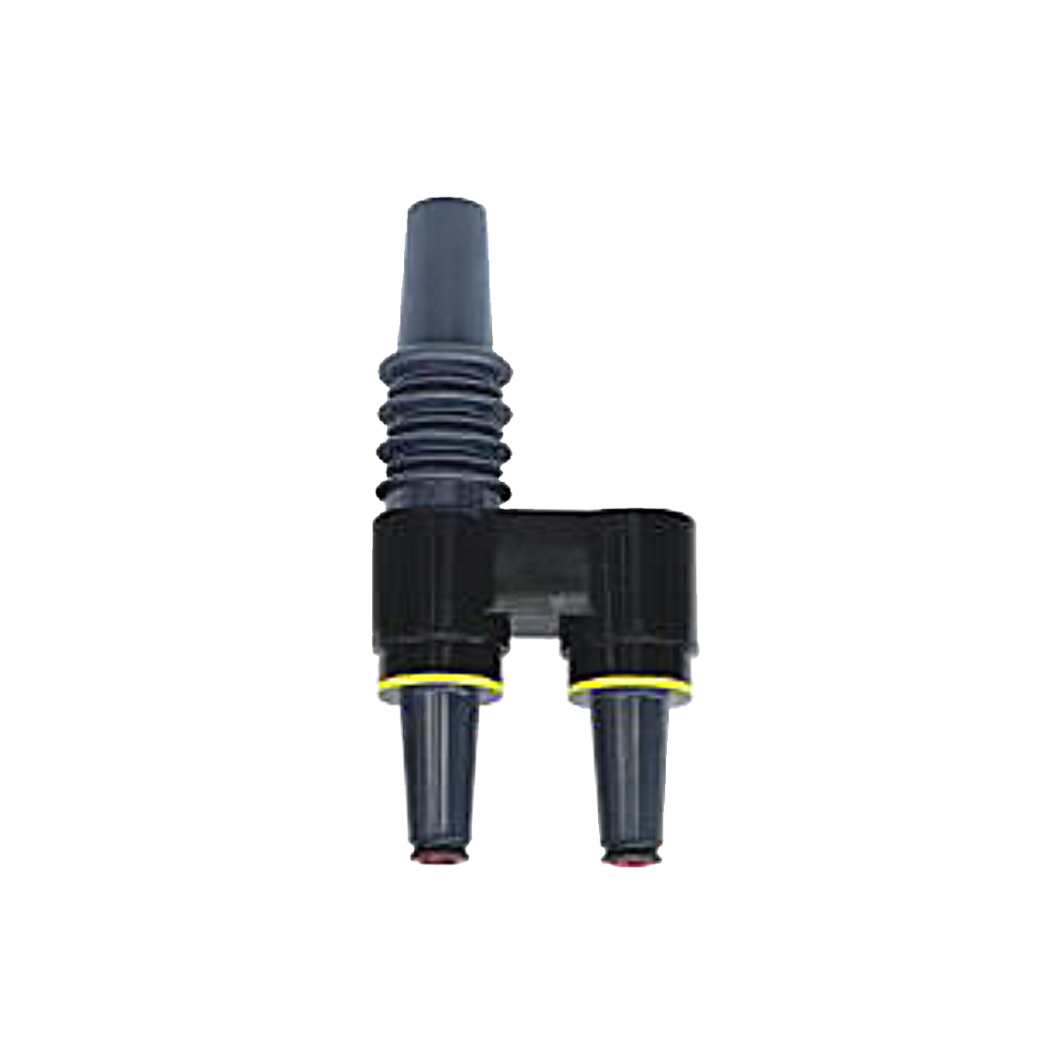

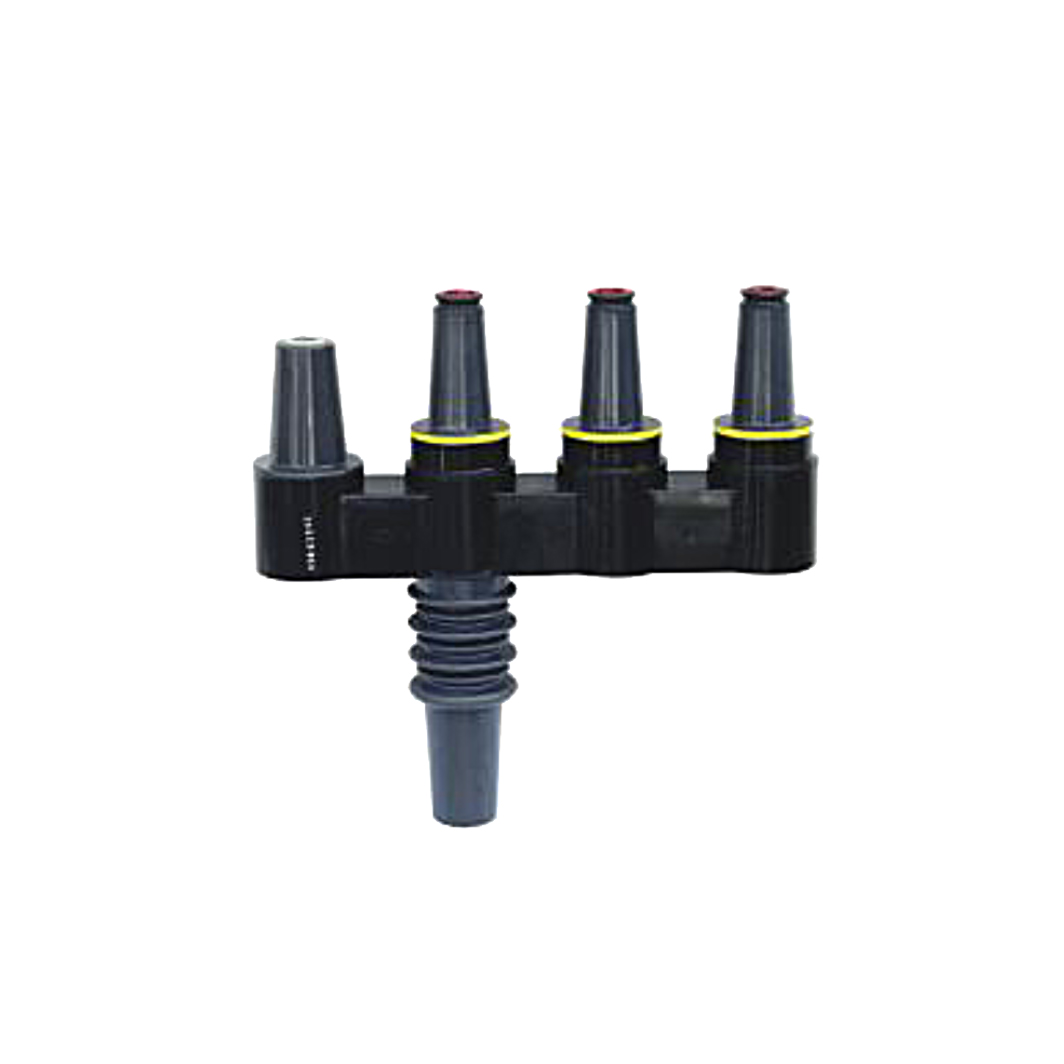

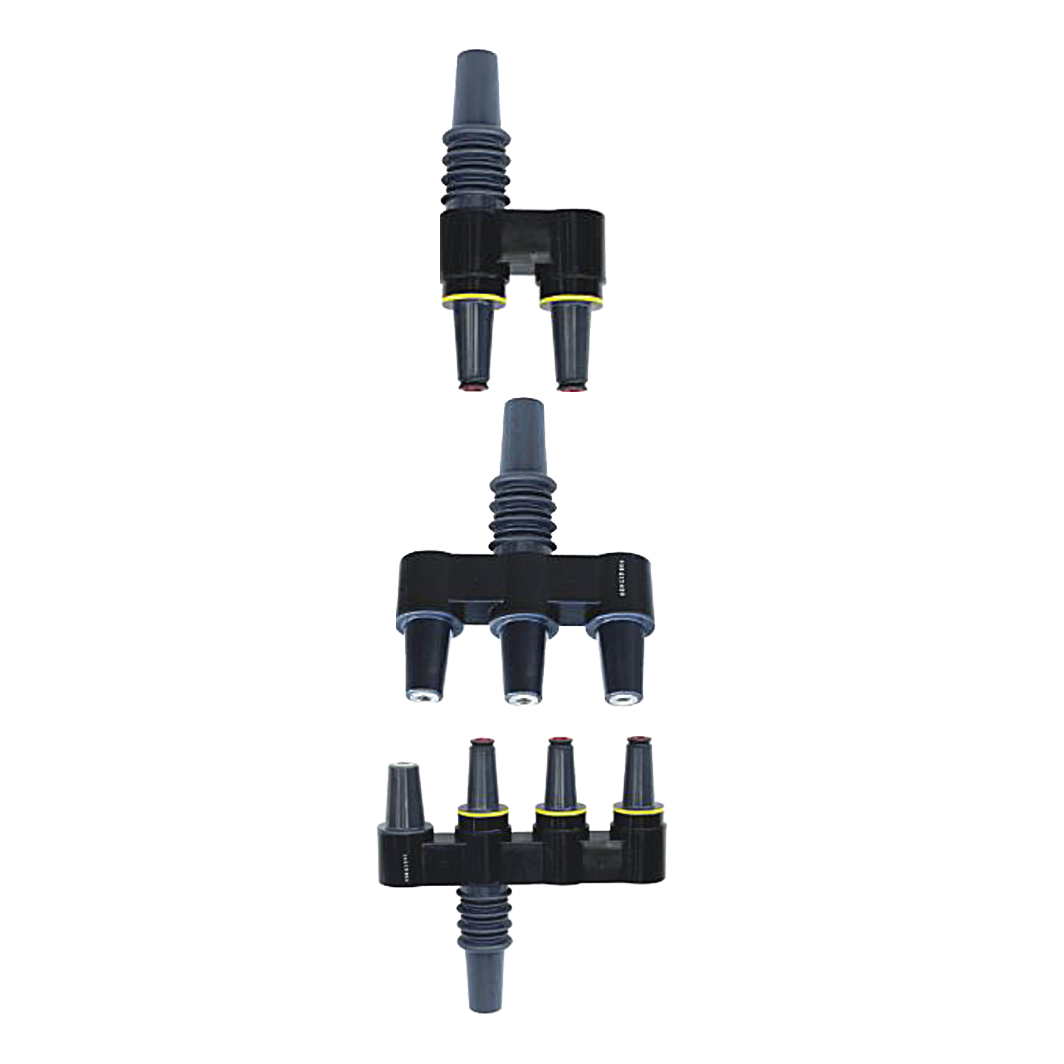

Ymp 15kv 200A 600A Specific Junction

The Bushing Insert threads onto a standard 200A bushing well.The combination of the bushing well and bushing insert perform the same function as a one piece integral loadbreak bushing, while providing the flexibility to change the bushing insert in the field, without taking the transformer or other apparatus out of service. The bushing insert and loadbreak elbows are the primary components in all ANSI/IEEE loadbreak connections.
The Bushing Insert incorporates an all copper current path.This pro…

15kV / 200A elbow type cable connector is widely used in the connection of American  box transformer, ring main cabinet, cable branch box, buried transformer and other electrical  equipment.  It is applicable to cross-linked polyethylene cables with 15kV cable section of 35mm
2
~  150mm
2
.
product structure：
Operating ring
Insulation
Inner semiconductor layer
Voltage test point
Outer Semiconducting Layer
Arc suppression insertion rod
Crimping terminal
order number
Cable cross-sectional area/mm
…
