Description

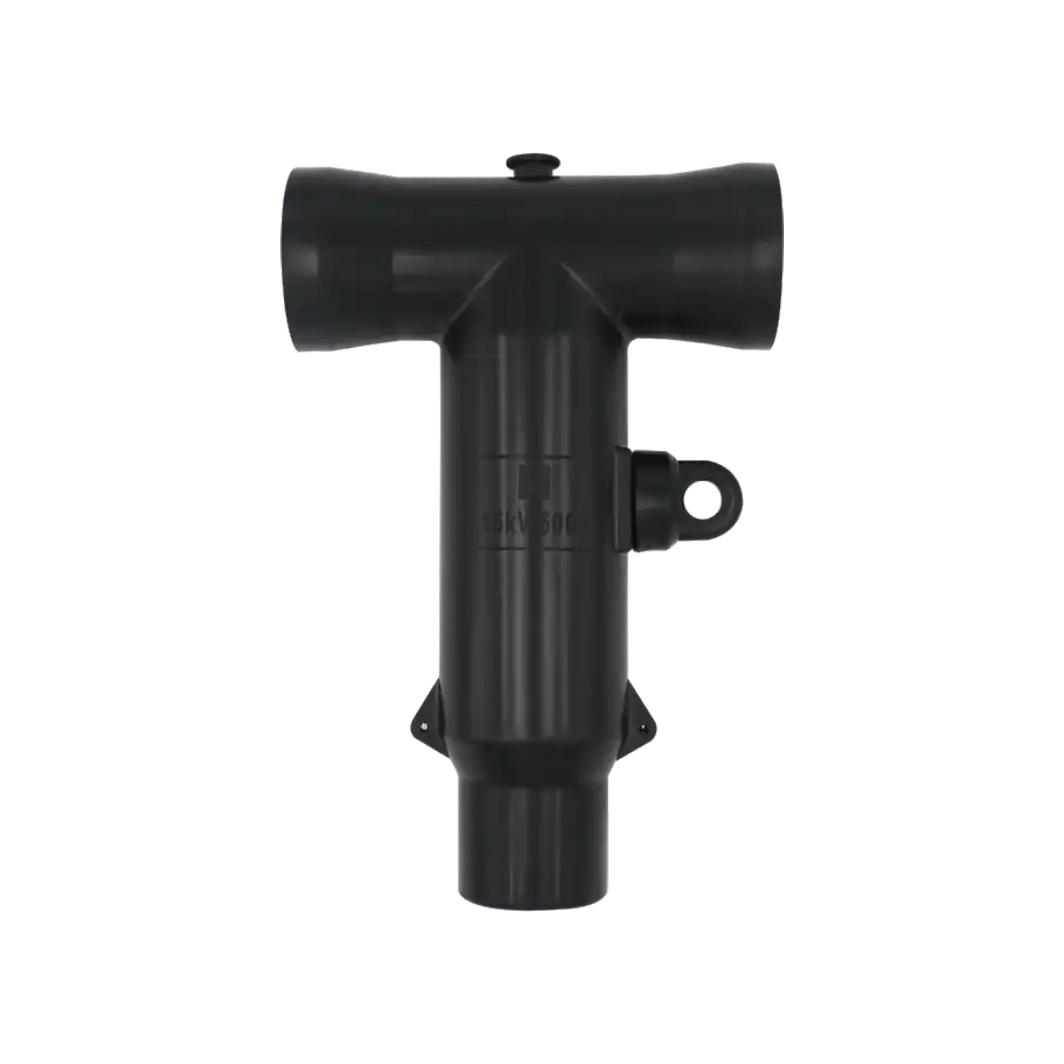

15kV / 600A shielded T-joint is used for cable connection equipment,American box transformer,ring main cabinet and cable junction box, etc.

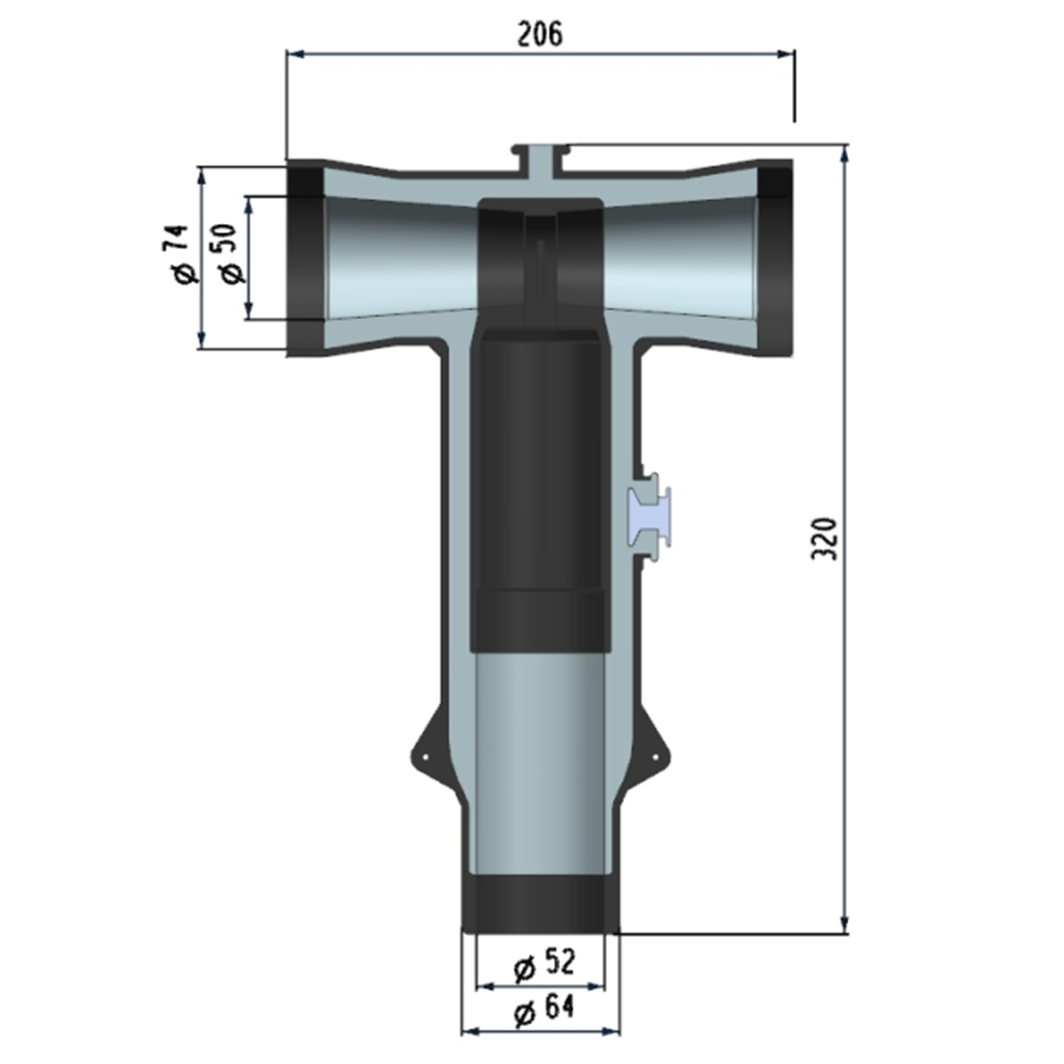

product structure：
Conductive rod
Inner and Outer Semiconducting Layer
Insulating layer
Voltage test point
Crimping terminal
Grounding point
Stress release
| order number | Cable cross-sectional area/mm² | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRTT-15/600-35 | 35 | 7.0-7.5 | 18.0-20.0 |
| NRTT-15/600-50 | 50 | 8.0-8.5 | 20.0-22.0 |
| NRTT-15/600-70 | 70 | 9.8-10.0 | 22.0-23.4 |
| NRTT-15/600-95 | 95 | 11.4-11.7 | 23.6-25.1 |
| NRTT-15/600-120 | 120 | 12.8-13.2 | 25.0-26.6 |
| NRTT-15/600-150 | 150 | 14.2-14.7 | 26.4-28.1 |

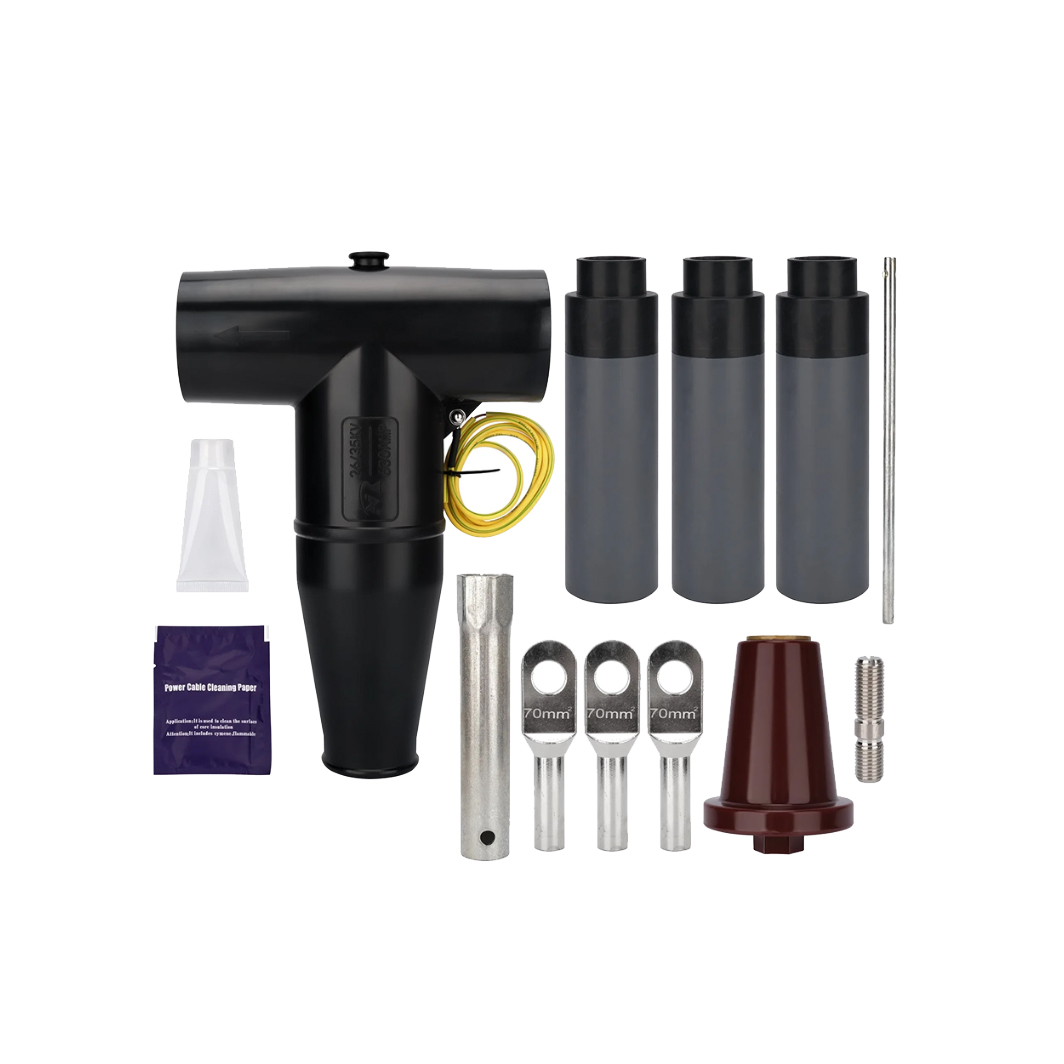

Packaging accessries：
Shielded T-type connector 3 pcs
Test point cap 3 pcs
Common grounding wire 3 pcs
American stress cone 3 pcs
American insulation plug 3 pcs
American crimping terminal 3 pcs
T-type Cap 3 pcs
Casing wrench 1 pcs
Cleaning paper 6 packs
Silicone grease 3 pcs
Cable ruler 1 pcs
Packing box 1 set
Packing bag 1 set
Instructions 1 copy
Certificate 1 copy
