CT/PT Measurement Range:
1. Turn ratio,polarity
2. Ratio and phase accuracy
3. Winding resistance
4. Excitation characteristics(knee points)
5. Composite error(ALF,ALFi,FS,FSi,Vb)
5. Burden impedance
Output
0~180Vrms,12Arms,36A(Peak Value)
Voltage Measuring Precision
±0.1%
CT Turns Ratio Test
Range
1~40000
Precision
±0.05%
PT Turns Ratio Test
Range
1~40000
Precision
±0.1%
Phase Test
Range
±2min
Precision
0.5min
Secondary Winding Resistance Test
Range
0~300Ω
Precision
0.2%±2mΩ
AC Burden Test
Rang…
1. This product is primarily suitable for DC withstand voltage tests on high-voltage electrical equipment such as zinc oxide surge arresters, power cables, transformers, and generators in power, mining, metallurgy, and steel industries.
2. It employs a high-frequency voltage multiplier circuit, utilizing PWM pulse width modulation technology and high-power IGBT devices.
3. It utilizes voltage negative feedback, resulting in high output voltage stability and a low ripple coefficient (≤1%).
4. It …
Product introduction:
The test system’s control operations are based on a PLC programmable logic controller and a touch-operated integrated computer software interface. Through optimized software design, all test items can be completed automatically. The introduction of a data management system enables automatic storage of test results and generation of test reports for each test item, eliminating the need for test personnel to perform tedious operations such as recording and inputting data, the…
Insulation Resistance Tester is widely used in maintenance of electrical equipment intransformer substation,power plant,etc.It is suitable for carrying out measurement of insulation resistance(IR),absorption ratio(DAR)and polarization index(PI)of all kinds of high voltage equipment,including switchgear transformer sreactors,capacitors,motors,generators and cables,etc.
1. Microcomputer oontrol,menu operation and LCD screen dot matrix display.
2. Output high voltage of each range can be continuous…
DC winding resistance tester is designed to measure DC resistance of inductive devices, such as transformers and power inductors. It has features of fast measurement, small size and high accuracy, which make it an ideal equipment for measuring DC resistance of transformer winding and high inductive equipment.
1. Four leads measurement to ensure measuring accuracy.
2. Program-controlled current source to increase measuring speed.
3. Auto discharge and discharge indication function, to ensure safe…

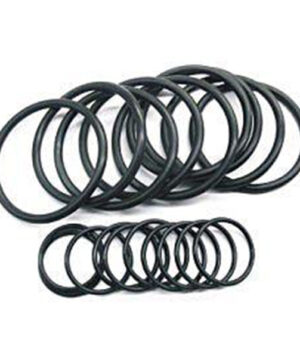

Acrylic rubber:
Features:
1. Excellent oil resistance, with stable performance even in hot transformer oil (150??C);
2. Excellent resistance to weathering, UV aging, and ozone aging, resulting in a service life of over 20 years in equipment
3. Excellent high-temperature resistance;
4. Operating temperature: -30??C to 180??C or -40??C to 180??C.
Applicable Environments:
1. Ambient temperatures of -30??C to 180??C or -40??C to 180??C;
2. Areas with strong UV rays;
3. Areas exposed to air.
Applicable Equipm…
The pressure safety valve is employed as a safety element in distribution transformers of low rating. In the event of an explosion-type pressure increase of the transformer tank, the excess pressure must be relieved immediately in order to avoid damage to the tank.These types are suitable for hermetically sealed type transformers.
CONSTRUCTION
The pressure safety valve consists of a brass cap, a conical valve body, a rubber seal between the cap and body and a coil spring holding the whole syste…
15kV / 600A shielded T-joint is used for cable connection equipment,American box transformer,ring main cabinet and cable junction box, etc.
product structure：
Conductive rod
Inner and Outer Semiconducting Layer
Insulating layer
Voltage test point
Crimping terminal
Grounding point
Stress release
order number
Cable cross-sectional area/mm²
Conductor diameter/mm
Cable insulation outer diameter/mm
NRTT-15/600-35
35
7.0-7.5
18.0-20.0
NRTT-15/600-50
50
8.0-8.5
20.0-22.0
NRTT-15/600-70
70
9.8-10.0
22….
Turn-to-turn surge withstand tester uses pulse waveform comparison method,which generate
high voltage pulse to
coil windings of motor or other equipment to conduct equivalent over-voltage simulation test. It can correctly and
rapidly determine the quality of turn-to-turnin sulation by observing,comparing and analyzing the displayed waveform.
It can be used for inter-turn and inter-layer insulation strength testing of single-phase motors, three-phase small and
medium-sized motors, micro motors, s…
