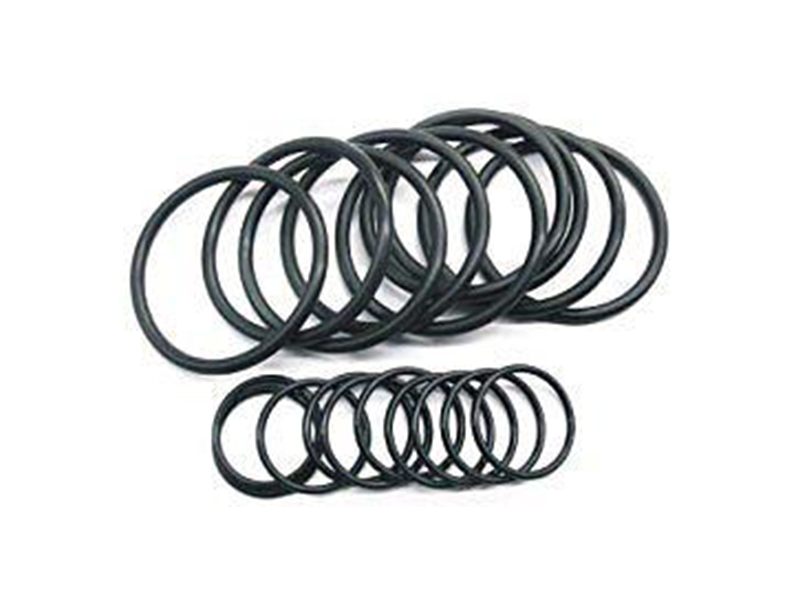

Transformer Nitrile Rubber Acrylic Rubber Insulator Washer for Oil Seal

Acrylic rubber:
Features:
1. Excellent oil resistance, with stable performance even in hot transformer oil (150??C);
2. Excellent resistance to weathering, UV aging, and ozone aging, resulting in a service life of over 20 years in equipment
3. Excellent high-temperature resistance;
4. Operating temperature: -30??C to 180??C or -40??C to 180??C.

Applicable Environments:
1. Ambient temperatures of -30??C to 180??C or -40??C to 180??C;
2. Areas with strong UV rays;
3. Areas exposed to air.

Applicable Equipment:
Suitable for oil-immersed transformers, instrument transformers, and other power transmission and transformation equipment, as well as their associated components.

Applicable Media:
Transformer oil.

Nitrile rubber:
Features:
1. Excellent oil resistance, including resistance to transformer oil and dodecylbenzene oil;
2. Operating temperature: -30??C to 105??C or -40??C to 105??C.

Applicable Environment:
1. Ambient temperature not exceeding -40??C to 105??C;
2. Low UV exposure;
3. Suitable for use inside equipment with no exposure to external air.

Applicable Equipment:
Suitable for oil-immersed transformers, instrument transformers, switches, capacitors, and other power transmission and transformation equipment and their associated components.

Applicable Media:
Transformer oil, dodecylbenzene oil.

Basic Properties:

Nitrile rubber has excellent oil resistance, second only to polysulfide rubber and fluororubber, and offers excellent wear resistance and airtightness. However, Nitrile rubber is not resistant to ozone and aromatic, halogenated hydrocarbons, ketones, and ester solvents, making it unsuitable for use as an insulating material.

Product Name	outer diameter	inner diameter	high	Matching rubber pad	outer diameter	inner diameter	high
High-pressure rubber beads	29	12?	17	rubber pad	90	65?	6
Low-pressure rubber beads	25	12?	15	rubber pad	45	28?	6
Low-pressure rubber beads	35	16?	15	rubber pad	72	45?	6
Low-pressure rubber beads	35	20?	15	rubber pad	72	45?	6
Low-pressure rubber beads	40	24?	18	rubber pad	85	55?	6
Low-pressure rubber beads	50	30?	18	rubber pad	85	55?	6
Low-pressure rubber beads	50	33?	18	rubber pad	85	55?	6
Low-pressure rubber beads	72	42?	24	rubber pad	96	66?	6
Low-pressure rubber beads	72	45?	24	rubber pad	96	66?	6
Low-pressure rubber beads	72	48?	24	rubber pad	110	88?	8
Low-pressure rubber beads	80	56?	24	rubber pad	120	85?	8
