Description

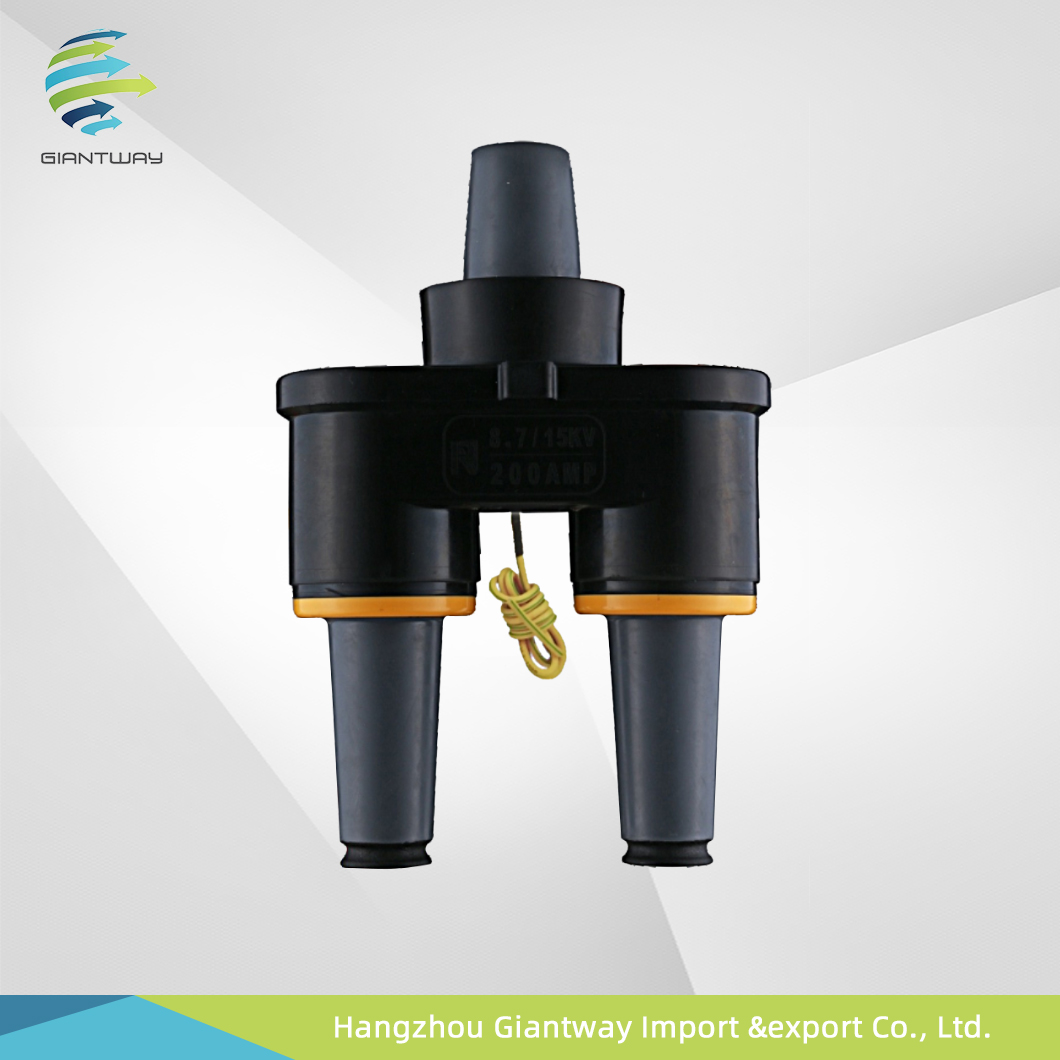

The 15kV / 200A double pass bushing joint is connected with the bushing base to realize the conversion between single circuit and double circuit.
This product is mainly used for high-voltage electrical equipment such as American box transformer and outdoor ring network switchgear.

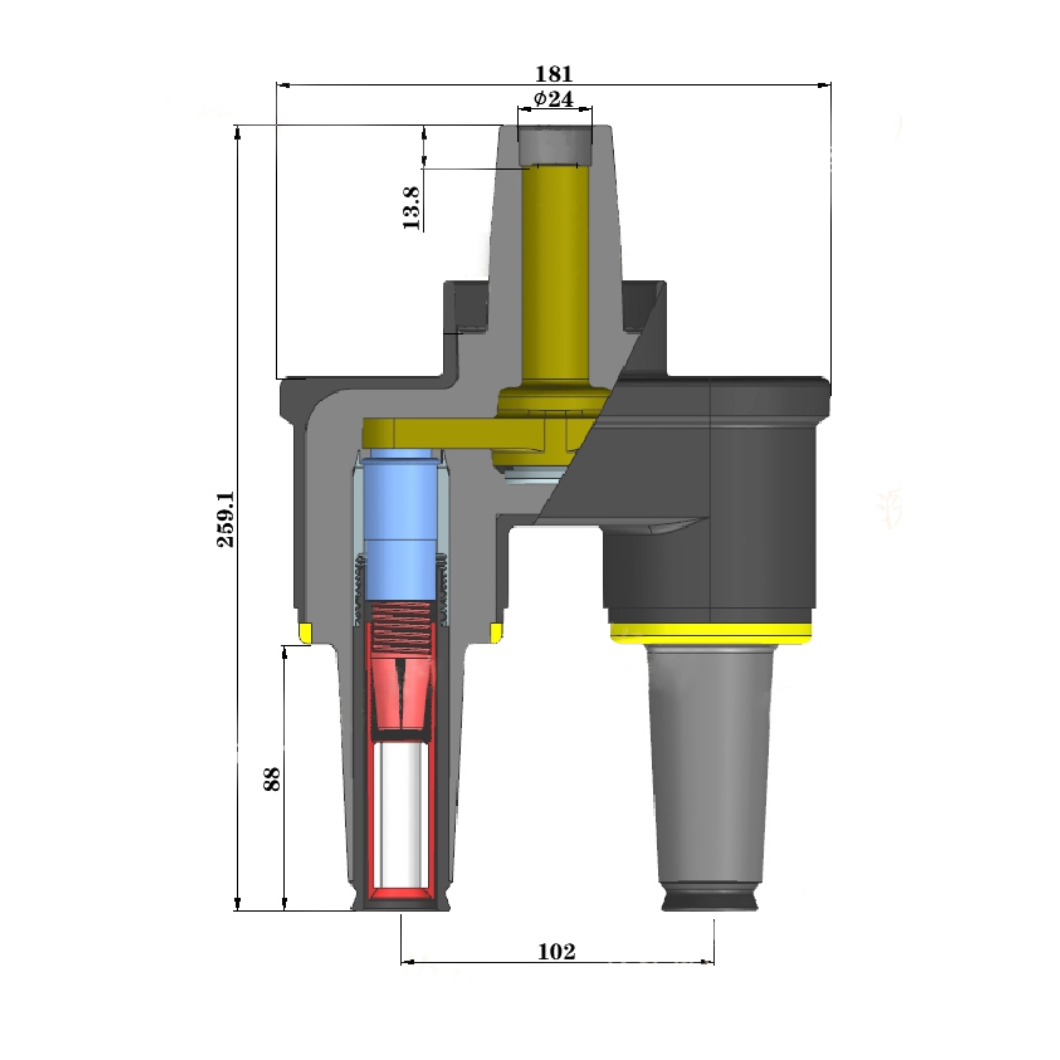

product structure:
1.Insulation
2.Interface Threads
3.Torque Limiter
4.Yellow locating ring
5.Copper Connector
6.Arc suppression chamber
7.outer semiconducting layer
8.lock slot
Packaging accessries：
Tow-way connector 3 pcs
Common ground wire 1 set
Double pass pressing plate 3 pcs
pull rod 3 sets
Dust cover 6 pcs
Cleaning paper 3 packs
Silicone grease 2 pcs
Packing box 1 copy
Packing bag 1 copy
Instructions 1 copy
Certificate 1 copy
| order number | Cable cross-sectional area/mm² | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRST-15/200-35 | 35 | 7.0-7.5 | 17.0-19.0 |
| NRST-15/200-50 | 50 | 8.0-8.5 | 18.0-20.0 |
| NRST-15/200-70 | 70 | 9.8-10.0 | 20.0-21.4 |
| NRST-15/200-95 | 95 | 11.4-11.7 | 21.6-23.1 |
| NRST-15/200-120 | 120 | 12.8-13.2 | 23.0-24.6 |
| NRST-15/200-150 | 150 | 14.2-14.7 | 24.4-26.1 |
