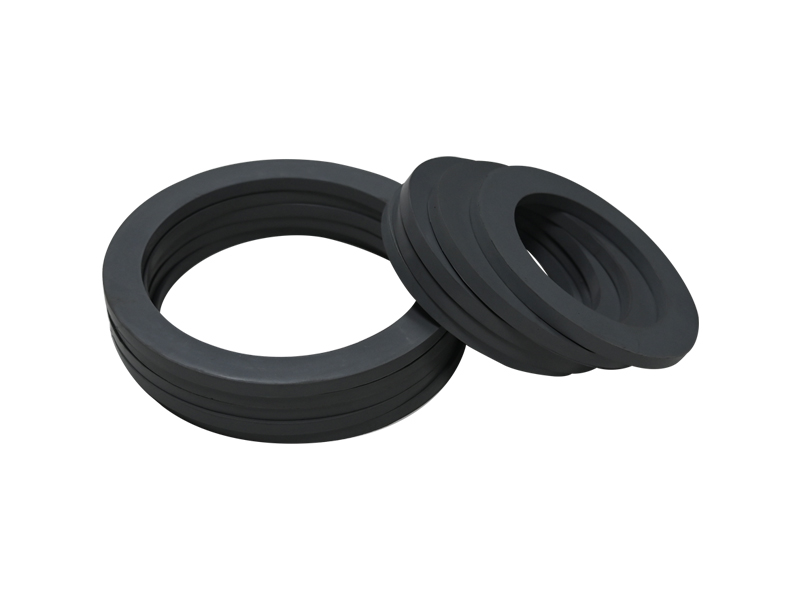

Oil-Immersed Transformer Acrylic Rubber Gasket

Features:
1. Excellent oil resistance; stable performance of transformer oil in hot oil (150oC);
2. Excellent resistance to weathering, UV aging, and ozone aging; service life in equipment is over 20 years, pioneering maintenance-free transformers in China;
3. Excellent high-temperature resistance;
4. Operating temperature: -30oC~180oC or -40oC~180oC.
Applicable Environment:
1. Ambient temperature: -30oC~180oC or -40oC~180oC;
2. Areas with strong ultraviolet radiation;
3. Parts exposed to air.
A…

Category: Insulation Material

SKU: OITAR-322

Description
Additional information

Description

Features:

1. Excellent oil resistance; stable performance of transformer oil in hot oil (150oC);

2. Excellent resistance to weathering, UV aging, and ozone aging; service life in equipment is over 20 years, pioneering maintenance-free transformers in China;

3. Excellent high-temperature resistance;

4. Operating temperature: -30oC~180oC or -40oC~180oC.

Applicable Environment:

1. Ambient temperature: -30oC~180oC or -40oC~180oC;

2. Areas with strong ultraviolet radiation;

3. Parts exposed to air.

Applicable Equipment:

Suitable for oil-immersed transformers, instrument transformers, and other power transmission and transformation equipment and their supporting components.

Applicable Medium:

Transformer oil.

Product Name	outer diameter	inner diameter	high	Matching rubber pad	outer diameter	inner diameter	high
High-pressure rubber beads	29	12?	17	rubber pad	90	65?	6
Low-pressure rubber beads	25	12?	15	rubber pad	45	28?	6
Low-pressure rubber beads	35	16?	15	rubber pad	72	45?	6
Low-pressure rubber beads	35	20?	15	rubber pad	72	45?	6
Low-pressure rubber beads	40	24?	18	rubber pad	85	55?	6
Low-pressure rubber beads	50	30?	18	rubber pad	85	55?	6
Low-pressure rubber beads	50	33?	18	rubber pad	85	55?	6
Low-pressure rubber beads	72	42?	24	rubber pad	96	66?	6
Low-pressure rubber beads	72	45?	24	rubber pad	96	66?	6
Low-pressure rubber beads	72	48?	24	rubber pad	110	88?	8
Low-pressure rubber beads	80	56?	24	rubber pad	120	85?	8
