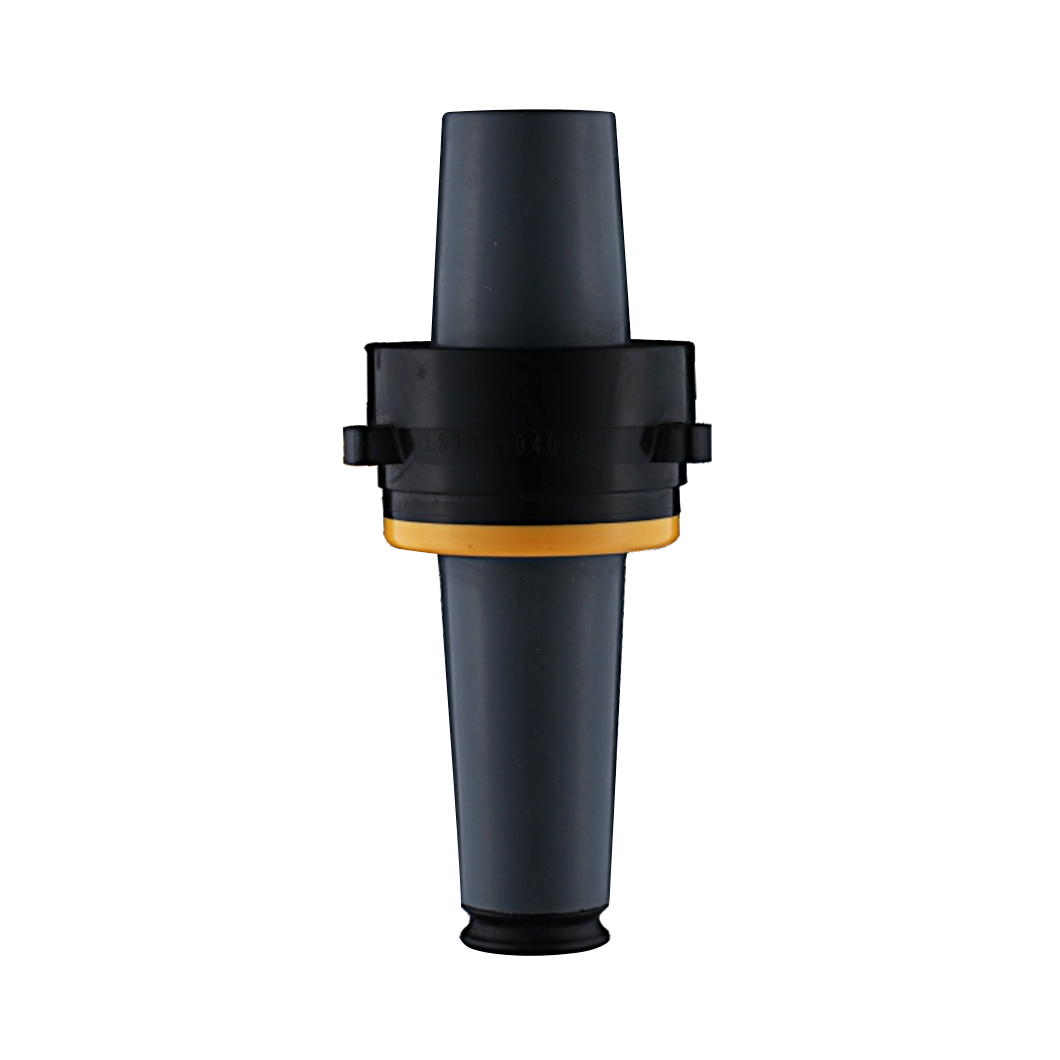

Description

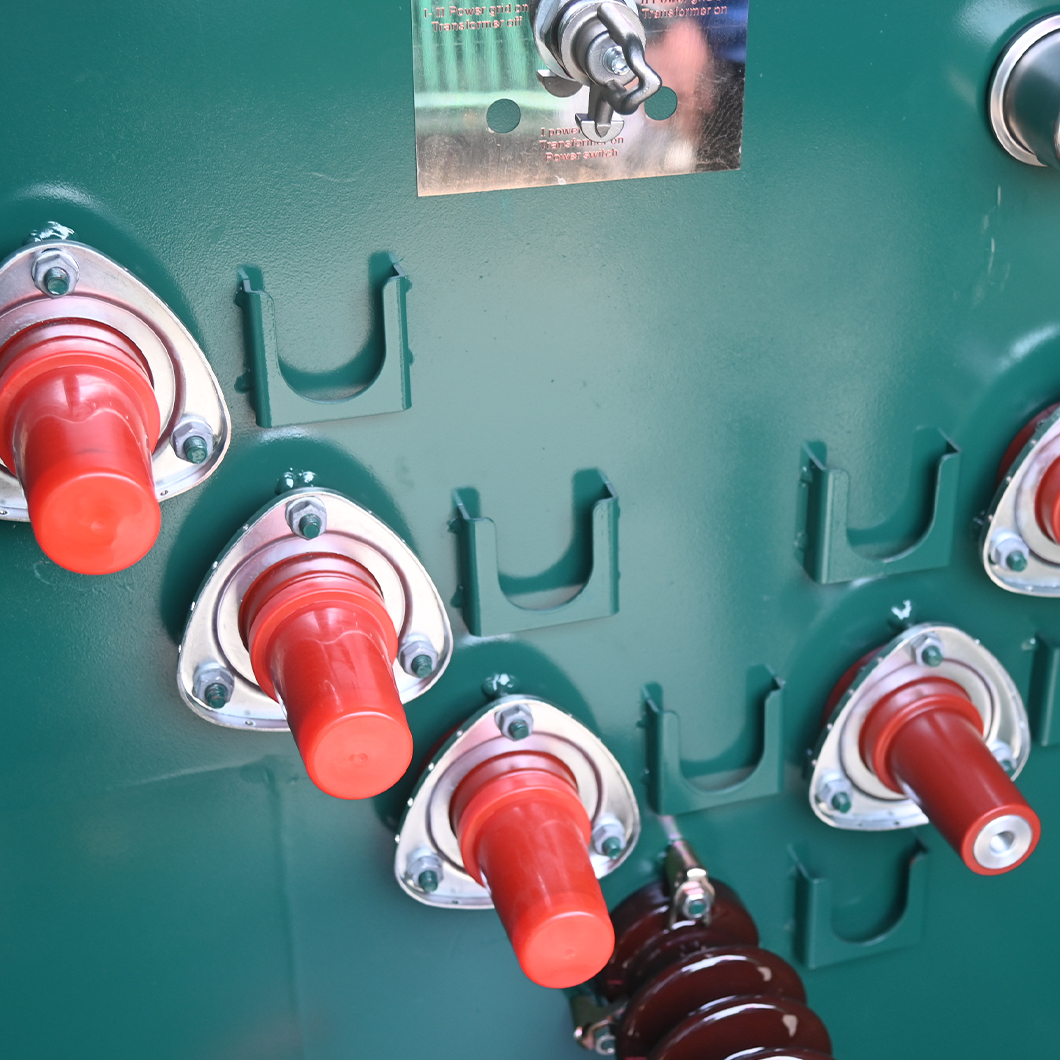

The 15kV / 200A single pass bushing joint is mainly used for the high-voltage electrical connection of American box transformer and outdoor ring network cabinet. The advanced design inside the single pass pipe ensures that the arc can be extinguished normally when it is disconnected from the elbow joint.
| order number | Cable cross-sectional area/mm² | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRDT-15/200-35 | 35 | 7.0-7.5 | 17.0-19.0 |
| NRDT-15/200-50 | 50 | 8.0-8.5 | 18.0-20.0 |
| NRDT-15/200-70 | 70 | 9.8-10.0 | 20.0-21.4 |
| NRDT-15/200-95 | 95 | 11.4-11.7 | 21.6-23.1 |
| NRDT-15/200-120 | 120 | 12.8-13.2 | 23.0-24.6 |
| NRDT-15/200-150 | 150 | 14.2-14.7 | 24.4-26.1 |

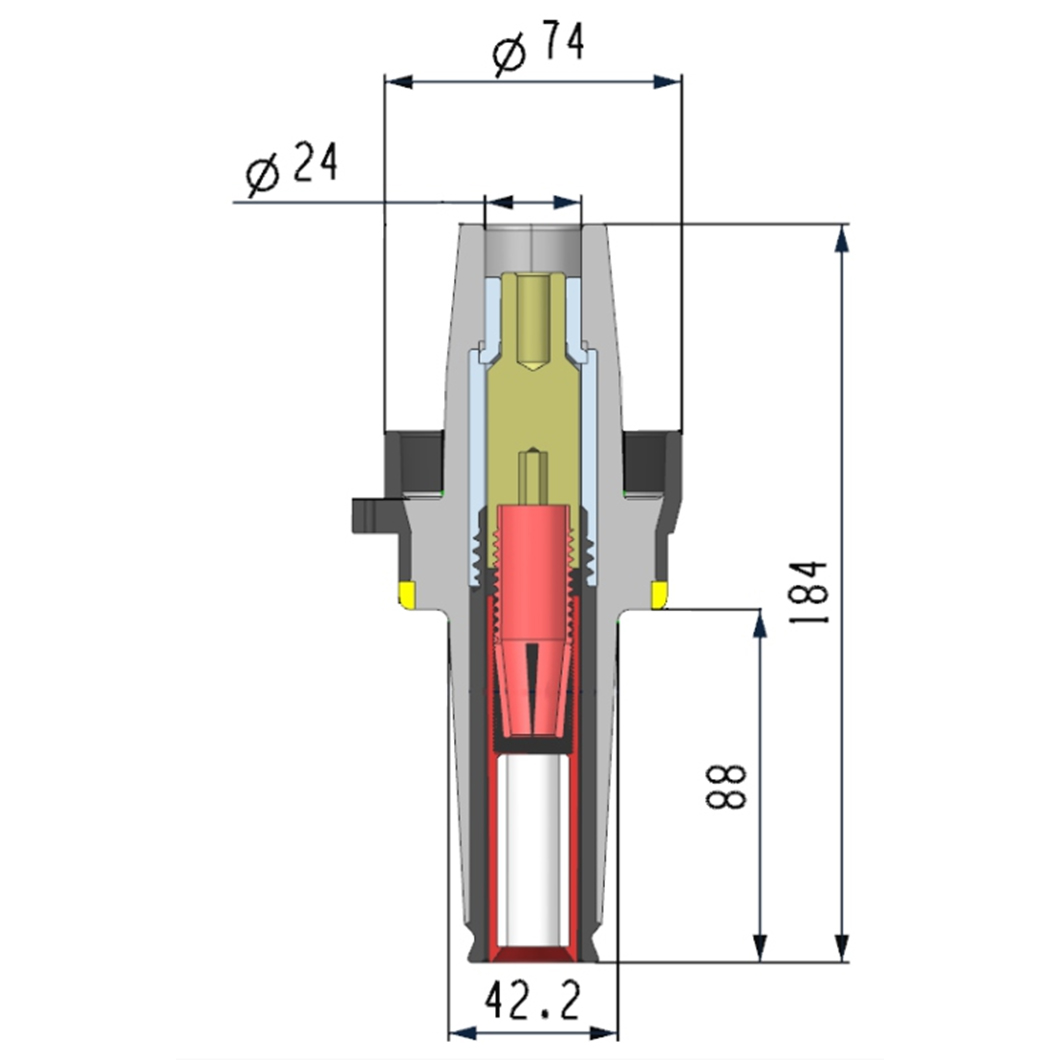

product structure
Iusulation
Yellow locating ring
outer semiconducting layer
Threaded Base
Hex broach
deadlock connector
Arc suppression chamber
Packaging accessries
Loadbreak transformer 3 pcs
Common ground wire 3 sets
Dust cover 3 pcs
Cleaning paper 3 packs
Silicone grease 2 pcs
Special hexagon wrench 1 pc
Packing box 1 copy
Packing bag 3 pcs
Instructions 1 copy
Certificate 1 copy
