Description

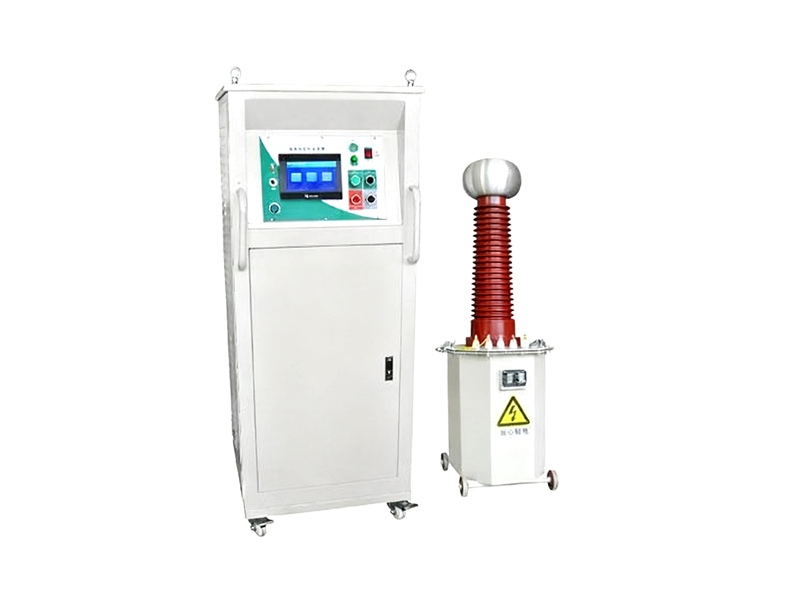

AC/DC Hipot Test Set is automatic withstand voltage test devices with advanced performance. It is used to carry out dielectric strength test under rated voltage for all kinds of electrical equipment, components and insulation materials. It checks dangerous flaws which assures electrical equipment continuous working.
| Basic Specifications | |
| Input Voltage | AC 220V or AC 380±10%, 50Hz±1 |
| Low Voltage Output | AC 0-250V or AC 0-430V |
| LV Current | 0-250A |
| Output Capacity | 0-300kVA (Can be Customized on demand.) |
| HV Voltage | 0-300kV (Can be Customized on demand.) |
| HV Current | 0-2A |
| Timing Range | 0-9999S |
| Voltage Accuracy | ≤ 1.5%±1digit(F.S) |
| Current Accuracy | ≤ 2.0%±1digit(F.S) |
