Description

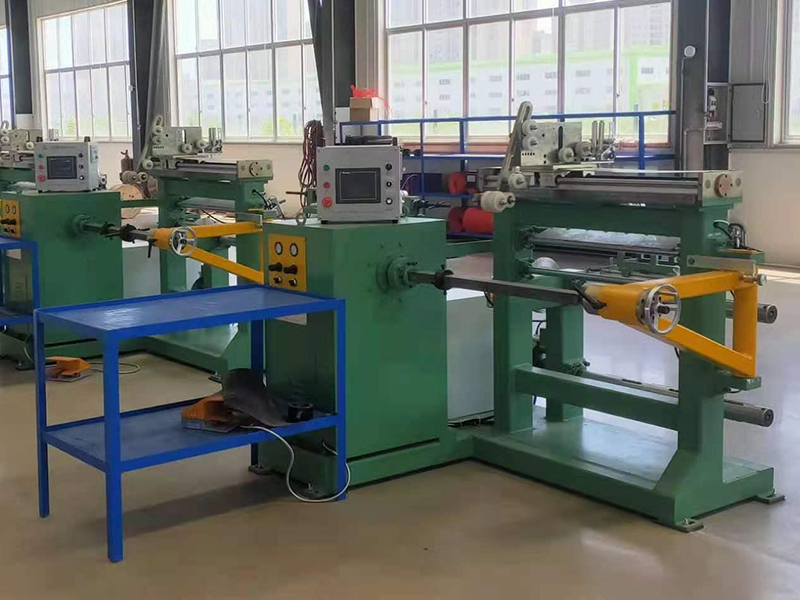

ZBR-600/800/1000/1200 High Pressure Wiring Machine
① Our high voltage wiring machine constantly puts forward various technical requirements in the case of customer use, our company constantly upgrading technology update, winding coil after unloading coil. Tailframe 90° rotation directly pull out, at present high voltage wire winding machine, at present in the transformer winding machine industry only Jiangxi Hongjun, 240 RPM, ￠0.2-￠4.0 electromagnetic wire all realized, in the winding of wire section line protection, to ensure constant tension stability, ensure the deformation of wire in control.
② Technical support for the main export of hzgiantway for many countries enterprise users put forward 33KV-35KV transformer high voltage ￠0.1-￠0.8 electromagnetic line all meet the requirements; My company winding machine research and development of the latest design scheme,
③ The equipment consists of: winding mechanism. Wiring mechanism. Pay-off rack. Damping device and other components of the new equipment.
Main technical parameters
|
ZBR-800 |
||
|
1 |
Center for high |
850 mm |
|
2 |
The widest stroke of the line |
800 mm |
|
3 |
Maximum working moment |
max 800 N/M |
|
4 |
Dimensions of wound spool |
40×40×950 |
|
5 |
Working speed (mechanical double speed) |
0—240r/min |
|
6 |
Speed way |
Stepless frequency control |
|
Outer diameter≤700mm |
||
|
7 |
Applicable scope of workpiece |
The inner diameter≥80mm |
|
The axial high≤800mm |
||
|
8 |
Workpiece weight (coil)： |
Max：≤250kg |
|
9 |
Number of layer insulation |
2Set of |
|
10 |
Applicable workpiece specification |
Paper roll diameter:≤ 400mm |
|
Inside diameter of paper roll76mm |
||
|
The paper roll width≤800mm |
||
|
The thickness of the：0.08-0.5mm |
||
|
Maximum tension of layer insulation |
≤50Nm |
|
|
11 |
Main motor power |
5.5kw |
|
12 |
Count range |
99999 |
|
13 |
Flat wire: |
Max5×12mm |
|
Wire specifications |
ΦΦ0.2mm×Φ4.0mm |
|
|
14 |
Minimum adjustment wire diameter |
0.01mm |
|
15 |
Line spacing setting range |
0-15mm |
|
16 |
Adjustment of line gauge for flat line row wheel |
0-15mm |
|
17 |
The row wheel adjusts the distance vertically |
0-300mm |
|
18 |
Main shaft supports jacking device |
Rotatable tripod structure |
|
19 |
Flat wire material frame tension supply |
electric |
|
20 |
Axis diameter of reel |
Φ36mmΦ30mm |
|
21 |
Number of shaft |
1 the root |
|
Outer diameter |
MaxØ750mm |
|
|
22 |
The width of the |
150-300mm |
|
22.1 |
The weight of the |
200KG |
|
23 |
Material frame moving form |
Main shaft line linkage movement |
|
24 |
Winding way |
Straight and backwards |
|
25 |
Maximum tension of flat wire |
100N |
|
26 |
The weight |
about2100kg |
