Applications:

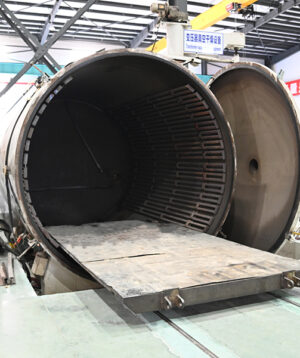

Distribution transformer vacuum drying equipment is primarily used for vacuum drying various high-voltage insulation products in the transmission and distribution transformer industry, such as transformers (10kV-35kV), high-voltage CT/PT, high-voltage bushings, power capacitors, cables, motors, and insulation paper.
Features:
Technical Advantages: We have over 20 years of application development experience, resulting in mature, safe, reliable, energy-efficient, and environmentally …

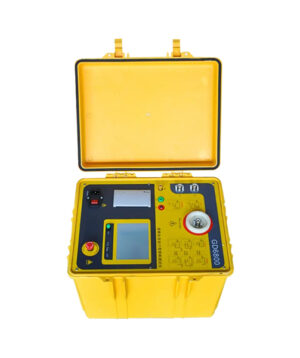

The variable-frequency automatic dielectric loss tester is a high-precision testing instrument used in power plants, substations, and laboratories to measure the dielectric loss tangent value and capacitance of various high-voltage power equipment. The instrument features an integrated design, incorporating a built-in dielectric loss test bridge, variable-frequency regulated power supply, step-up transformer, and a high-stability SF6 standard capacitor. The high-voltage test source is generated …
This machine adopts the international most advanced PLC control technology,with the advantages of complete function and simple operation. It can perform the forward and reversal winding and counting operation,power failure protection, wire disconnection protection, stop brake, setup of winding position, location and fault prompt,meanwhile,it can set the procedures and display the operation state through the touch panel,and, its interface can properly display the wire diameter, rotation speed, nu…
Product Introduction:

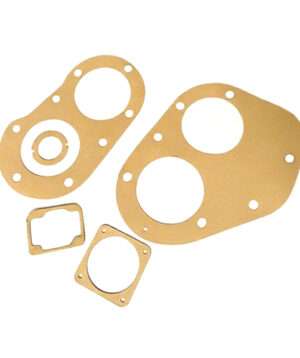

Gasket paper is plant fibre, chemically treated to resist coal tar, oils, water, alcohol, grease,air, gas, gasoline and solvents of all kinds. Resists heavy pressure–Strong but Compressible.
Gasket paper is used in oil applications, alcohol distilleries, shipyards, equipment makers and industrial plants for pump, pipe, tank, gear, the industrial, petroleum, petrochemical and automotive industries ,flange joints.
Features:
Other dimensions and thicknesses are available on r…

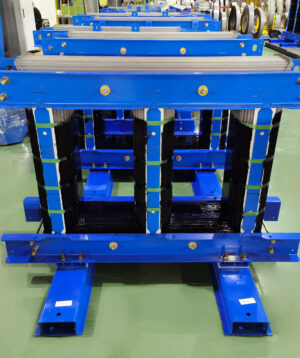

CANWIN maintains a long-term stable direct supply relationship with major steel mills around the world for silicon steel sheets, fully ensuring the quality of the core material silicon steel sheets.

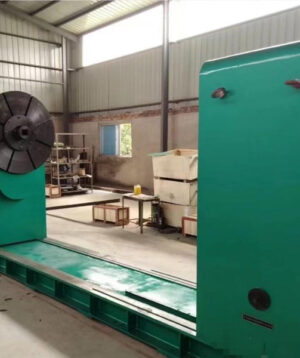

Winding machine HJ-1T/HJ-2T/HJ-2.5T/HJ-3T/HJ-5T/HJ-10T
Description
1.Purpose:winding machine is used for winding dry high pressure coil manufacturing.
2.Mainpartsoftheequipment:
A:Winding reduce rtransmission:1set
B:Winding tail seat:1set
C:Winding flower plate:1set
D:1 set of electric control system
E:Six-axis magnetic powder pay-off stand:1set
3.The over all structure of the machine is mainly driven by turbine reducer,brake motor parking is stable and reliable (frequency converter speed regula…

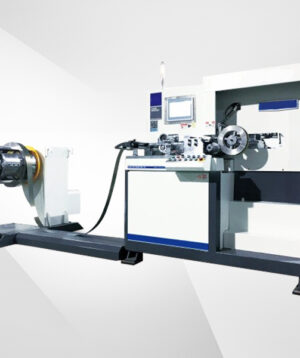

1. Fully automatic cutting and winding.
2. Two models,800 &1400,equipped with hydraulic forming machines.
3. Produce both Distributed Gap Core and Toroidal Core.
4. With vertical 2-15 steps,1-3 pieces per step.
5. The gap size and tension can be adjustable on the HMI.
6. Automatic robotic arms for material unloading are optional.
Model
RCW800-250
RCW1400-400
Maximum Processing Diameter
800mm
1400mm
Die Diameter
115-750mm
150-1350mm
Steel Strip Width
40-250mm
100-400mm
Steel Strip Thickness
0.18-…

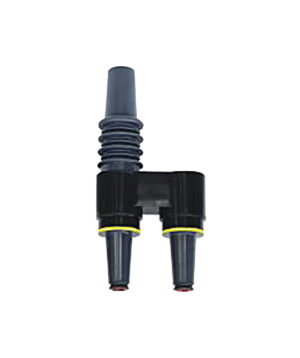

200A/600A Specific Junction provide two,three or four 200A loadbreak and600A deadbreak,15kV mixed interfaces on one side that are internally busedtogether and meet all requirements of ANSI/IEEE 386-Separable InsulatedConnector Systems.When mated with a comparably rated product,the junctionprovides a fully shielded, fully insulated,separable connection for loadbreak ordeadbreak operation.
It is available with an adjustable bracket for mounting at various operatingangles on flat or cured surfaces.
