200A Loadbreak junctions are used in pad-mounted apparatus,underground vaults,and other apparatus to sectionalize, establish loops, taps,or splices, and to facilitate apparatus changeouts.Sectionalizing a cable run to find and isolate a cable fault is made easy when a loadbreak junction is used with 15 kV Class loadbreak elbows.When mated with a comparably rated product,the junction provides a fully shielded, submersible , separable connection for loadbreak operation.The body is molded of high q…

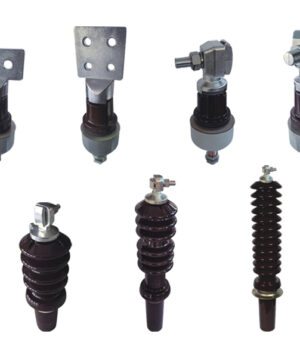

BR Transformer Bushing Product Description
Product Name
: NBR Standard Transformer Bushing
Application
: For oil-immersed transformers, distribution transformers, and power transmission equipment.
Product Overview
Our NBR standard transformer bushing is designed for reliable insulation and sealing in power transformers. Made of high-quality nitrile butadiene rubber, it provides excellent oil resistance, aging resistance, and high-temperature stability, ensuring long-term stable performance under…
Product Features
1. Turnkey Solution
a. Integrates photovoltaic inverter, transformer, and switchgear into one unit, with complete pre-commissioning and commissioning, saving on-site installation and commissioning time.
b. Containerized casing eliminates the need for specialized lifting equipment, facilitating transportation and hoisting.
2. Strong Environmental Adaptability
a. Strong Corrosion Resistance: The containerized casing uses high-weather-resistant steel plates. High-weather-resistant …

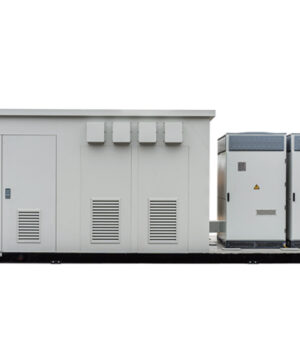

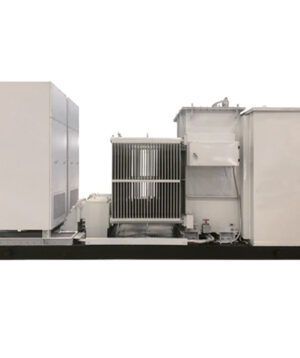

Product Description:
This integrated energy storage booster converter supports high-voltage side voltages from 6kV to 35kV and low-voltage side AC voltages from 0.315kV to 0.69kV.
Transformers include various models of American, Chinese, and dry-type transformers, with energy efficiency ratings conforming to design requirements.
The DC side voltage can reach up to 1500VDC. The maximum capacity of a single integrated energy storage booster converter is 6.8MW.
Energy storage systems can be connect…

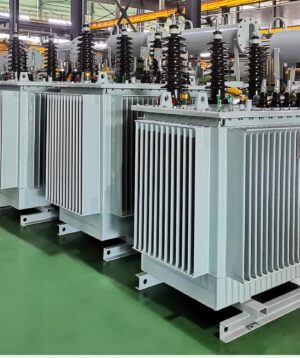

I. Structural Advantages
1. The core structure has been changed from the traditional oblong core to a near-elliptical core structure,
improving the transformer’s resistance to sudden short circuits.
2. High-density laminated wood is used as clamping components. By changing the copper cable routing method,
the internal tank width is significantly reduced, making the overall structure more compact. This also helps suppress
stray losses caused by leakage magnetic fields.
3. The internal transformer…
NMN(6640)is made of two layers of Nomex paper and one layer of PET film,coated with grade H thermal upgraded adhesive.It has high mechanical properties, dielectric and thermal upgrade properties, and low dissipation factor.It can be used as turn and backing insulating material in grade F and grade H transformers,motors and other electrical appliances. The NMN can work for a long time in a 180?? environment.
Recommended width
910mmand narrower.Tailor-made width is available.
Storage
The product sh…

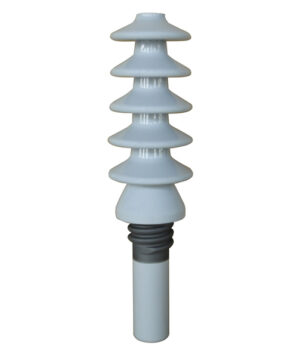

Our AS/NZS standard transformer bushings are designed for oil immersed distribution and power transformers for the Australian market. With reliable insulation performance, strong mechanical strength, good sealing, and stable quality, the bushings can be customized according to different voltage classes, dimensions, and installation requirements. OEM and technical drawing support are available.
1. Designed for Australian Market
Complying with AS/NZS standard requirements, suitable for transformer…
Oil duct strip is composed of rectangular strip and diamond dotted insulation paper,it’s widely used in oilimmersed transformer.The product can avoid the weaknesses of easy deformation,easy to produce displacement and others.It can combine with the coil very well,has better mechanical and electrical properties.
Insulation molding parts include end ring, a pressing ring, the whole insulation tube stay, angle ring, lead angle ring piece, overall angle ring and series products. They are produced by…
Product Introduction:
Cork rubber sheet the compressibility of cork with the fexibility characteristics of rubber to make an excellent sealing material. All are available in rolls cut to your specifcations for thickness and width.
Nitrile bonded cork has good oil resistance, is relatively cheap, and seal well at low flange pressures and temperatures of up to 125oC
Cork materials are used in: sumps, crank case covers, inspection doors, valve covers, electrical transformers, electrical switchgear,…

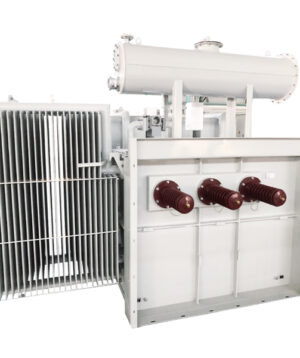

What is an Oil-Filled Transformer? Oil-filled or oil immersed type transformers are?voltage conversion devices that use oil to keep the transformer cool. This type of
