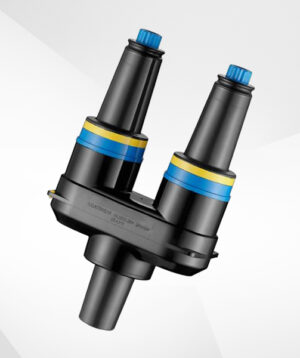

15kV / 200A
Loadbreak Feed-thru Insert
The loadbreak feed-thru insert threads onto a standard 200A bushing well and provides dual loadbreak bushing interfaces.It can convert radial-feed transformers to feed thru transformers and add in-line arrester protection if needed.The torque limit ratchet feature prevents the bushing well stud from breaking during installation. The ratchet feature allows users to rotate the feed thru insert for 360°to orient the feedthru insert in the desired position.The …
Lightning Arrester
This zinc oxide surge arrester is used to protect transformers and electrical equipment from lightning surge and switching overvoltage. It features fast response, low leakage current, stable protection performance and reliable insulation strength. The product is suitable for power transformers, distribution transformers, compact substations, switchgear and power distribution systems.
Voltage class
Service scope
Virtual value of arrester rated voltage (kV)
Gapless arrester
Virt…
Oil-immersed power transformers are electrical appliances that use insulating oil as the insulating medium and are composed of cores, coils, voltage regulator switches, oil tanks, etc.to change voltage and transmit AC power.It has the characteristics of small size and strong weather resistance. Applicable to power systems, industrial and mining enterprises, transportation, post &telecommunications and scientific research bureaus, etc.It is divided into flat stacked core series, three-dimensional…
HJ-600-3 High Pressure Triple Cabling Machine
At the same time can be wound 3 coil of oil variable high pressure coil manufacturing, winding speed of 250 RPM, the main motor power of
7.5KW, coil radius of Φ350mm, wiring distance 600mm, and can meet the wire diameter in (Φ0.2- Φ3.5) enamelled copper or aluminum wire, (including flat wire 5*10) enamelled flat copper or aluminum wire, Paper film coated copper or aluminum flat wire with an area of 50 square meters or less, suitable for oil high pres…

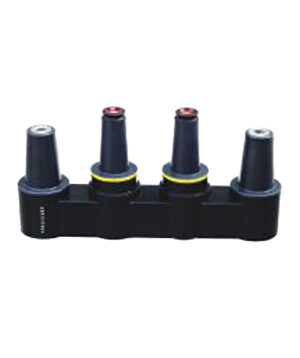

600A/200A Deadbreak mixed Junction is compound of 200A loadbreakjunction and 600A deadbreak junction.When mated with a comparably ratedproduct,the junction provides a fully shielded,separable connection forloadbreak or deadbreak operation.The 200A interface is connected with 200Aloadbreak connectors and the 600A interface is connected with deadbreakconnectors.It is available with an adjustable bracket for mounting at variousoperating angles on flat or cured surfaces.The body is molded of high qu…
Dry-type transformers, unlike conventional liquid transformers, are not required to be kept inside catch basins or fire resistant vaults, and no toxic gases are released from them. As dry-type transformers are highly safe, they can be installed indoors as well as nearby loads, making the whole system more competent.
I. Product Description Converter technology encompasses three operating modes: rectification, inversion, and frequency conversion,
with rectification being the most widely used. Most industrial rectified DC power supplies are generated from the AC power grid through
rectifier transformers and rectifiers. The electrochemical industry is the largest user of rectifier transformers, used for electrolyzing
non-ferrous metal compounds to produce aluminum, magnesium, copper, and other metals; electroly…
The loadbreak elbow is a fully shielded and insulated termination connecting underground cable to transformers,switchgear,and other apparatus equipped with loadbreak bushings,junctions,or other loadbreak connectors. It meets allthe requirements of IEEE Standard 386(small interface,meet figure 7B in IEEE Std 386-2016).
The loadbreak elbow is molded using high quality peroxide-cured insulating and semi-conducting EPDM rubber,itinclude a stainless steel pulling eye. An optional capacitive test poin…
Product Introduction:
Phenolics are a fabricated reinforced laminate produced from a fine weave cotton cloth impregnated with a phenolic resin binder. The fine weave linen yields good mechanical properties,dimensional stability and a better finish for machined .
