Description
Because of their good thermal, electrical and mechanical characteristics, coupled with the fact that on curing they produce no volatile by-products and undergo only a small volume of shrinkage, epoxy resins have found considerable application in the manufacture of bushings for the electrical insulation industry.

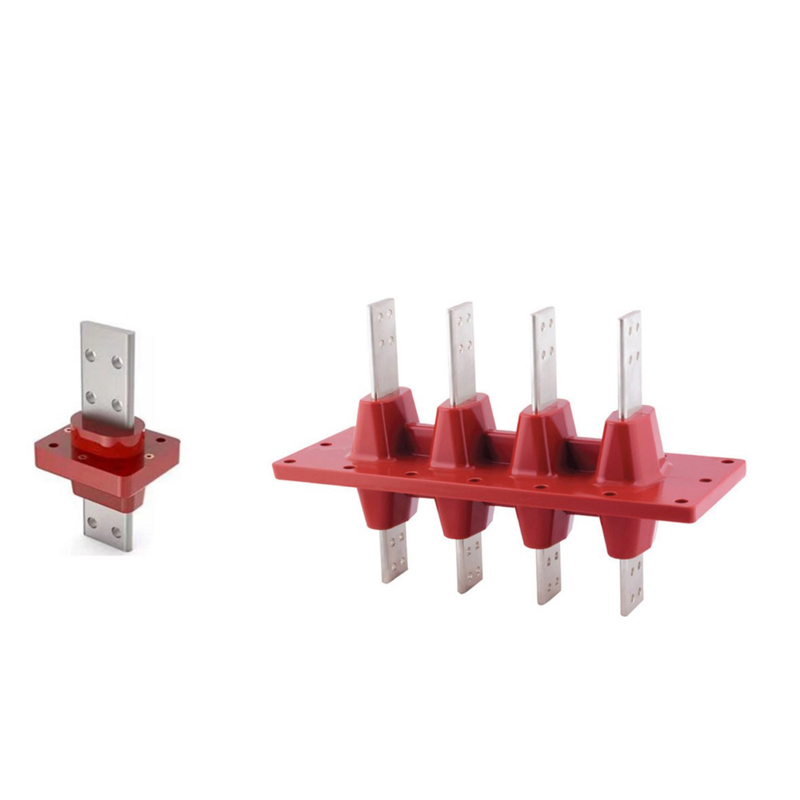

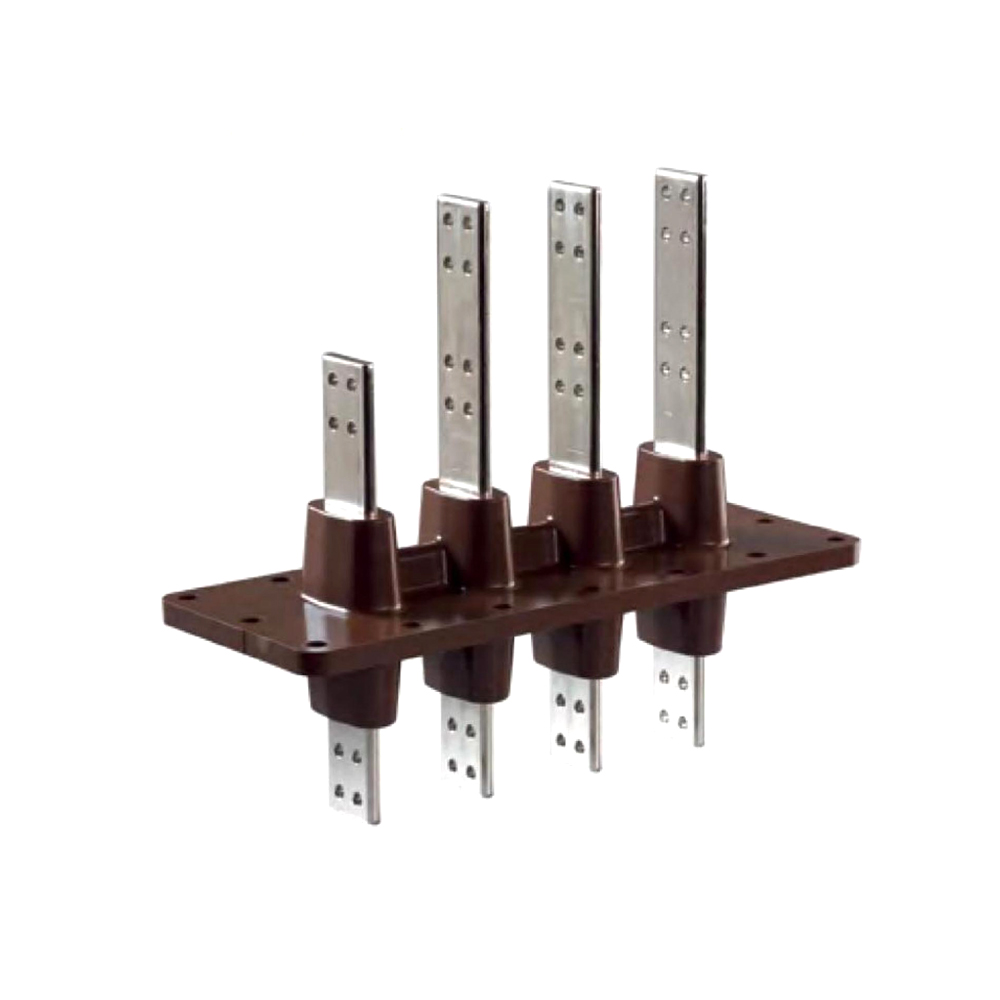

Cast resin type bushings utilise moulded epoxy resins as insulation. After preparing and mixing, the resin compound is cast under pressure into its moulded form. The mould is then fixed on a clamping unit.
Our Advantage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched

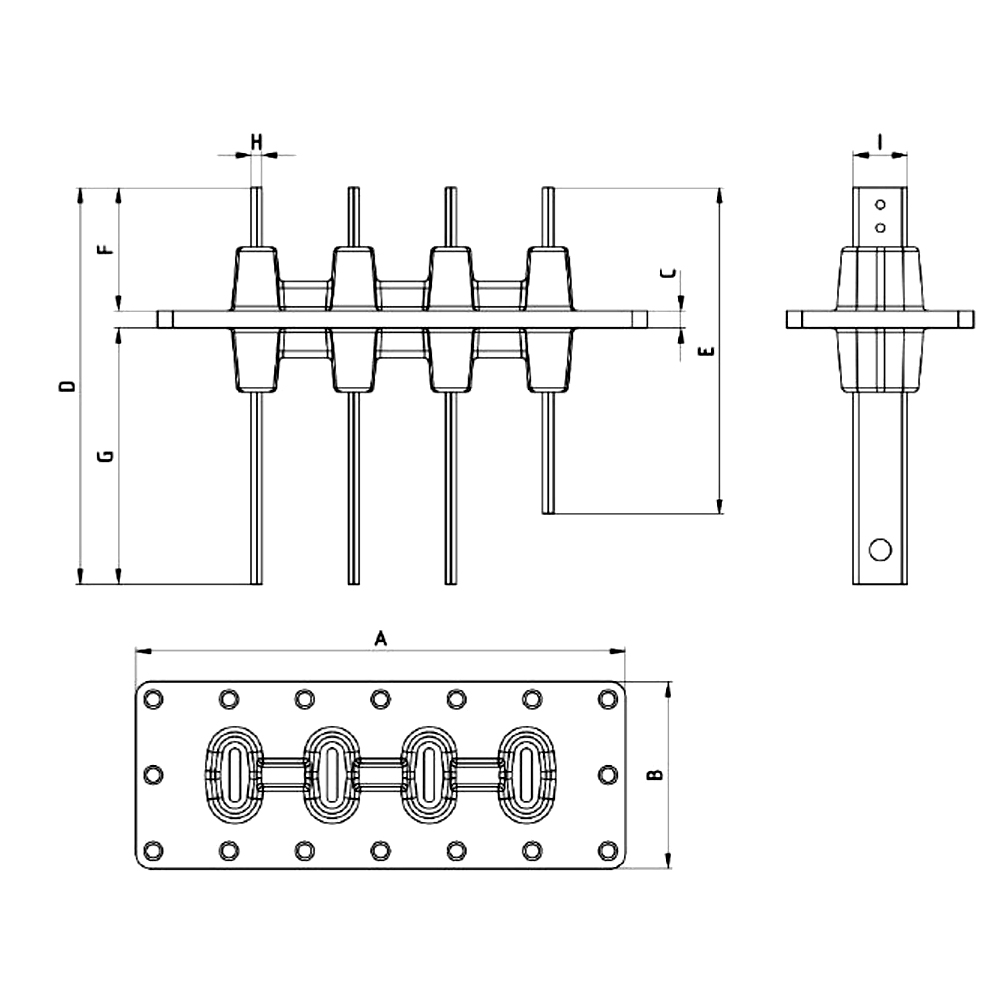

| Art No. | Drawing No. |
Rated current | A | B | C | D | E | F | G | H | I |
| A | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 000902-00 | M0710 | 800 | 575 | 219 | 20 | 375 | 375 | 158 | 197 | 125 | 63 |
| 020088-00 | M2467 | 800 | 575 | 219 | 20 | 380 | 380 | 158 | 202 | 125 | 63 |
| 000901-00 | M0711 | 1.400 | 575 | 219 | 20 | 490 | 375 | 158 | 312 | 125 | 63 |
| 004126-00 | M1078 | 1.400 | 575 | 219 | 20 | 375 | 375 | 158 | 197 | 125 | 63 |
| 004127-00 | M1085 | 1.400 | 575 | 219 | 20 | 490 | 490 | 158 | 312 | 125 | 63 |
| 004371-00 | M1470 | 1.400 | 575 | 219 | 20 | 490 | 490 | 158 | 312 | 125 | 63 |
| 004743-00 | M2232 | 1.400 | 575 | 219 | 20 | 375 | 375 | 197 | 158 | 125 | 63 |
| 004824-00 | M2410 | 1.400 | 575 | 219 | 20 | 500 | 500 | 158 | 322 | 125 | 63 |
| 000950-00 | M0857 | 1.400 | 575 | 219 | 20 | 466，5 | 144，5 | 145 | 302 | 125 | 63 |
| 000949-00 | M0859 | 1.444 | 575 | 219 | 20 | 385 | 385 | 164 | 201 | 125 | 63 |
| 004109-00 | M0164 | 1.444 | 575 | 219 | 20 | 427 | 427 | 263 | 144 | 125 | 63 |
| 004161-00 | M1160 | 1.450 | 575 | 219 | 20 | 490 | 490 | 158 | 312 | 125 | 63 |
| 004282-00 | M1236 | 2.500 | 575 | 219 | 20 | 490 | 490 | 153 | 317 | 20 | 63 |
| 000903-00 | M0712 | 2.100 | 575 | 219 | 20 | 620 | 505 | 153 | 447 | 20 | 63 |
| 004090-00 | M1050 | 2.500 | 575 | 219 | 20 | 540 | 540 | 3,395 | 180，5 | 20 | 63 |
| 004207-00 | M1205 | 2.500 | 575 | 219 | 20 | 490 | 375 | 153 | 317 | 20 | 63 |
| 004281-00 | M1304 | 2.500 | 575 | 219 | 20 | 532，5 | 417，5 | 195，5 | 317 | 20 | 63 |
| 004372-00 | M1469 | 2.500 | 575 | 219 | 20 | 605 | 605 | 153 | 432 | 20 | 63 |
| 004819-00 | M2387 | 2.500 | 575 | 219 | 20 | 529 | 529 | 319 | 190 | 20 | 63 |
| 004820-00 | M2385 | 2.500 | 575 | 219 | 20 | 615 | 615 | 160 | 435 | 20 | 63 |
| 004125-00 | M1083 | 2.600 | 575 | 219 | 20 | 605 | 605 | 153 | 432 | 20 | 63 |
| 000951-00 | M0858 | 3.150 | 575 | 219 | 20 | 415 | 415 | 195，5 | 199，5 | 20 | 63 |
| 004280-00 | M1303 | 3.150 | 575 | 219 | 20 | 6,475 | 317 | 195，5 | 452 | 20 | 63 |
