Description

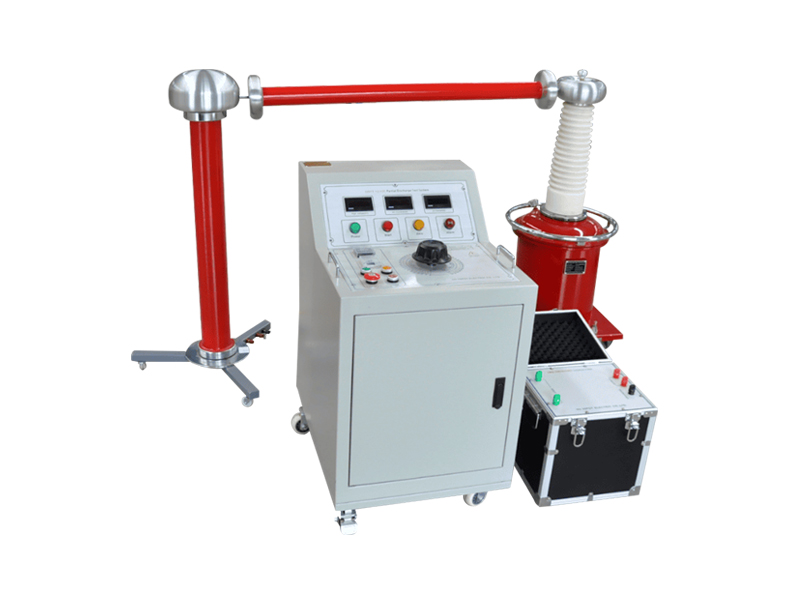

Partial Discharge Test System is used for testing i nsulation level of various insulation materials, insulation structure and electrical produ cts. It is also considered as PD power frequency source for transformers, CT/PTs, HV circuit bre akers, coupling capacitors, bushings and other power equipment.
Function:
1. Using rapid electronic protection device.
2. PD-free epoxy insulating cylinder with small PD value.
3. Low impedance voltage.
4. Strong anti-interference ability.
| Specification | Capacity(kVA) | High Voltage(kV) | Low Voltage(kV) |
| GDYT-5/50 | 5 | 50 | 0.22 |
| GDYT-50/50 | 50 | 50 | 0.22/0.38 |
| GDYT-10/100 | 10 | 100 | 0.22/0.38 |
| GDYT-50/100 | 50 | 100 | 0.22/0.38 |
| GDYT-100/100 | 100 | 100 | 0.22/0.38 |
| GDYT-15/150 | 15 | 150 | 0.22/0.38 |
| GDYT-75/150 | 75 | 150 | 0.22/0.38 |
| GDYT-150/150 | 150 | 150 | 0.38/0.6 |
| GDYT-20/200 | 20 | 200 | 0.22/0.38 |
| GDYT-100/200 | 100 | 200 | 0.22/0.38 |
| GDYT-200/200 | 200 | 200 | 0.38/0.6 |
| GDYT-25/250 | 25 | 250 | 0.22/0.38 |
