Description

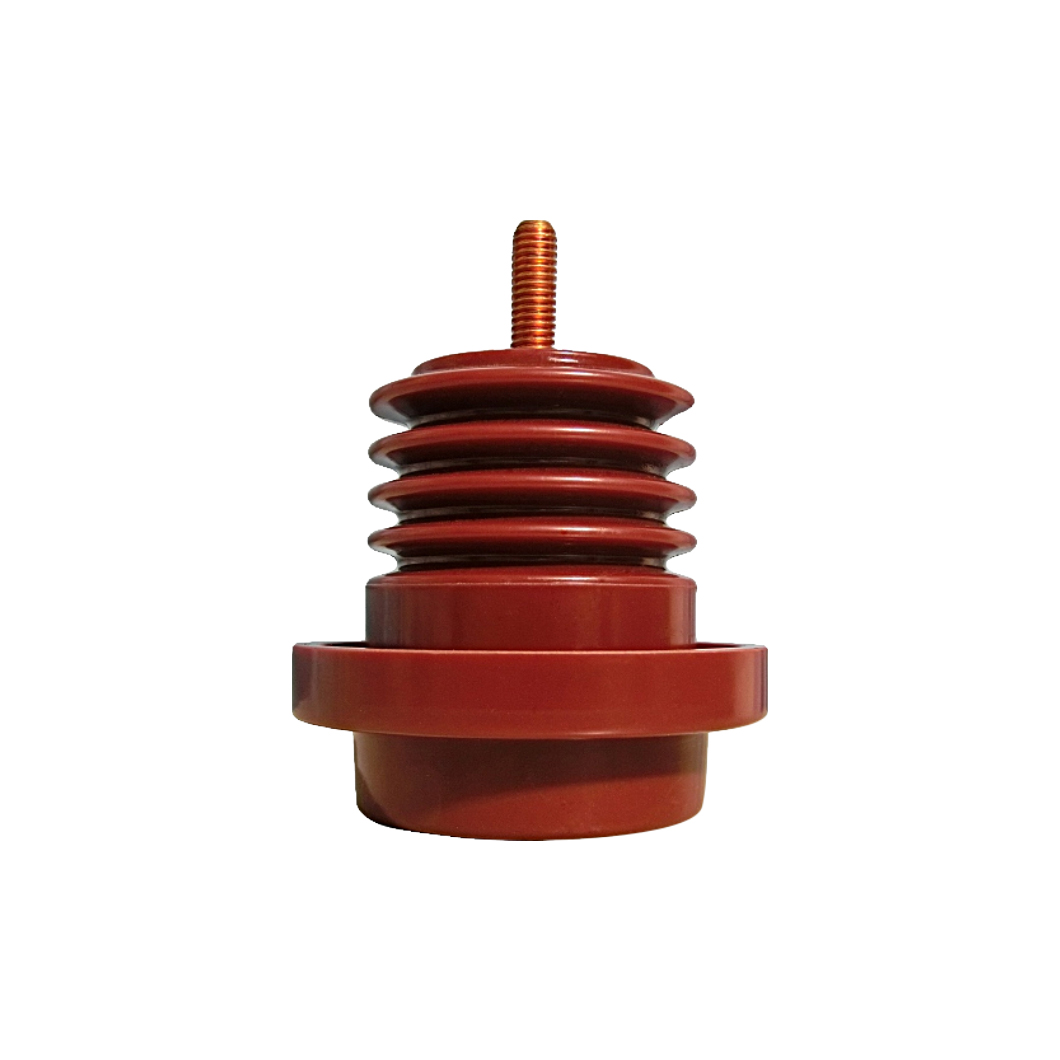

15kV 200A Casing Base For Pad Mounted Transformer
15kV/200A casing base is mainly used for American box transformer, outdoor ring network switchgear and other equipment. It is made of high-quality epoxy resin, and the design of umbrella skirt structure increases climbing.The electric distance greatly improves the electrical safety performance of the equipment.

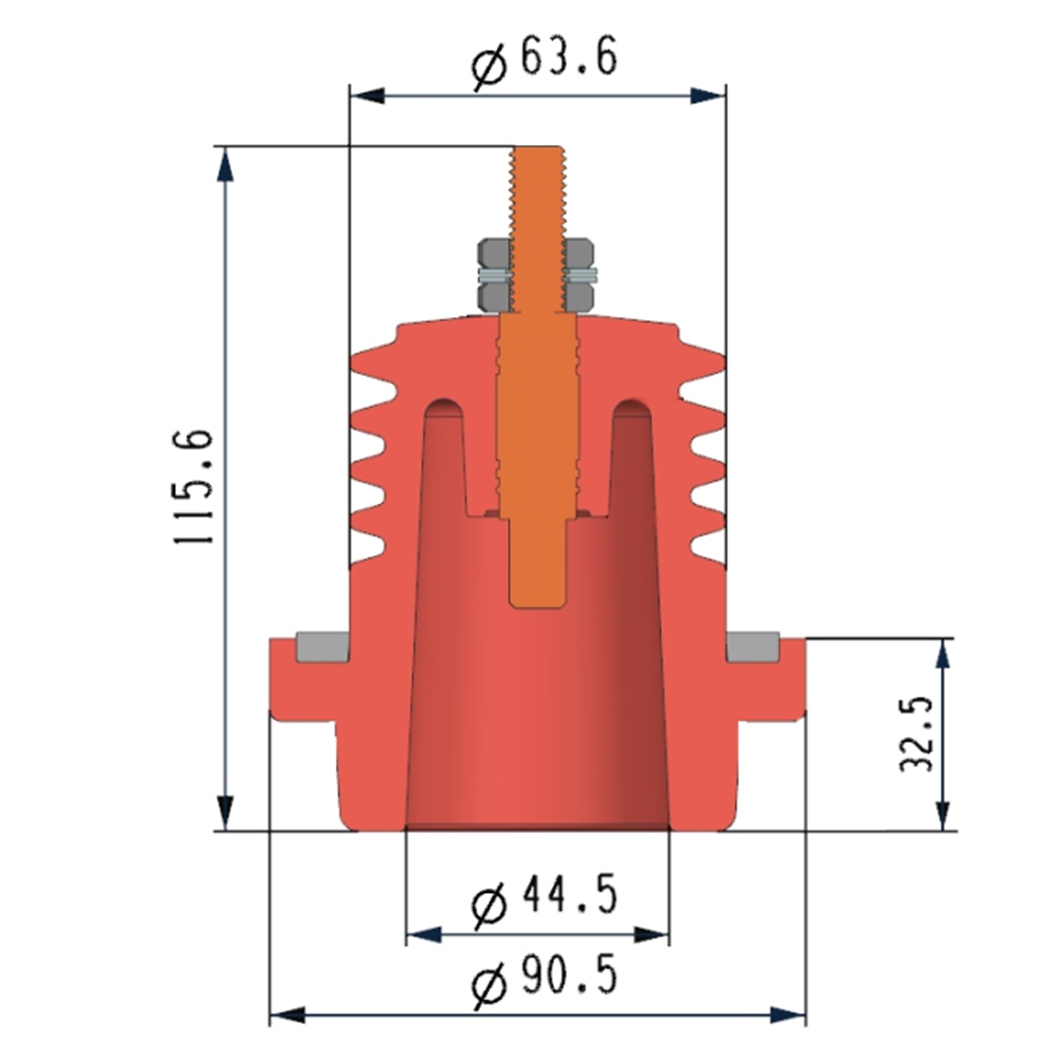

product structure:
1.Seal ring groove 2.Conductive rod 3.Epoxy casing seat body
Order Information:
| order number | Cable cross-sectional area/mm | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRTGZH-15/200-35 | 35 | 7.0-7.5 | 17.0-19.0 |
| NRTGZH-15/200-50 | 50 | 8.0-8.5 | 18.0-20.0 |
| NRTGZH-15/200-70 | 70 | 9.8-10.0 | 20.0-21.4 |
| NRTGZH-15/200-95 | 95 | 11.4-11.7 | 21.6-23.1 |
| NRTGZH-15/200-120 | 120 | 12.8-13.2 | 23.0-24.6 |
| NRTGZH-15/200-150 | 150 | 14.2-14.7 | 24.4-26.1 |
Packaging accessries
Casing Base 3 pcs
Casing Base pressing plate 3 pcs
Seal ring 3 pcs
Dust cover 3 pcs
Cleaning paper 3 packs
Silicone grease 2 pcs
5/8 nut and gasket 3 sets
Packing box 1 set
Packing bag 1 set
Instructions 1 copy
Certificate 1 copy
