Description

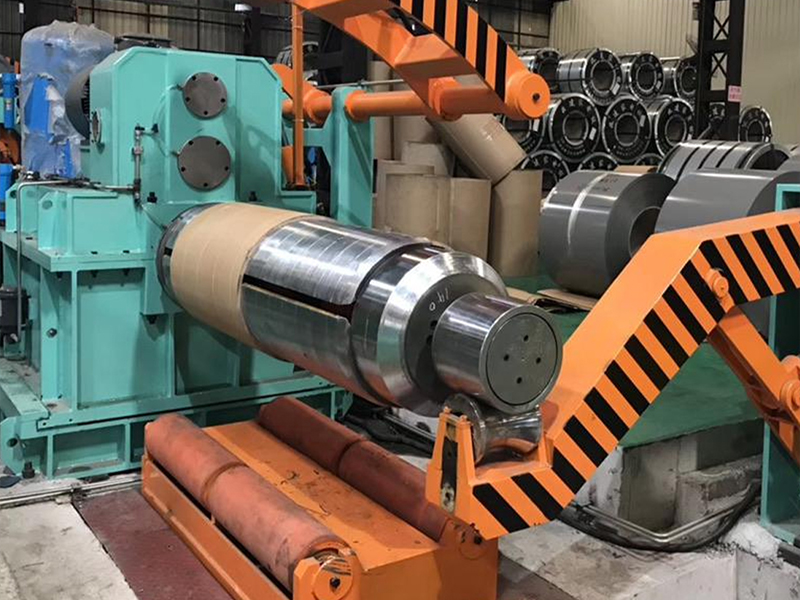

This slitting line isa special equipment to slit silicon steel sheet into strips.
Features:
Globally advanced tensile shearing method is adopted for thisline.Decoiling,rewinding,slitting,tensioning,loading and unloading of the coil are all hydraulic driven to ensure high efficiency andlabor saving.
Adjustable tensioning enables precise rewinding ofthecoil.
Up-to-date PLC with logic control function increases stability and reliablity of the whole system.
Adjustable slitting speed is available.Decoiler,slitter and rewinder are all controlled by imported speed controllers to realize speed synchronization ofthe whole line. Automatic coil feeding function can be optional.
Technical Specification:
| STL(05)-1000/80 | STL(05)-1000/120 | STL(10)-1250/120 | STL(10)-1250/150 | |
| nner diameter of coil | φ500mm | φ500~610mm | ||
| Width of coil | 700~1000mm | 1250mm | ||
| Weight of coil | 5t | 10t | ||
| Strip thickness | 0.18~0.5mm | 0.18~0.5mm | ||
| Strip width | 40~1000mm | 40~1250mm | ||
| Max.shearing speed | 80m/min | 120m/min | 120m/min | 150m/min |
| Strip burr | <0.02mm | <0.02mm | ||
| Max.nunmber of strips | 10 | 10 | ||
| Straightness deviation of each edge | ≤0.02mm/2m | ≤0.02mm/2m | ||
| Strip width accuracy | ±0.1mm | ±0.1mm | ||
| Installed power | 54kW | 87kW | 87kW | 100kW |
| Outline dimension(LxWxH) | 12×6.5×2.2m | 13.5×7.9×2.5m | 10.8×5.8×2.0m | 12×56.5×2.2m |
