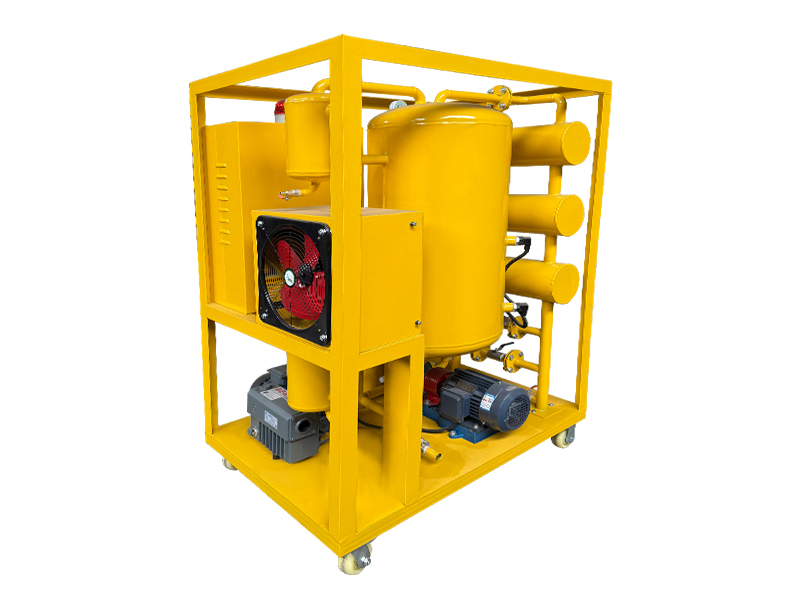

Movable High Vacuum Transformer Insulation Oil Filter Machine

Item
Name of Parameter
Model/Unit
ZJA6BY(6000L/h)
ZJA9BY(9000L/h)
ZJA12BY(12000L/h)
ZJA18BY(18000L/h)
Technical parameter of the equipment
Nominal flow capacity
L/min
100
150
200
300
Limit vacuity
Pa
≤2
Working vacuity
Pa
≤30
Working pressure
Mpa
≤0.5
Working temperature of oil
C
45~65
Working power
(380V-50Hz) 3Phase 4Wires,or as per buyer’s option
Total electric power
KW
70
100
150
200
Pipe diameter of oil outlet/inlet
DN
32/32
40/40
50/50
65/65
Size
CM
250
250
280
345
CM
195
195
215
260
CM
27…

Category: Transformer Active Part

SKU: MHVTI-127

Description
Additional information

Description

Item	Name of Parameter	Model/Unit	ZJA6BY(6000L/h)	ZJA9BY(9000L/h)	ZJA12BY(12000L/h)	ZJA18BY(18000L/h)
Technical parameter of the equipment	Nominal flow capacity	L/min	100	150	200	300
	Limit vacuity	Pa	≤2
	Working vacuity	Pa	≤30
	Working pressure	Mpa	≤0.5
	Working temperature of oil	C	45~65
	Working power		(380V-50Hz) 3Phase 4Wires,or as per buyer’s option
	Total electric power	KW	70	100	150	200
	Pipe diameter of oil outlet/inlet	DN	32/32	40/40	50/50	65/65
	Size	CM	250	250	280	345
		CM	195	195	215	260
		CM	270	270	300	300
	Weight	Kg	2200	3000	3800	4500
Oil treatment index	Oil breakdown voltage	KV	≥75(Spherical Electrodes)
	Water content	ppm	≤3
	Air content	%	≤0.1
	Filtering accuracy	μm	0.5
	Granularity		(100ml Oil Sample)5~50μm≤500 Particles

微信截图_20250417144413
