Description

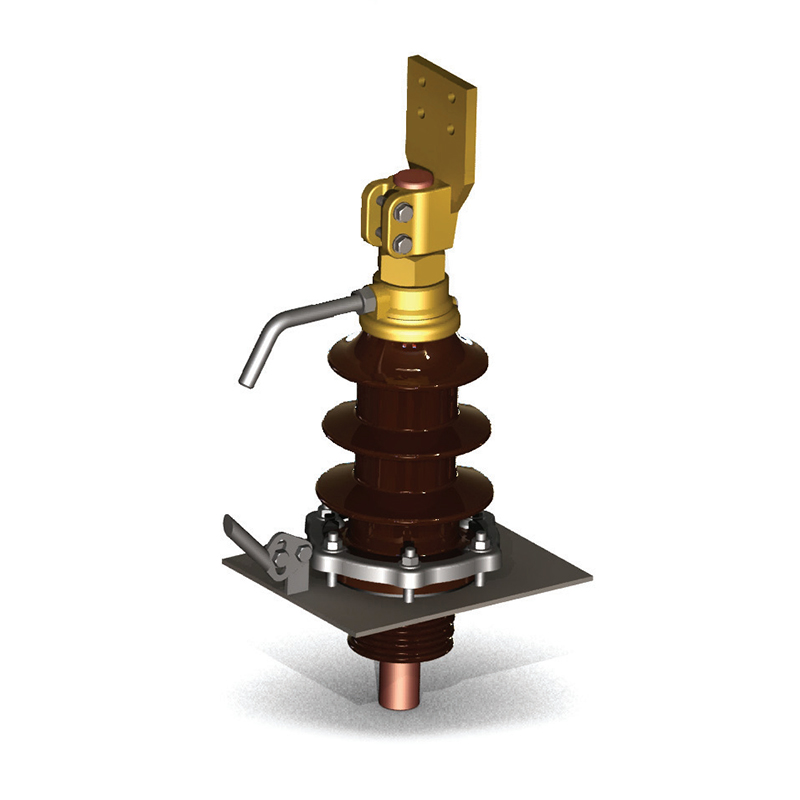

The Threaded Bushings for voltage of 3kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The barriers and spacers are enclosed in a skirted porcelain shell that is filled with oil. Condenser bushings are similar except that the central rod is wound with alternating layers of insulation and foil. This results in a path from the conductor to the case consisting of a series of condensers. The layers are designed to provide an approximately equal voltage drop between each condenser. In some condenser bushings, the whole bushing is enclosed in a skirted porcelain shell. Other types have only the exposed part of the bushing enclosed in the porcelain shell.
1.Material: porcelain insulator
2.Glaze color: Brown
3.Rated voltage: 3KV
4.Rated current: 250-630A
5.Standard: DIN
Our Advantage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched

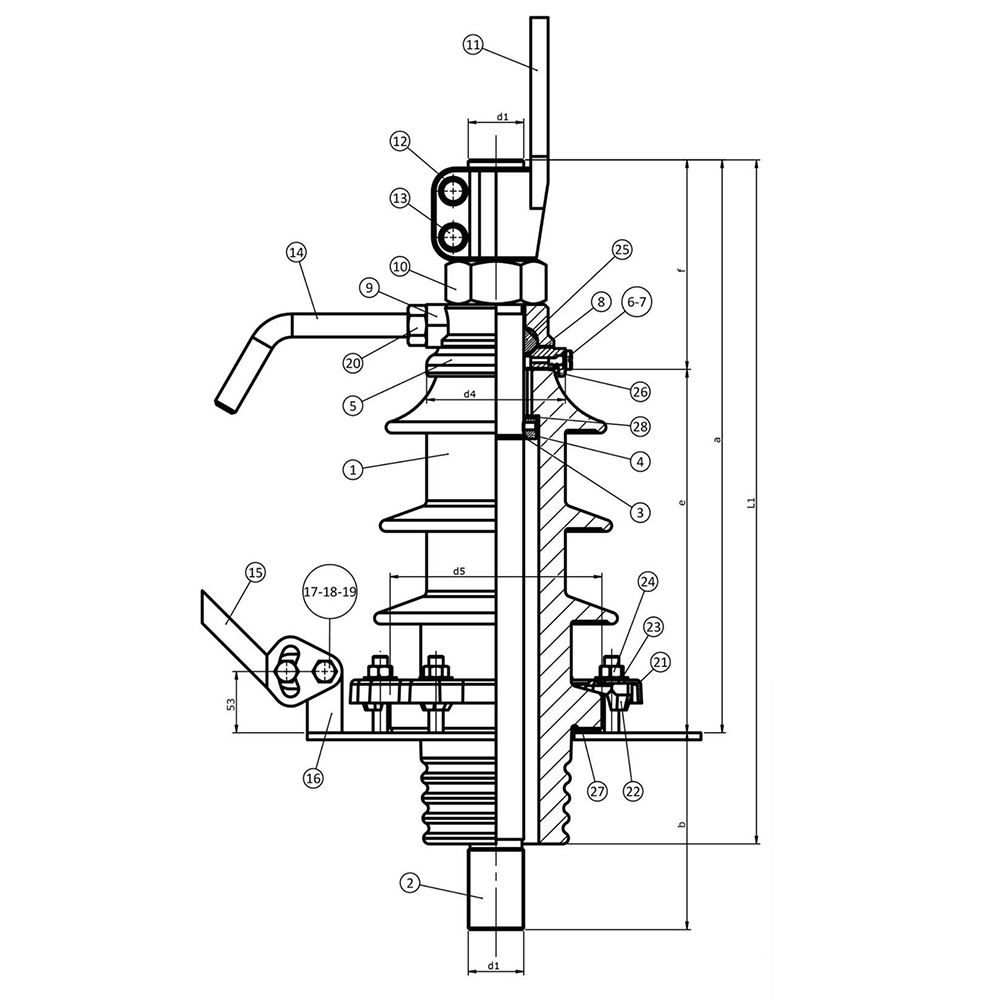

| Pos. No. |
Description | Material | 250A Pcs. |
630A Pcs. |
| 12 | Arcing horn holder | A2 | 1 | 1 |
| 13 | Hexagon nut | A2 | 3 | 3 |
| 14 | Spring Lock Washer | A2 | 2 | 2 |
| 15 | Flangering | Al | 1 | 1 |
| 16 | Press bit | G-ZnA16Cul | 4 | 6 |
| 17 | Washer | A2 | 4 | 6 |
| 18 | Hexagon nut | A2 | 4 | 6 |
| 19 | Gasket J | NBR | 1 | 1 |
| 20 | Flat gasket N | NBR | 1 | 1 |
| 21 | Gasket 0 | Pressspan | 1 | 1 |
| Type | a mm |
b mm |
d1 | d3 mm |
d4 mm |
d5 mm |
e mm |
f mm |
I1 mm |
Weight kg |
| DT 10 NF 1000 | 455 | 158 | M30x2 | 110 | 100 | 163 | 239 | 148 | 541 | 152 |
| DT 20 NF 1000 | 530 | 168 | 110 | 100 | 163 | 314 | 148 | 626 | 182 | |
| DT 30 NF 1000 | 635 | 198 | 110 | 100 | 163 | 419 | 148 | 756 | 219 | |
| DT 10 NF 2000 | 530 | 158 | M42x3 | 135 | 120 | 183 | 239 | 178 | 616 | 249 |
| DT 20 NF 2000 | 605 | 168 | 135 | 120 | 183 | 314 | 178 | 701 | 29 | |
| DT 30 NF 2000 | 710 | 198 | 135 | 120 | 183 | 419 | 178 | 831 | 347 | |
| DT 10 NF 3150 | 560 | 158 | M48x3 | 135 | 120 | 183 | 239 | 183 | 646 | 285 |
| DT 20 NF 3150 | 635 | 168 | 135 | 120 | 183 | 314 | 183 | 731 | 326 | |
| DT 30 NF 3150 | 740 | 198 | 135 | 120 | 183 | 419 | 183 | 861 | 388 | |
| DT 52 NF 1000 | 725 | 253 | M30x2 | 135 | 120 | 183 | 509 | 148 | 901 | 352 |
| DT 52 NF 2000 | 800 | 253 | M42x3 | 135 | 120 | 183 | 509 | 178 | 976 | 449 |
| DT 52 NF 3150 | 830 | 253 | M48x3 | 135 | 120 | 183 | 509 | 183 | 1006 | 492 |
| Pos.
No. |
Description | Material | 10-30 NF 1000-3150 Pcs. |
52 NF 1000-3150 Pcs. |
| 1 | Unteres Funkenhorn | A2 | 1 | 1 |
| 2 | arcing horn holder | A2 | 1 | 1 |
| 3 | Spring Lock Washer | A2 | 2 | 2 |
| 4 | Hexagon screw | A2 | 2 | 2 |
| 5 | Hexagon nut | A2 | 2 | 2 |
| 6 | Hexagon nut | A2 | 1 | 1 |
| 7 | Flangering | Al | 1 | 1 |
| 8 | Press bit | G-ZnA16Cul | 6 | 6 |
| 9 | washer | A2 | 6 | 6 |
| 10 | Hexagon nut | A2 | 6 | 6 |
| 11 | Ring gasket J | NBR | 1 | 1 |
| 9 | Flat gasket M | NBR | 1 | 1 |
| 10 | Flat gasket N | NBR | 1 | 1 |
| 11 | gasket 0 | Pressspan | 1 | 1 |
