Description

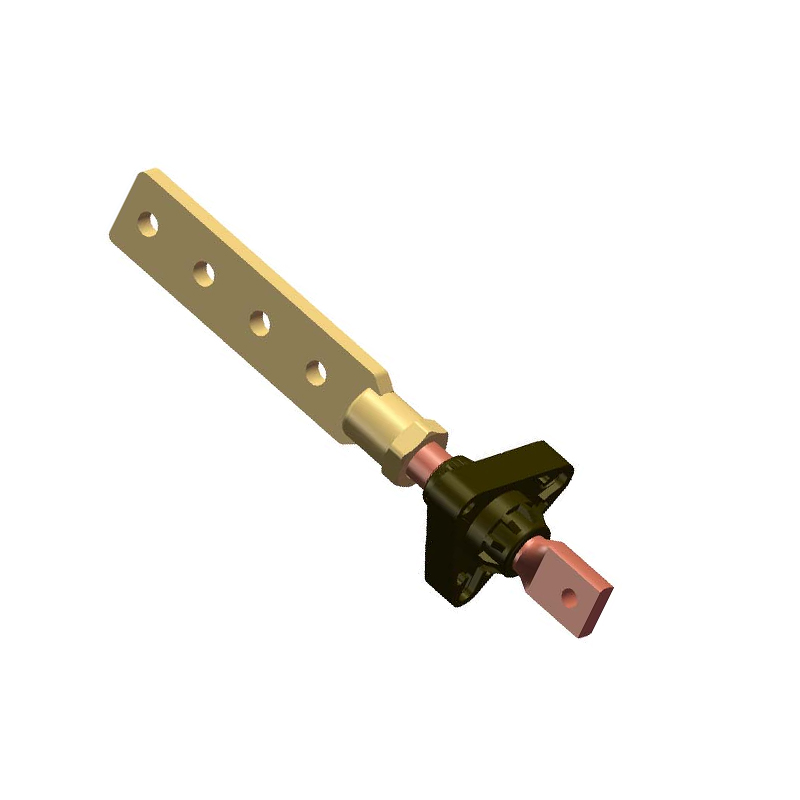

The Threaded Bushings for voltage of 1.2kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
Low-voltage transformers with separate leads normally have solid porcelain bushings. These bushings consist of high-grade porcelain cylinders through which the connections pass. The outside surface may be plain or have a series of corrugations or skirts to increase the surface leakage path to the metal case. When the conductors are brought to the transformers in lead-covered cables, the leads often enter through cable terminators. These terminators are similar to ordinary potheads and are attached to the transformer with the bushings inside the case.
1.Material: porcelain insulator
2.Glaze color: light gray
3.Rated voltage: 1.2KV BIL:30KV
4.Rated current: 833A
5.Standard: ANSI
Our Advantage
* High voltage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched

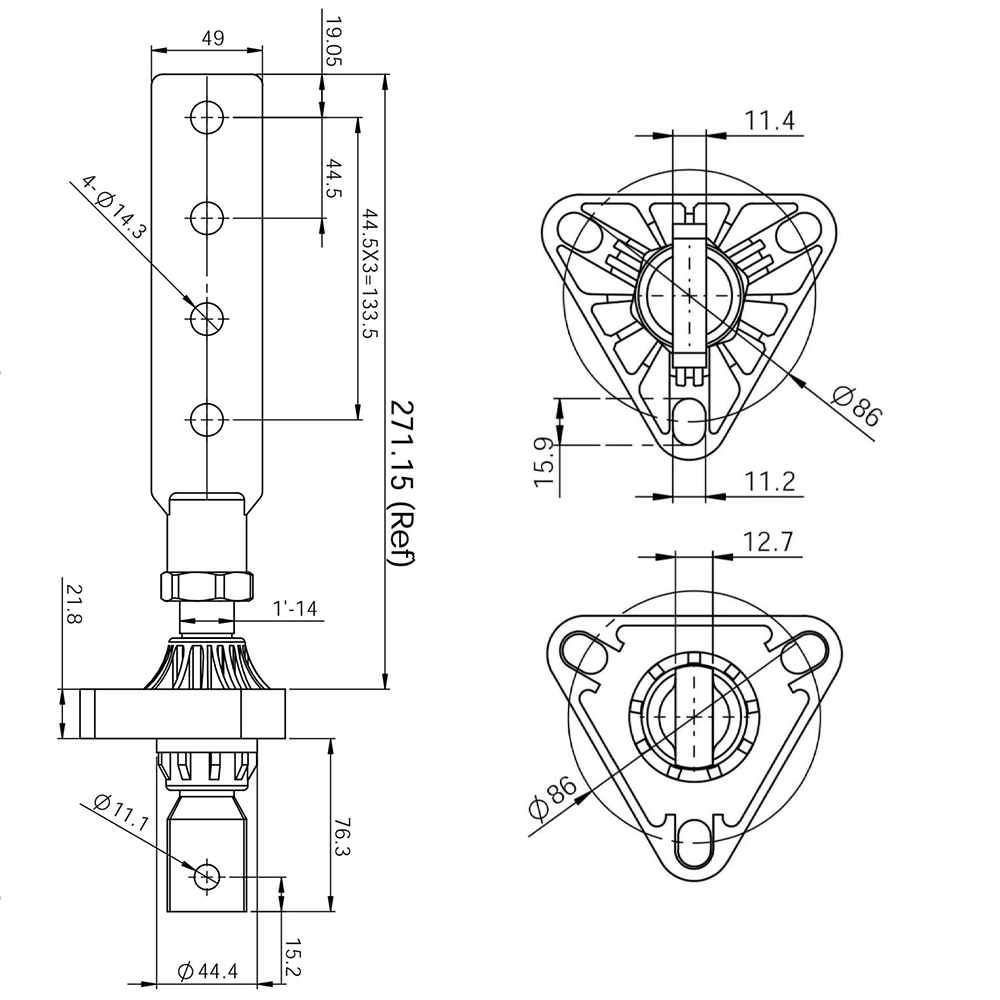

| ITEM | DESCRIPTION | QTY | MATERIAL | |||
| 1 | Copper Stem 630A(for Triangle) | 1 | Copper | |||
| 2 | Triangle (pa66) | 1 | Nylon 66 | |||
| 3 | Brass nut 0.625′-11 | 1 | Brass | |||
| 4 | 4 Hole Strip Spade(630A) | 1 | Brass Forging | |||
| 5 | flange gasket 60.45X47X6.7 | 1 | NBR | |||
